Air Circulator Plastic Parts Mould and Moulding Services | Renovator Appliances Ltd

Product Overview

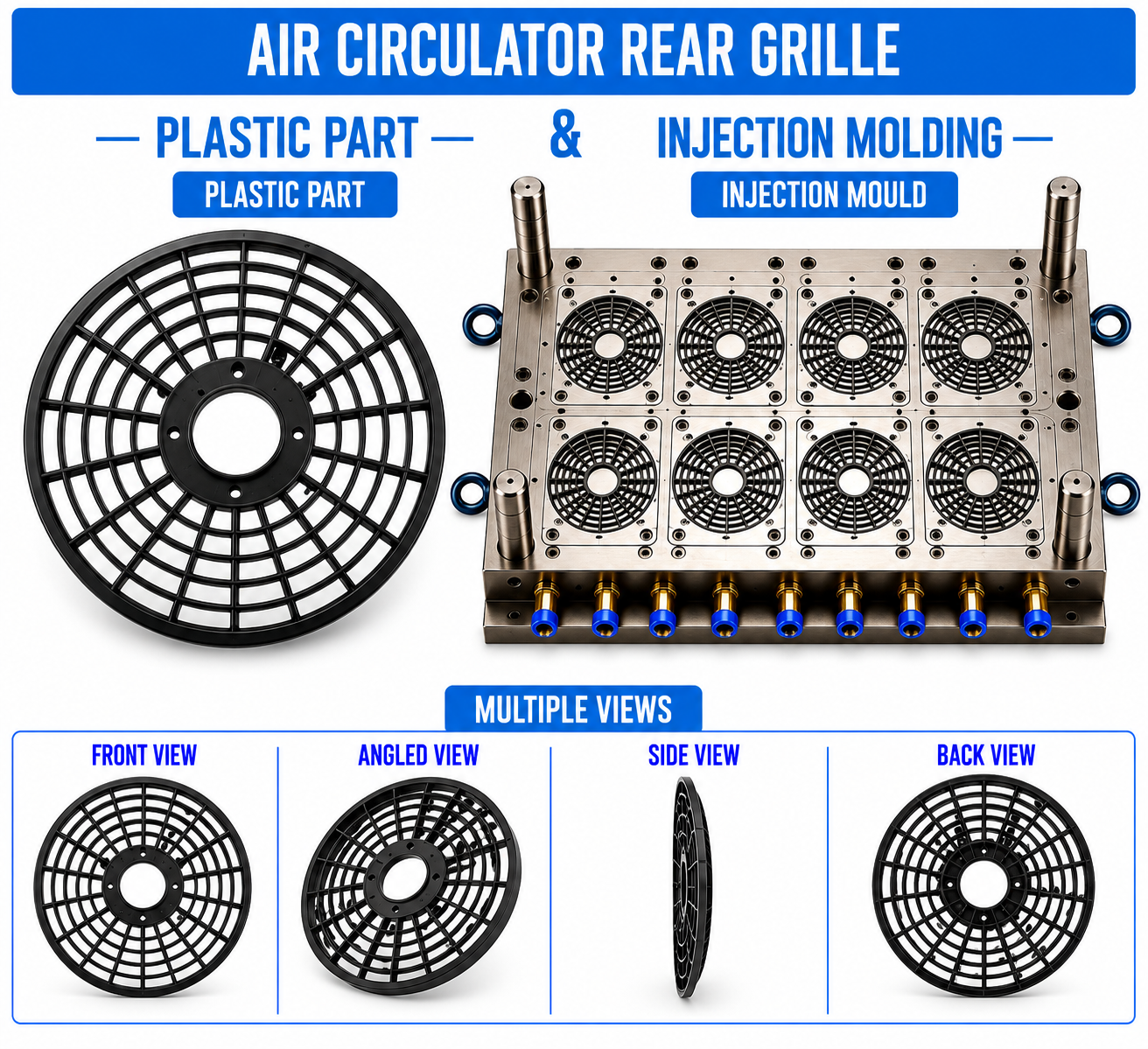

Renovator Appliances Ltd provides Air Circulator Plastic Parts Mould and Moulding Services for injection-moulded plastic components used in air circulator fans. The service covers application-specific parts such as front and rear guards, fan housings, motor covers, base components, control panels, knobs, handles, stands, airflow ducts, and other mouldable plastic parts used in air circulation equipment.

Each component is developed according to its functional position, airflow requirements, motor and fan dimensions, mounting arrangement, operating temperature, load conditions, and required assembly clearances. Precision injection moulding enables consistent dimensions, clean surface finish, accurate fastening features, and repeatable production for OEM and customized air circulator manufacturing.

Key Features

• Application-specific plastic parts for air circulator fan assemblies

• Precision injection moulding for repeatable component dimensions

• Accurate mounting bosses, holes, clips, ribs, and locating features

• Fan and motor clearance designed according to the assembly geometry

• Airflow openings and grille patterns optimized for the required application

• Controlled wall thickness to reduce warpage and sink marks

• Smooth edges and controlled surface finish

• Material selection according to strength, heat, impact, and environmental requirements

• Suitable for visible housings and internal structural plastic components

• Single-cavity or multi-cavity mould configurations according to production requirements

• Support for OEM, ODM, replacement, and customized plastic component manufacturing

Industrial Applications

Manufacturing Process

1. Product Design & Development

Each plastic component is developed according to the air circulator's overall assembly, fan diameter, motor dimensions, airflow direction, mounting arrangement, required clearances, and operating conditions. For visible parts, appearance, texture, parting-line placement, and surface finish are also considered.

2. Plastic Mould Design

The mould is designed according to the component geometry, wall thickness, ribs, bosses, snap-fits, grille openings, mounting features, and required draft angles. Gate locations, cooling channels, venting, ejection, and parting lines are optimized to achieve consistent filling and reduce warpage, sink marks, weld-line issues, and flash.

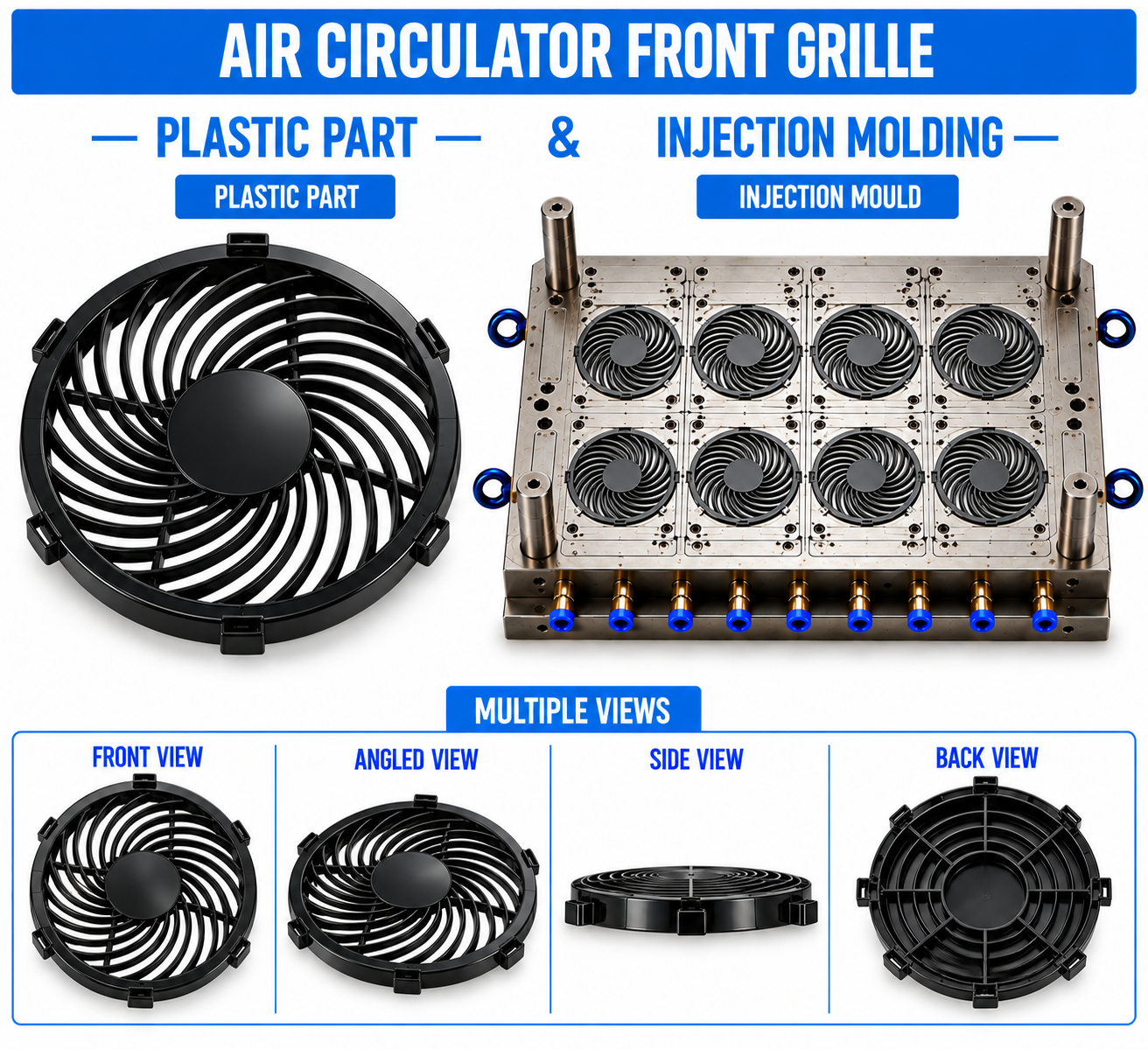

For fan guards and airflow-related components, the mould design also considers the opening pattern, rib thickness, airflow area, structural rigidity, and dimensional stability of the finished part.

3. Mould Manufacturing

Moulds can be manufactured using P20, H13, or S136 Steel, depending on the plastic material, production volume, surface-finish requirements, component geometry, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are used to achieve the required cavity dimensions.

4. Injection Moulding

Selected plastic materials are processed using controlled injection pressure, melt temperature, holding pressure, cooling time, and cycle parameters. Process conditions are optimized separately for different component geometries to maintain dimensional accuracy and minimize defects.

5. Finishing & Assembly Preparation

Moulded parts are inspected for flash, gate marks, sink marks, short shots, deformation, and surface defects. Gates are trimmed where required, and mounting holes, clips, snap-fits, grille openings, and other functional features are checked before assembly.

6. Quality Inspection

Finished parts are checked against the required drawings, CAD data, samples, or approved specifications. Critical checks may include overall dimensions, wall thickness, mounting positions, fan clearance, grille openings, boss dimensions, snap-fit engagement, and assembly fitment.

Raw Materials

The final plastic grade is selected according to the individual component's mechanical load, temperature exposure, impact requirements, electrical environment, appearance, and applicable product-safety requirements.

Quality Control

• Dimensional inspection against approved drawings or CAD data

• Fan and motor clearance verification

• Mounting-hole and boss-position inspection

• Grille opening and airflow-area inspection

• Wall-thickness consistency checks

• Snap-fit and clip engagement testing

• Warpage and deformation inspection

• Flash and gate-mark inspection

• Surface-finish and appearance inspection

• Assembly fitment verification

• Functional clearance testing for moving components

• Material and process consistency monitoring

• Batch-to-batch dimensional quality control

Buyer Guide

When sourcing Air Circulator Plastic Parts Mould and Moulding Services, buyers should provide the required component drawings, 3D CAD files, physical samples, plastic grade, surface-finish requirements, production quantity, and assembly information.

For fan guards, housings, and airflow components, fan diameter, blade clearance, airflow direction, grille opening requirements, and motor dimensions should be considered during mould development. For structural components, mounting loads, screw locations, snap-fits, ribs, and repeated assembly requirements should be specified.

The mould configuration can then be selected according to component size, production volume, machine capacity, cycle time, and required production economics.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd uses controlled injection moulding processes for manufacturing air circulator plastic components with consistent dimensions, surface quality, and assembly fitment.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over cavity geometry, cooling, ejection, mould fitting, and production trials.

OEM & ODM Manufacturing

Customized plastic parts can be developed from OEM drawings, CAD models, physical samples, or application-specific functional requirements.

Quality Assurance

Dimensional inspection, visual checks, material control, and assembly verification help maintain consistent component quality across production batches.

Cost-Effective Manufacturing

Optimized mould design, cavity configuration, material selection, and injection parameters support economical production for development quantities as well as higher-volume OEM requirements.

Frequently Asked Questions

1. Which plastic parts of an air circulator can be injection moulded?

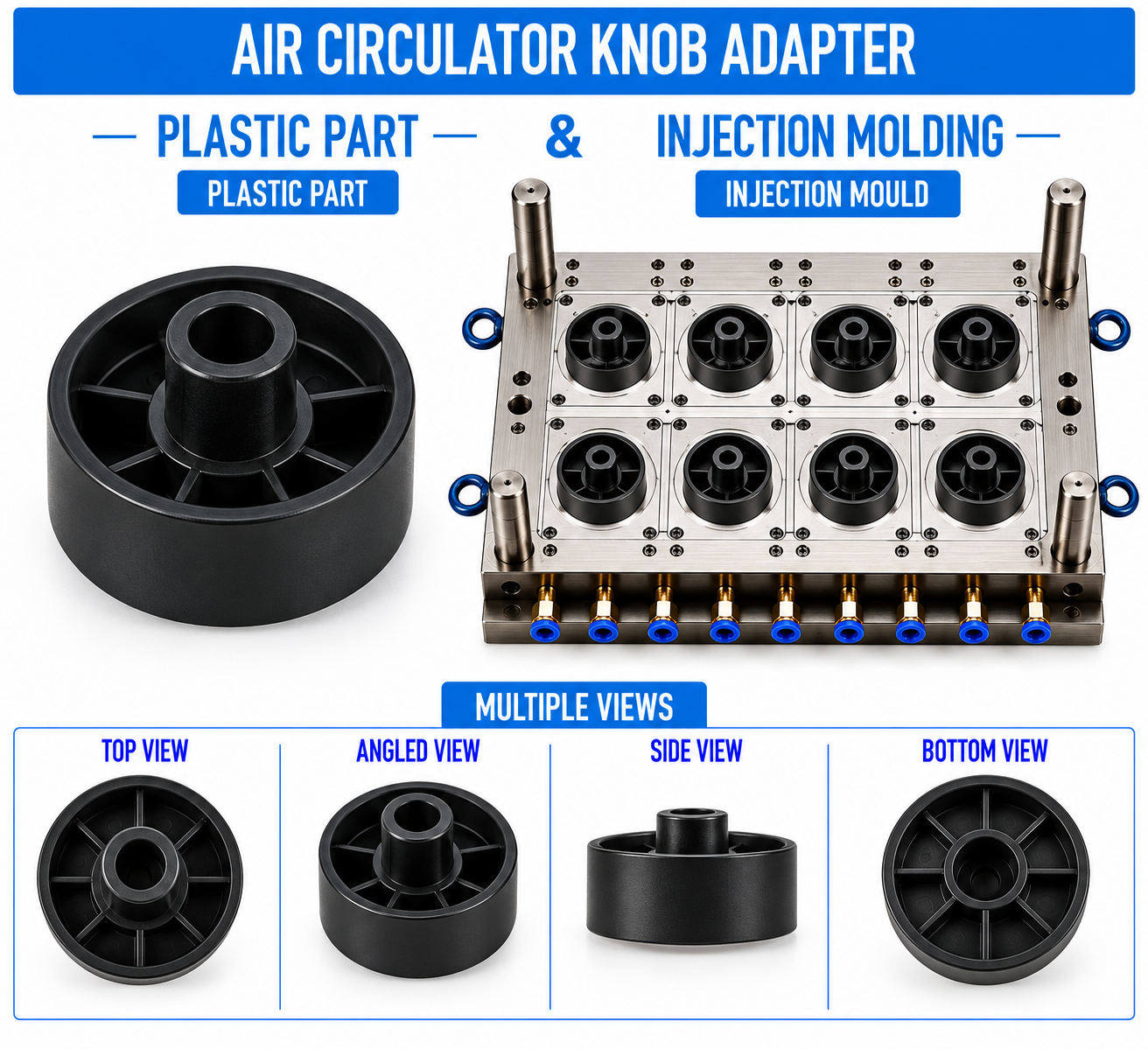

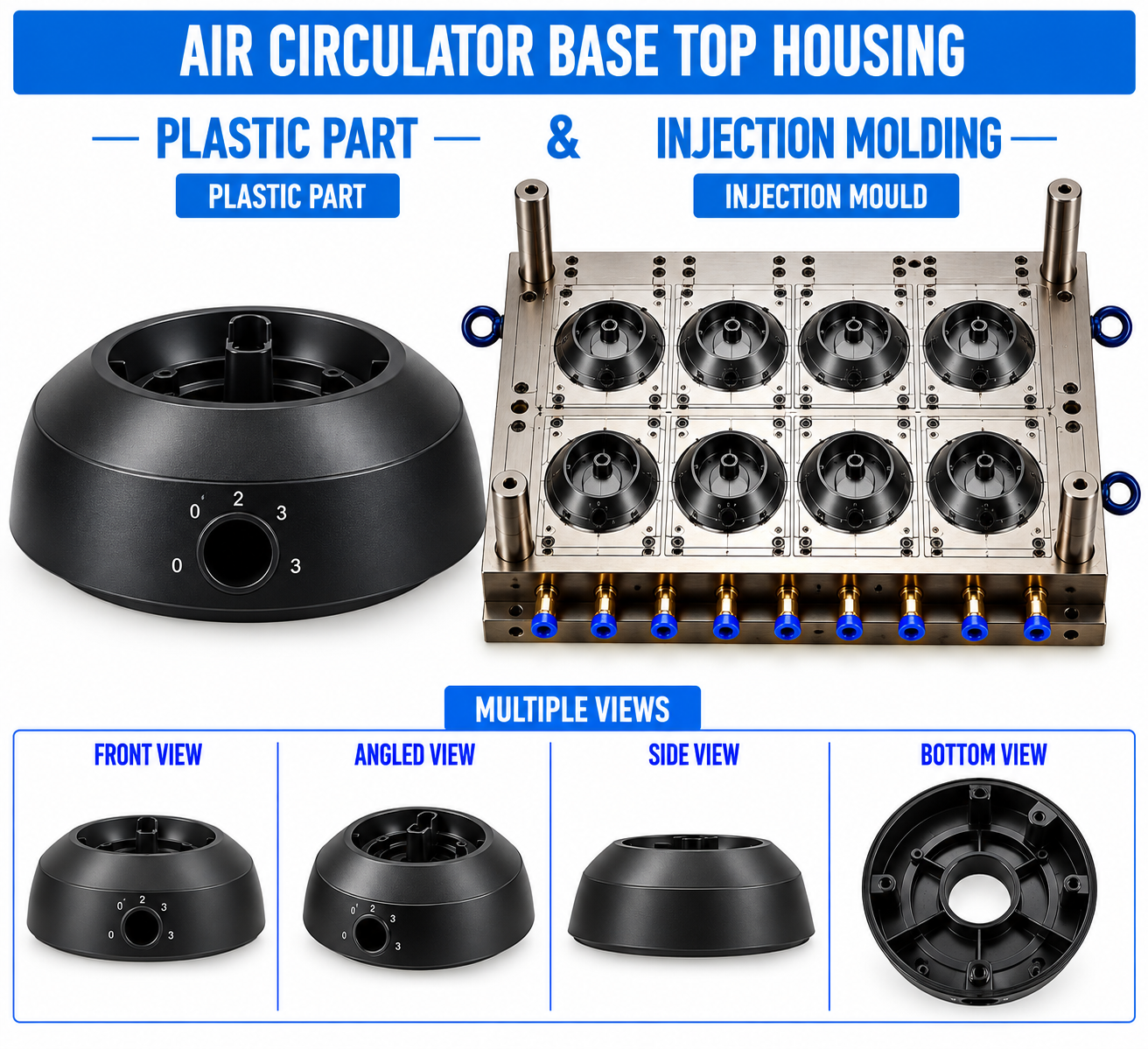

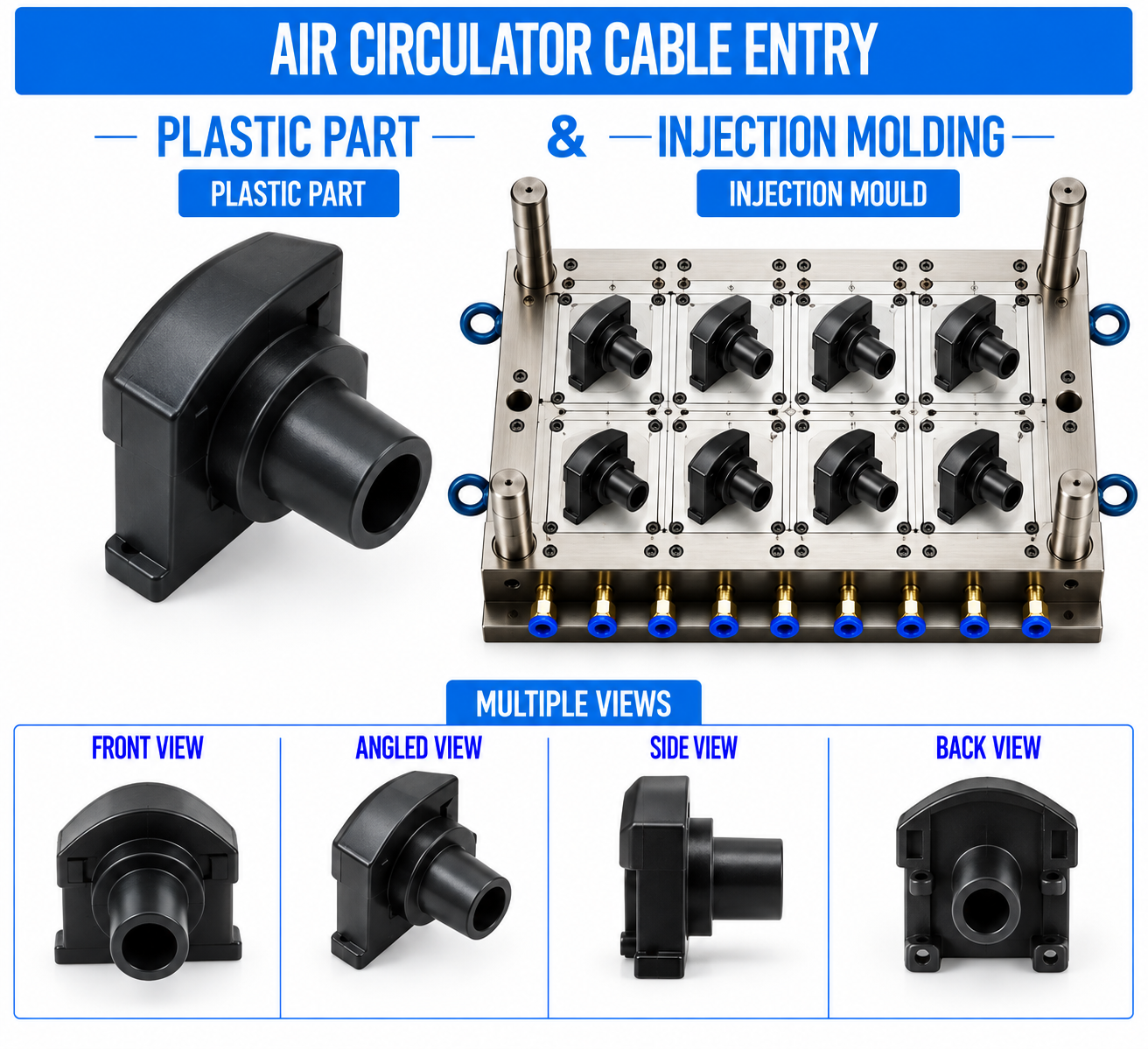

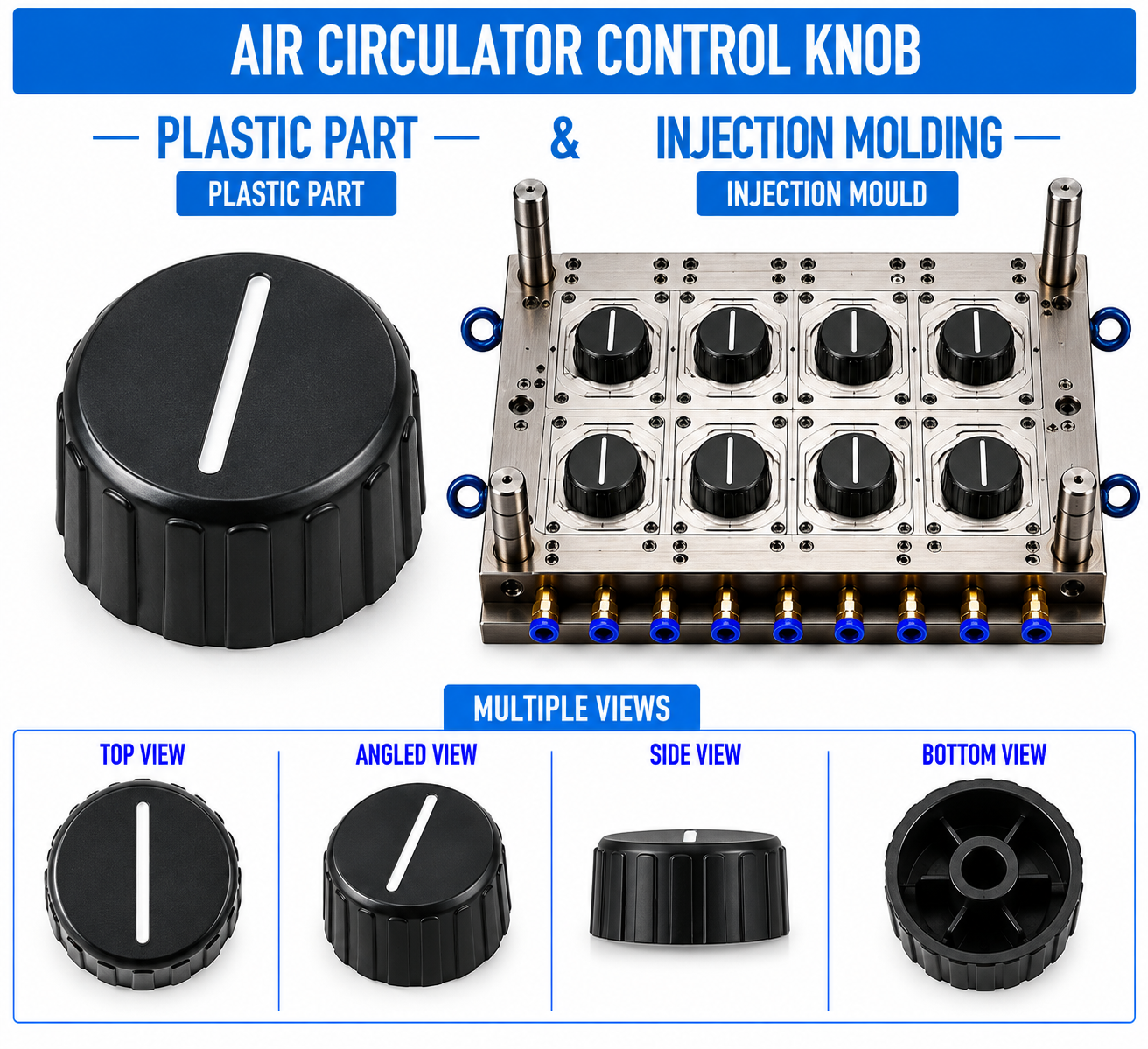

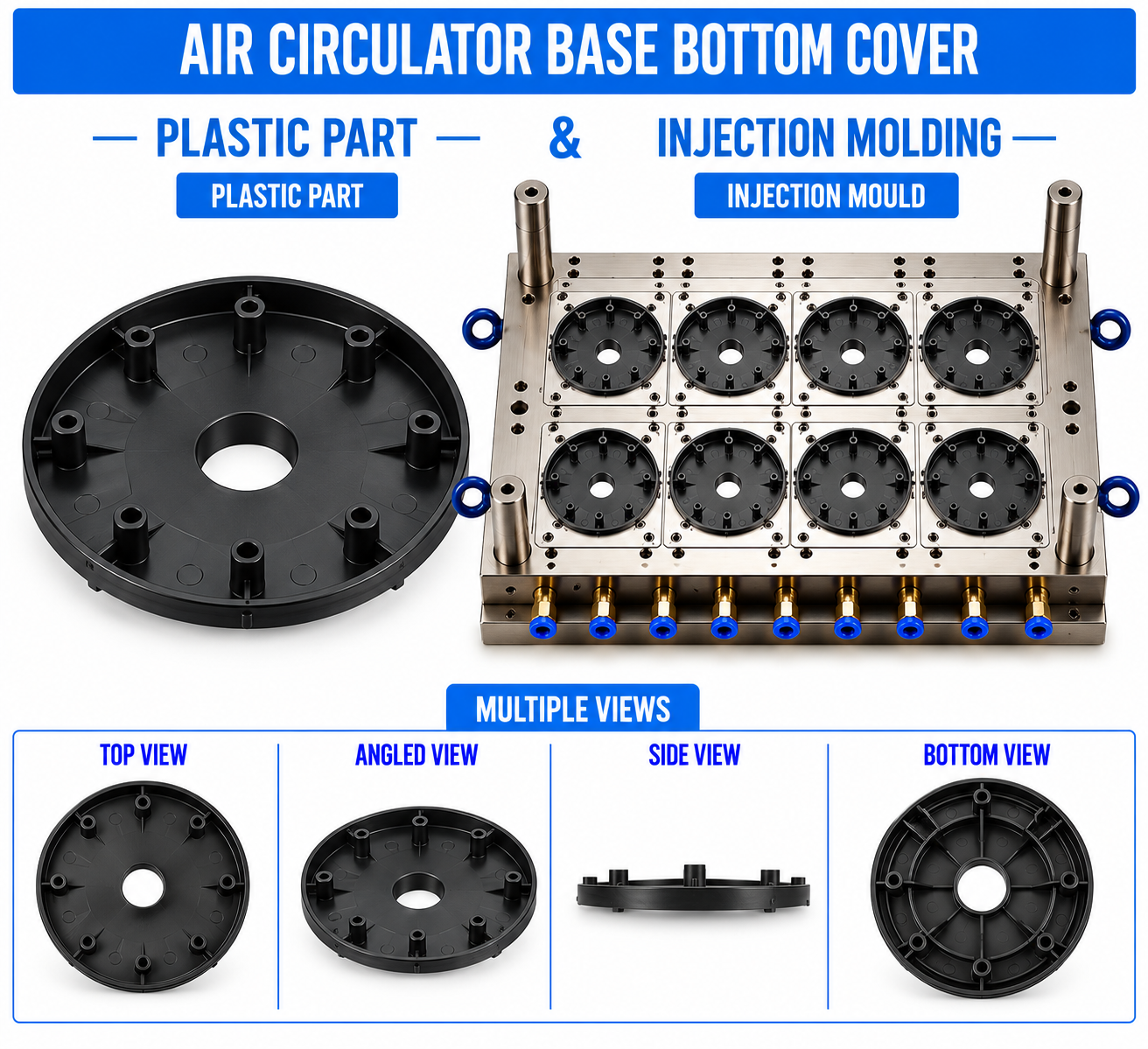

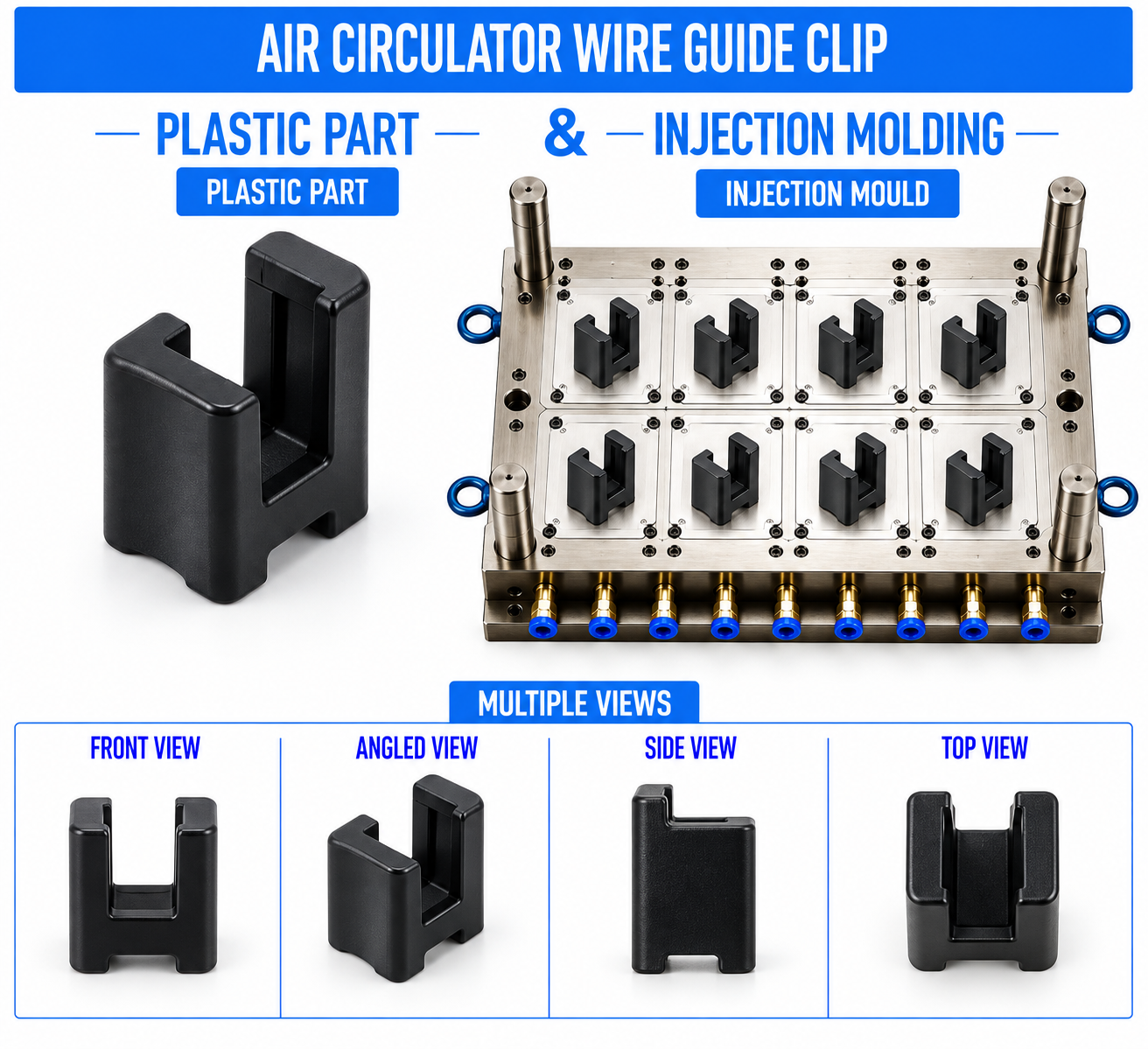

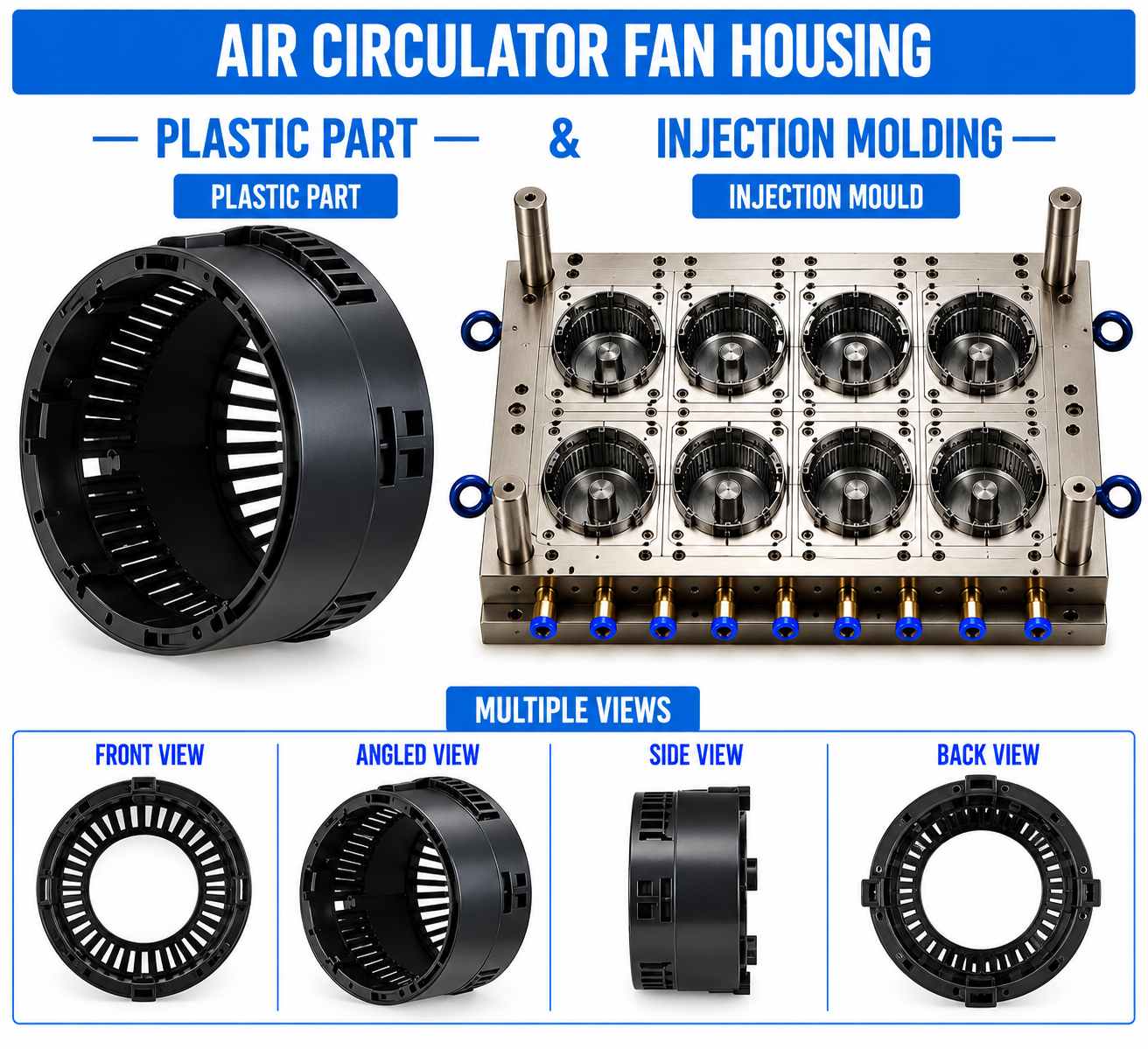

Common mouldable parts include fan guards, housings, motor covers, bases, stands, control panels, knobs, handles, cable-management components, airflow-related parts, and selected internal brackets.

2. Can different air circulator plastic parts be manufactured using separate moulds?

Yes. Components with different geometries and functional requirements normally require individually designed mould cavities or moulds.

3. Which plastic material is suitable for air circulator components?

PP, ABS, HIPS, PC+ABS, Nylon, Glass-Filled Nylon, and suitable flame-retardant plastics may be considered depending on the component's temperature, mechanical, impact, electrical, and appearance requirements.

4. Can air circulator plastic parts be manufactured according to an existing sample?

Yes. An existing component sample, 2D drawing, 3D CAD model, or complete assembly can be used as a reference for mould development and fitment validation.

5. Can multi-cavity moulds be used for air circulator plastic parts?

Yes. Multi-cavity moulds can be considered for suitable component sizes and production volumes, with the final configuration depending on part geometry, machine capacity, cycle requirements, tooling cost, and required output.
