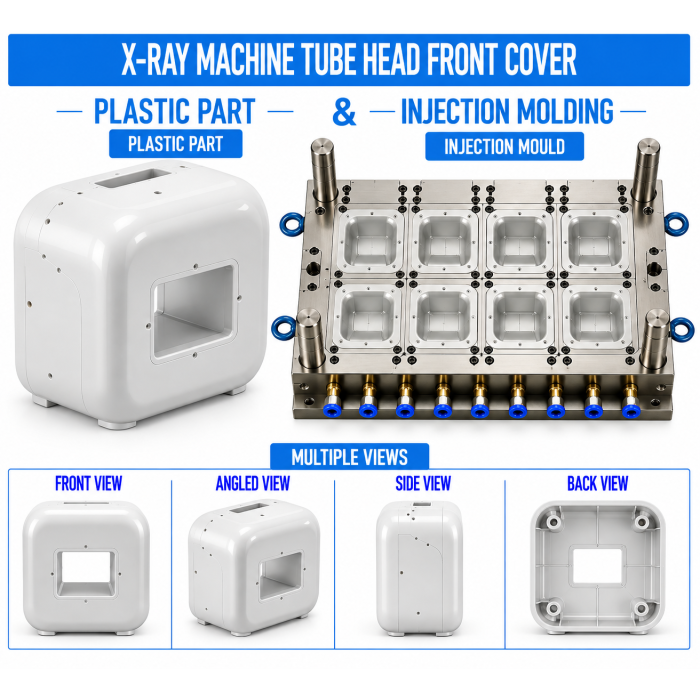

X-Ray Machine Plastic Tube Head Front Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Tube Head Front Covers using precision Plastic Injection Moulding and custom mould manufacturing processes. The tube head front cover is a protective enclosure component positioned on the front section of the X-ray tube head assembly, providing a controlled outer profile around the front-facing functional area.

The cover is designed according to the tube head geometry, front assembly interface, required clearances, mounting arrangement, ventilation or access features, and surrounding enclosure structure. Accurate dimensional control is important for proper alignment with the tube head body, consistent assembly, and protection of internal components from accidental contact and environmental exposure.

Key Features

• Application-specific tube head front-cover geometry

• Precision fit with the tube head enclosure

• Accurate mounting and locating features

• Controlled front profile and wall thickness

• Clearance for required front-facing functional areas

• Smooth and uniform external surface

• Reinforced mounting and fastening points

• Consistent dimensional stability

• Suitable openings and interfaces where specified

• Clean cosmetic finish for medical equipment enclosures

• Customizable according to X-ray equipment design

• Suitable for OEM and high-volume production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The front cover is developed from the tube head assembly geometry, front-facing interface dimensions, mounting locations, adjacent housing profiles, and required internal clearances. The design also considers component access, assembly sequence, fastening points, cable or connector clearance where applicable, and the required external surface profile.

2. Plastic Mould Design

The injection mould is designed to reproduce the curved or contoured front-cover profile, mounting bosses, locating features, ribs, openings, and fastening interfaces accurately. Parting-line placement, draft angles, gate position, cooling channels, shrinkage allowance, and ejection are optimized to control warpage across the cover's larger surfaces.

3. Mould Manufacturing

The mould is manufactured using precision machining and mould-making processes. P20, H13, S136, or another suitable mould steel can be selected according to production volume, plastic material, surface-finish requirements, and expected mould life. Critical cavity dimensions and mounting features are inspected before production trials.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Injection speed, pressure, melt temperature, holding pressure, and cooling time are adjusted according to the selected material and cover geometry. Balanced filling and controlled cooling help maintain surface quality, dimensional accuracy, and reduced warpage.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. Visible surfaces are checked for moulding defects, sink marks, flow marks, and other cosmetic imperfections. Mounting interfaces and openings are cleaned and prepared for assembly with the tube head enclosure.

6. Quality Inspection

Finished front covers are inspected for overall dimensions, profile accuracy, wall thickness, mounting-hole positions, locating features, opening dimensions, flatness, warpage, surface finish, flash, and fitment with the mating tube head assembly. Functional and assembly checks are performed according to the customer's equipment specifications.

Raw Materials

Quality Control

Renovator Appliances Ltd applies dimensional, visual, and assembly inspections to maintain consistent front-cover quality. Key inspection areas include:

• Overall cover dimensions

• Front profile and contour

• Wall thickness

• Mounting-hole location

• Boss dimensions

• Locating-feature accuracy

• Opening dimensions

• Housing mating interface

• Warpage and flatness

• Surface finish

• Flash and burr inspection

• Sink marks and moulding defects

• Parting-line condition

• Assembly fitment

• Clearance from internal components

• Material compliance with specified equipment requirements

Buyer Guide

When sourcing an X-Ray Machine Plastic Tube Head Front Cover, buyers should provide the component drawing or CAD model, tube head dimensions, mating housing profile, mounting-hole locations, required openings, plastic material specification, surface-finish requirements, and production quantity.

The front cover should be evaluated as part of the complete tube head enclosure because alignment depends on the mating housing, mounting structure, and internal clearances. For medical equipment applications, the final material and component design should also be validated against the applicable equipment, electrical, thermal, mechanical, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

We provide controlled Plastic Injection Moulding for producing large and detailed enclosure components with consistent dimensions and surface quality.

In-House Mould Manufacturing

Our mould manufacturing capabilities support complex front-cover profiles, mounting bosses, locating features, ribs, openings, and cosmetic surfaces.

OEM & ODM Manufacturing

We support OEM and ODM production from component development and mould design through mould manufacturing, injection moulding, inspection, and production supply.

Quality Assurance

Critical dimensions, mounting interfaces, front-cover profile, surface finish, warpage, and assembly fitment are inspected according to customer specifications.

Cost-Effective Manufacturing

Optimized mould design, appropriate engineering plastics, and controlled injection moulding processes support efficient production of repeatable tube head enclosure components.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Tube Head Front Cover?

It is a moulded plastic enclosure component used on the front section of an X-ray tube head assembly to provide a controlled protective and finished outer housing interface.

2. Which plastic materials can be used for the front cover?

ABS, PC+ABS, PC, and specified flame-retardant grades can be considered depending on the equipment design, mechanical requirements, thermal conditions, electrical requirements, and applicable specifications.

3. Can the front cover be manufactured according to an existing X-ray tube head?

Yes. The mould and moulded component can be developed according to customer-provided CAD data, engineering drawings, physical samples, or specified mating dimensions.

4. How is warpage controlled on a large front cover?

Mould design, balanced filling, appropriate gate placement, uniform wall thickness, cooling-channel layout, mould temperature, holding conditions, and controlled cooling are considered to maintain dimensional stability.

5. Can Renovator Appliances Ltd manufacture both the mould and the plastic front cover?

Yes. Renovator Appliances Ltd can provide the complete service from component development and mould design to mould manufacturing, Plastic Injection Moulding, quality inspection, and OEM/ODM production.
