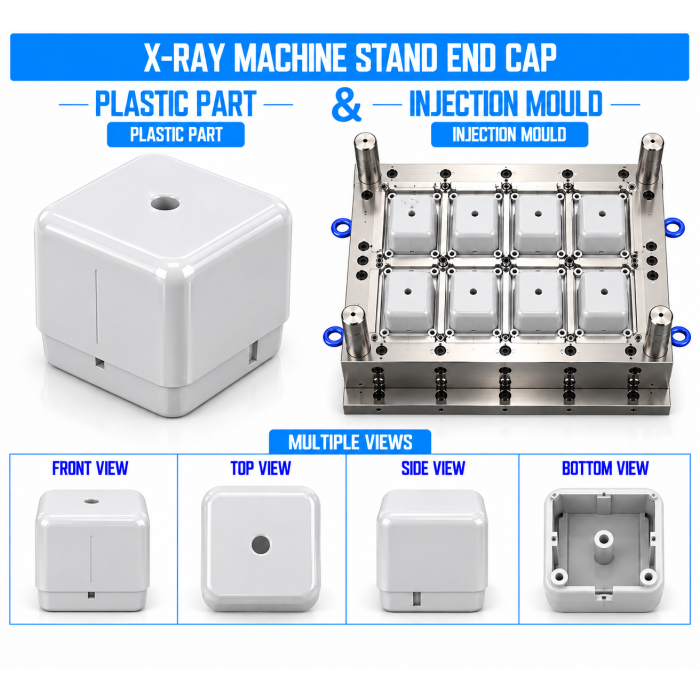

X-Ray Machine Plastic Stand End Cap Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Stand End Cap components used to close and finish exposed ends of selected stand profiles, rails, covers, or structural enclosure sections of X-ray equipment. The end cap provides a finished external appearance while helping protect designated internal areas from dust, accidental contact, and handling exposure.

The mould is developed according to the stand profile, end-section dimensions, cap depth, attachment method, adjoining components, and required internal clearance. The X-Ray Machine Plastic Stand End Cap can be customized with locating tabs, snap-fit clips, retaining lips, screw bosses, cable openings, access provisions, and reinforcing ribs according to the equipment design.

Key Features

• Precision injection moulding for consistent stand end-cap production

• Customized profile according to the stand or rail end geometry

• Accurate fit with adjoining stand components

• Protective closure for selected exposed stand ends

• Integrated locating tabs and alignment features

• Snap-fit clips, retaining lips, or screw mounting options

• Optional cable or access openings

• Reinforced fastening areas

• Controlled wall thickness for dimensional stability

• Smooth and cleanable exterior surface

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Stand End Cap is developed according to the customer's CAD drawing, 3D model, physical sample, or complete stand assembly. The design is reviewed for end-profile dimensions, cap depth, wall thickness, attachment method, adjoining component interfaces, internal clearance, and cable or service-access requirements.

The end-cap geometry is designed to provide secure retention without interfering with nearby moving, adjustable, or serviceable stand components.

2. Plastic Mould Design

The injection mould is designed around the stand-end profile, including locating tabs, retaining lips, snap-fits, screw bosses, ribs, and access openings where required. Parting lines, draft angles, gate locations, cooling channels, ejector arrangement, and shrinkage allowance are optimized for accurate and repeatable production.

Where the end cap has a long or irregular profile, mould filling and cooling are balanced to minimize warpage and maintain accurate fitment with the stand section.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production quantity, selected plastic material, expected mould life, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are used to achieve the required cavity geometry.

4. Injection Moulding

The selected plastic material is processed through controlled injection moulding parameters. Injection pressure, melt temperature, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and end-cap geometry.

Controlled processing helps maintain profile accuracy, retention-feature dimensions, surface quality, and consistent fitment with the stand assembly.

5. Finishing & Assembly Preparation

After moulding, the end caps are inspected for flash, gate marks, sharp edges, sink marks, and surface imperfections. Any unwanted edges are removed where required.

The components are prepared for installation using the specified snap-fits, clips, screws, brackets, or other retaining features.

6. Quality Inspection

Finished X-Ray Machine Plastic Stand End Cap components are checked for overall dimensions, end-profile accuracy, cap depth, mounting features, retention, internal clearance, surface finish, and fitment with the corresponding stand assembly.

Trial assembly can be performed to verify proper seating, alignment, retention, and clearance from adjoining components.

Raw Materials

The final plastic grade should be selected according to impact exposure, operating temperature, dimensional stability, cleaning conditions, mechanical requirements, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, material, and assembly checks during mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall end-cap dimensions

• Stand-profile mating accuracy

• Cap depth and insertion dimensions

• Locating-tab dimensions

• Snap-fit and clip accuracy

• Retaining-lip dimensions

• Mounting-hole and boss position

• Cable or access opening dimensions where applicable

• Internal clearance

• Wall-thickness consistency

• Flatness and profile accuracy

• Warpage and deformation inspection

• Sink-mark inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Trial assembly with stand components

• Retention and seating verification

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Stand End Cap Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, or complete stand assembly details. Important requirements include:

• Stand or rail end-profile dimensions

• Cap length and depth

• Required wall thickness

• Mounting arrangement

• Snap-fit, clip, or screw requirements

• Locating-feature requirements

• Internal clearance

• Cable-opening requirements where applicable

• Service-access requirements

• Adjoining component dimensions

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the plastic stand end cap should be treated as a mechanical/protective enclosure component unless specifically engineered and validated for another function. It should not be assumed to provide radiation shielding or structural load-bearing capacity without appropriate engineering, testing, and regulatory validation.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for precision enclosure and finishing components requiring accurate dimensions and repeatable assembly fitment.

In-House Mould Manufacturing

In-house mould manufacturing provides control over end-cap geometry, mating profiles, mounting features, cooling, ejection, and surface-finish requirements.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Stand End Cap moulds and moulded components can be developed according to customer drawings, samples, stand profiles, and equipment specifications.

Quality Assurance

Dimensional inspection, material verification, surface checks, and trial assembly help maintain consistent end-cap quality and fitment.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototypes, development quantities, and regular OEM production.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Stand End Cap?

It is a moulded plastic component designed to close selected exposed ends of X-ray machine stand profiles, rails, or enclosure sections while providing a finished protective surface.

2. Can the end cap be customized for a specific stand profile?

Yes. The end profile, cap depth, mounting arrangement, locating features, retaining clips, and internal clearance can be customized according to the stand design.

3. Can the end cap include snap-fit or screw mounting features?

Yes. Snap-fits, retaining lips, clips, locating tabs, screw bosses, and other attachment features can be incorporated according to the assembly requirements.

4. Which plastic materials can be used for the stand end cap?

ABS, PC+ABS, PC, PP, PBT, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to mechanical, thermal, dimensional, and application requirements.

5. Can Renovator manufacture both the mould and moulded stand end cap?

Yes. Renovator Appliances Ltd provides mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Stand End Cap production, supporting OEM and ODM requirements.
