X-Ray Machine Plastic Stand Cable Channel Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

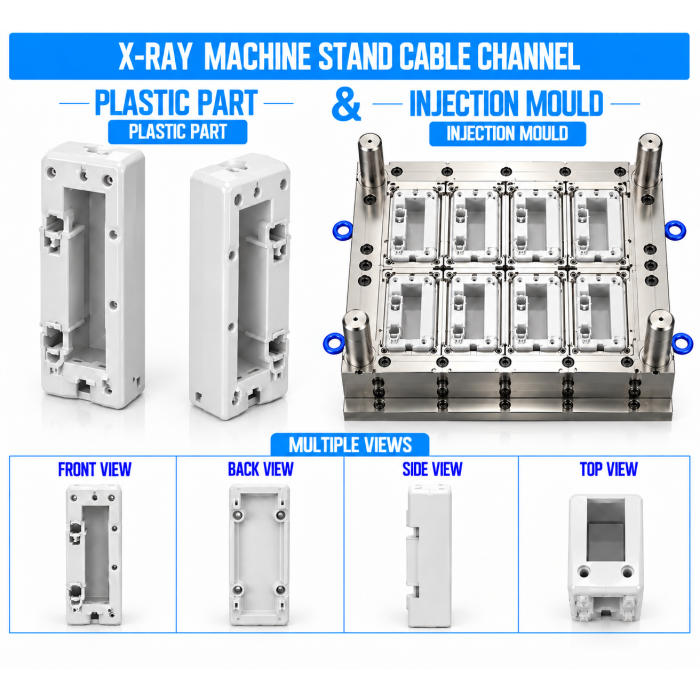

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Stand Cable Channel components used for organizing and protecting cables routed through selected sections of an X-ray machine stand. The cable channel provides a defined routing path for electrical and signal cables while helping keep wiring organized, protected from abrasion, and separated from moving or exposed mechanical areas.

The mould is developed according to the cable-bundle diameter, channel length, width and depth, stand profile, cable entry and exit points, bend requirements, mounting arrangement, and available installation space. The X-Ray Machine Plastic Stand Cable Channel can be customized with snap-fit covers, retaining clips, cable guides, mounting bosses, locating ribs, cable-entry openings, and service-access features according to the equipment design.

Key Features

• Precision injection moulding for consistent cable-channel production

• Customized channel length, width, and depth

• Designed according to the required cable-bundle size

• Defined routing path for organized cable management

• Smooth internal surfaces to reduce cable abrasion

• Rounded edges at cable-contact areas

• Integrated mounting clips, bosses, or snap-fit features

• Cable-entry and exit provisions

• Retaining ribs or guides for controlled cable positioning

• Clearance from moving and heat-producing components

• Optional removable cover or access features

• Controlled wall thickness for dimensional stability

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Stand Cable Channel is developed according to the customer's CAD drawing, 3D model, physical sample, cable specifications, or complete stand assembly. The design is reviewed for cable-bundle diameter, channel dimensions, routing direction, bend radius, entry and exit points, mounting position, and clearance from moving mechanisms.

Special attention is given to cable-contact areas so that sharp edges, excessive bending, and unwanted compression of the cable bundle are avoided.

2. Plastic Mould Design

The injection mould is designed according to the channel profile, cable-routing path, mounting features, retaining clips, locating ribs, and access provisions. Parting lines, draft angles, gate locations, cooling channels, ejector arrangement, and shrinkage allowance are optimized for consistent moulding.

For long cable channels, balanced filling and cooling are considered carefully to minimize warpage, bowing, twisting, and dimensional variation along the complete channel length.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production quantity, selected plastic material, expected mould life, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are used to achieve accurate cavity geometry.

4. Injection Moulding

The selected plastic material is processed using controlled injection moulding conditions. Injection pressure, melt temperature, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and cable-channel geometry.

Controlled processing helps maintain channel dimensions, cable clearance, mounting accuracy, surface quality, and consistent fitment with the stand assembly.

5. Finishing & Assembly Preparation

After moulding, the cable channels are inspected for flash, gate marks, sharp edges, sink marks, and surface imperfections. Any unwanted edges at cable-contact areas are removed or corrected as required.

The channel is then prepared for installation using the specified clips, screws, snap-fits, brackets, or other mounting features.

6. Quality Inspection

Finished X-Ray Machine Plastic Stand Cable Channel components are inspected for overall dimensions, channel profile, cable clearance, mounting features, cable-entry openings, surface finish, and fitment with the corresponding stand assembly.

Where applicable, trial assembly with the specified cable bundle is performed to verify routing, retention, bend clearance, and service accessibility.

Raw Materials

The final plastic grade should be selected according to cable contact, flexibility requirements, operating temperature, vibration, impact exposure, dimensional stability, electrical-equipment requirements, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, material, and assembly checks during mould development and production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall channel dimensions

• Channel width and depth

• Cable-bundle clearance

• Cable-entry and exit opening dimensions

• Cable-routing profile

• Bend-radius clearance where applicable

• Mounting-hole and boss position

• Clip and snap-fit accuracy

• Locating-rib dimensions

• Cover mating accuracy where applicable

• Internal edge smoothness

• Wall-thickness consistency

• Straightness along the channel length

• Warpage, bowing, and twisting inspection

• Sink-mark inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Trial assembly with cable bundle

• Clearance from moving components

• Cable retention and routing verification

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Stand Cable Channel Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, cable specifications, or complete stand assembly details. Important requirements include:

• Cable-bundle diameter

• Number and type of cables

• Required channel length

• Required channel width and depth

• Cable-entry and exit locations

• Required cable bend radius

• Stand profile and mounting location

• Screw, clip, bracket, or snap-fit requirements

• Cable retention requirements

• Required service-access arrangement

• Clearance from moving components

• Clearance from heat-producing components

• Required wall thickness

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the plastic stand cable channel should be treated as a cable-management and protective component unless specifically engineered and validated for electrical insulation, shielding, structural support, or another specialized function. Complete equipment-level electrical, mechanical, thermal, EMC, and regulatory requirements should be validated by the equipment manufacturer.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for precision cable-management and enclosure components requiring accurate dimensions and repeatable production.

In-House Mould Manufacturing

In-house mould manufacturing provides control over channel geometry, cable clearances, mounting features, cooling, ejection, and surface-finish requirements.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Stand Cable Channel moulds and moulded components can be developed according to customer drawings, samples, cable specifications, and stand designs.

Quality Assurance

Dimensional inspection, material verification, surface checks, cable-clearance checks, and trial assembly help maintain consistent cable-channel quality.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototypes, development quantities, and regular OEM production.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Stand Cable Channel?

It is a moulded plastic cable-management component designed to provide a defined routing path for cables installed through selected sections of an X-ray machine stand.

2. Can the cable channel be customized for a specific cable bundle?

Yes. Channel width, depth, length, cable-entry points, retaining features, bend clearance, and mounting arrangement can be customized according to the cable bundle and stand design.

3. Can the cable channel include clips or snap-fit features?

Yes. Integrated clips, retaining ribs, snap-fits, screw bosses, locating tabs, and other mounting features can be incorporated according to the installation requirements.

4. Which plastic materials can be used for the cable channel?

ABS, PC+ABS, PP, PC, PBT, Nylon / PA, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to mechanical, thermal, electrical-equipment, and application requirements.

5. Can Renovator manufacture both the mould and moulded cable channel?

Yes. Renovator Appliances Ltd provides mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Stand Cable Channel production, supporting OEM and ODM requirements.
