Product Overview

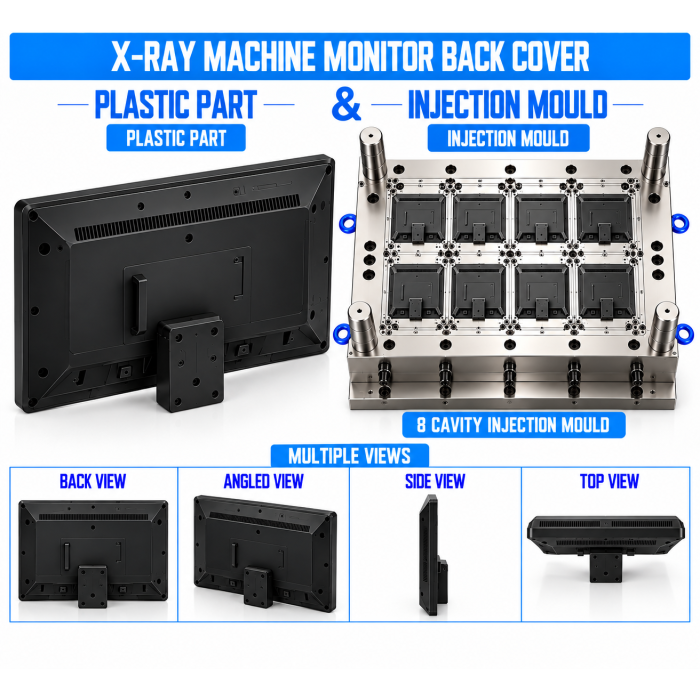

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Monitor Back Cover components used on the rear side of monitor or display assemblies in X-ray equipment. The back cover provides a protective enclosure for the rear portion of the display housing while accommodating mounting interfaces, cable connections, ventilation, and internal clearances required by the monitor assembly.

The mould is developed according to the monitor dimensions, rear housing profile, connector locations, cable-routing requirements, ventilation needs, mounting arrangement, and control-console structure. The X-Ray Machine Plastic Monitor Back Cover can be customized with ventilation slots, cable openings, mounting bosses, locating ribs, snap-fit clips, screw provisions, service-access sections, and reinforcement features according to the equipment design.

Key Features

• Precision injection moulding for consistent monitor back-cover production

• Customized profile according to monitor housing dimensions

• Accurate fit with the monitor bezel and front housing

• Protective enclosure for selected rear monitor components

• Integrated ventilation slots or openings where required

• Cable and connector access provisions

• Mounting bosses and locating features

• Screw, clip, or snap-fit assembly options

• Reinforced mounting sections

• Controlled wall thickness for dimensional stability

• Smooth and cleanable exterior surface

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Monitor Back Cover is developed according to the customer's CAD drawing, 3D model, physical sample, monitor specifications, or complete display assembly. The design is reviewed for monitor dimensions, rear housing profile, connector positions, cable routing, ventilation, mounting points, service access, and clearance from internal components.

The cover geometry is designed to provide suitable clearance around connectors and cables without interfering with the monitor housing, mounting structure, or ventilation requirements.

2. Plastic Mould Design

The injection mould is designed according to the back-cover profile, including ventilation slots, cable openings, mounting bosses, locating ribs, clips, snap-fits, and service-access features where required. Parting lines, gate locations, draft angles, cooling channels, ejector arrangement, and shrinkage allowance are optimized for repeatable production.

Large or curved back-cover surfaces require balanced filling and cooling to minimize warpage, sink marks, surface distortion, and dimensional variation.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production volume, selected plastic material, expected mould life, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are used to achieve accurate cavity geometry.

4. Injection Moulding

The selected plastic material is processed through controlled injection moulding conditions. Injection pressure, melt temperature, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and back-cover geometry.

Controlled processing helps maintain cover dimensions, ventilation-opening accuracy, cable clearance, mounting-feature dimensions, surface quality, and consistent fitment with the monitor assembly.

5. Finishing & Assembly Preparation

After moulding, the monitor back covers are inspected for flash, gate marks, sharp edges, sink marks, weld lines, and surface imperfections. Ventilation openings and cable passages are checked for clean edges and correct dimensions.

Where required, the components can be prepared for printing, labelling, decorative finishing, or installation with the monitor and console assembly.

6. Quality Inspection

Finished X-Ray Machine Plastic Monitor Back Cover components are checked for overall dimensions, rear housing profile, ventilation openings, cable and connector clearances, mounting features, surface finish, and fitment with the corresponding monitor bezel and console housing.

Raw Materials

The final plastic grade should be selected according to monitor heat generation, operating temperature, impact exposure, dimensional stability, surface-finish requirements, cleaning conditions, electrical-equipment requirements, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, material, and assembly checks during mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall back-cover dimensions

• Rear housing profile accuracy

• Monitor and bezel mating dimensions

• Ventilation-opening dimensions

• Cable-entry and connector-opening dimensions

• Internal monitor clearance

• Mounting-hole and boss position

• Snap-fit and clip accuracy

• Locating-rib dimensions

• Service-access opening dimensions where applicable

• Wall-thickness consistency

• Surface flatness and profile

• Warpage and deformation inspection

• Sink-mark and weld-line inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Printing or marking alignment where applicable

• Trial assembly with monitor and bezel

• Cable and connector clearance verification

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Monitor Back Cover Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, monitor specifications, or complete display assembly details. Important requirements include:

• Monitor dimensions

• Rear housing dimensions and profile

• Required cover length and width

• Ventilation requirements

• Cable and connector positions

• Cable-entry opening dimensions

• Mounting-hole locations

• Screw, clip, or snap-fit requirements

• Service-access requirements

• Internal component clearance

• Required wall thickness

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Printing or marking requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the monitor back cover is generally a mechanical and protective enclosure component. It should not be assumed to provide radiation shielding, electrical safety, thermal protection, or structural support unless specifically engineered, tested, and validated for that function.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for monitor covers and enclosure components requiring accurate dimensions, clean openings, and consistent assembly fitment.

In-House Mould Manufacturing

In-house mould manufacturing provides control over back-cover geometry, ventilation openings, cable interfaces, mounting features, cooling, ejection, and surface finish.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Monitor Back Cover moulds and moulded components can be developed according to customer drawings, monitor specifications, samples, and control-console designs.

Quality Assurance

Dimensional inspection, opening checks, surface inspection, material verification, and trial assembly help maintain consistent back-cover quality.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototype development, testing quantities, and regular OEM production.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Monitor Back Cover?

It is a moulded plastic enclosure component fitted to the rear side of an X-ray machine monitor or display assembly to provide protection, mounting, ventilation, and cable-access provisions.

2. Can the back cover be customized for a specific monitor?

Yes. The rear profile, dimensions, ventilation openings, cable passages, mounting points, service access, and internal clearances can be customized according to the monitor assembly.

3. Can ventilation and cable openings be incorporated into the mould?

Yes. Ventilation slots, cable-entry openings, connector clearances, and service-access openings can be incorporated according to the monitor and console design.

4. Which plastic materials can be used for the monitor back cover?

ABS, PC+ABS, PC, HIPS, PBT, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to mechanical, thermal, dimensional, surface-finish, and equipment requirements.

5. Can Renovator manufacture both the mould and moulded monitor back cover?

Yes. Renovator Appliances Ltd provides mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Monitor Back Cover production, supporting OEM and ODM requirements.
