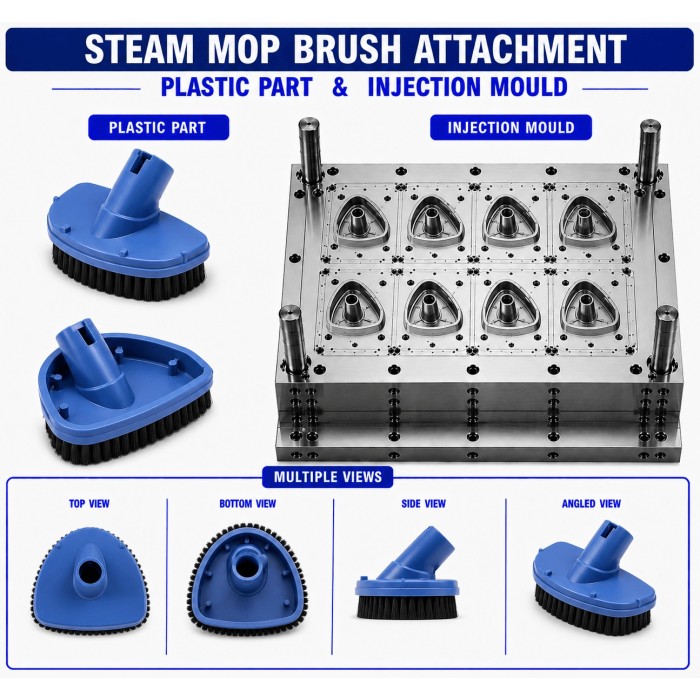

Steam Mop Plastic Brush Attachment Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Brush Attachment Mould and Moulding Service for manufacturing plastic brush attachment components designed to connect with steam mop appliances for targeted cleaning applications. The Steam Mop Plastic Brush Attachment provides a mounting structure for brush bristles and helps direct steam toward surfaces where concentrated cleaning action is required.

The attachment can be customized according to brush diameter, attachment opening, bristle arrangement, steam outlet position, mounting method, locking mechanism, brush depth, wall thickness, handle geometry, and compatibility with the steam mop accessory system. Precision injection moulding helps achieve consistent dimensions and secure attachment.

Key Features

• Targeted Cleaning: Provides a dedicated brush attachment for cleaning smaller or difficult-to-reach areas.

• Bristle Support: The plastic body provides a secure mounting base for the required brush bristles.

• Steam Passage: Steam outlet openings can be incorporated according to the required cleaning design.

• Secure Attachment: Snap-fit, push-fit, bayonet, twist-lock, or other connection systems can be developed.

• Accurate Fit: Attachment dimensions can be customized according to the steam mop outlet or extension nozzle.

• Bristle Mounting: Holes, slots, channels, or other structures can be incorporated for mounting the bristles.

• Compact Design: The brush attachment can be designed for use in confined cleaning areas.

• Heat-Resistant Options: Suitable plastic grades can be evaluated according to the operating temperature.

• Custom Geometry: Round, oval, angled, tapered, or specialized brush-body configurations can be developed.

• Consistent Production: Injection moulding provides repeatable dimensions for reliable accessory assembly.

Industrial Applications

Steam Mop Plastic Brush Attachments are commonly used in:

• Domestic Steam Mops: Provides targeted cleaning for corners, joints, and other surfaces.

• Steam Floor Cleaners: Can be used as an accessory for detailed cleaning applications.

• Upright Steam Cleaners: Connects to compatible steam outlets or extension accessories.

• Portable Steam Cleaning Appliances: Provides a compact brush-based cleaning accessory.

• OEM Steam Cleaning Equipment: Customized brush attachment bodies can be manufactured according to specific appliance designs.

Manufacturing Process

The manufacturing process starts with the customer's brush attachment drawing, sample, bristle specification, steam outlet, accessory interface, 3D CAD model, or complete steam mop assembly. The attachment diameter, bristle arrangement, steam passage, connection method, operating temperature, wall thickness, and available installation space are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The mould forms the brush body, bristle mounting holes or slots, steam openings, attachment interface, locking features, locating ribs, and other required details.

After cooling, the mould opens and the finished plastic brush body is ejected. The moulded component is inspected for dimensions, bristle-hole accuracy, attachment fit, steam openings, surface finish, flash, warpage, and assembly compatibility.

The plastic body can then be assembled with the specified bristles or brush element. Trial assembly is performed with the actual steam mop outlet or extension nozzle to verify proper fitting and secure retention.

Mould Manufacturing Process

1. Product Drawing & Brush Review: Brush diameter, bristle arrangement, steam outlet, connection method, and operating conditions are evaluated.

2. 3D CAD Brush Body Design: A detailed plastic attachment model is developed according to the approved accessory design.

3. DFM Evaluation: Wall thickness, draft angles, bristle holes, steam openings, locking features, parting line, and ejection requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production quantity, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, brush profile, mounting features, and mould plates.

6. EDM Machining: EDM can be used for small bristle holes, slots, grooves, locking details, and other precision mould features.

7. Bristle-Mounting Feature Development: Precision mould features are created to form the required holes, slots, or channels for brush bristle installation.

8. Steam Passage Development: Internal cores and openings are developed according to the required steam-flow arrangement.

9. Surface Finishing: Mould surfaces are polished or textured according to the required product appearance.

10. Mould Assembly: Mould components are assembled and accurately aligned.

11. Trial Injection Moulding: Trial brush attachment bodies are produced to check dimensions, holes, steam openings, and connection features.

12. Bristle Assembly Testing: Bristles are fitted into the moulded body to verify proper mounting and retention.

13. Accessory Assembly Testing: The completed brush attachment is fitted to the actual steam mop or extension nozzle.

14. Final Mould Approval: Necessary mould corrections are completed before regular production.

Raw Materials

• PP (Polypropylene): A lightweight thermoplastic with good chemical and moisture resistance. Heat-resistant PP grades can be considered for suitable brush attachment bodies.

• POM (Polyoxymethylene): A stiff engineering plastic with good dimensional stability and low friction. It can be considered for precision attachment and locking features.

• Nylon (Polyamide): A strong engineering thermoplastic with good mechanical strength and wear resistance. It can be considered for brush bodies requiring higher mechanical durability.

• PA66: A strong Nylon grade offering good strength and dimensional stability for suitable applications, subject to temperature and moisture considerations.

• PC-ABS: An engineering blend offering good rigidity, impact resistance, and dimensional stability for suitable structural attachment bodies.

• PPS (Polyphenylene Sulfide): A high-performance engineering thermoplastic with excellent temperature and chemical resistance. It can be considered for demanding high-temperature applications.

The final material should be selected according to the actual steam temperature, exposure duration, chemical environment, mechanical loading, bristle-retention requirements, and appliance specifications.

Quality Control

• Overall Dimension Inspection: Brush-body diameter, height, width, and critical dimensions are checked against approved specifications.

• Bristle Hole Inspection: Hole diameter, spacing, depth, and arrangement are checked for accurate bristle installation.

• Bristle Retention Test: Installed bristles are checked for secure retention in the plastic body.

• Attachment Fit Check: The attachment is fitted to the actual steam mop outlet or extension nozzle.

• Locking Feature Inspection: Snap-fits, bayonet locks, clips, grooves, or other attachment features are checked for proper engagement.

• Steam Opening Inspection: Steam holes or passages are checked for correct dimensions and unobstructed openings.

• Alignment Check: Brush and steam outlet alignment is checked according to the approved design.

• Surface Finish Inspection: The attachment body is checked for sink marks, flow marks, scratches, weld lines, and other moulding defects.

• Flash Inspection: Excess plastic around bristle holes, steam openings, parting lines, and attachment features is checked.

• Warpage Inspection: The body is inspected for deformation that could affect bristle installation or accessory fitting.

• Temperature Compatibility: Material and component performance are evaluated according to the operating-temperature requirements.

• Assembly Testing: The completed brush attachment is tested with the actual steam mop and compatible accessories.

Production Capacity

Production capacity depends on the brush attachment size, component weight, number of bristle holes, plastic material, mould cavity configuration, injection moulding machine capacity, cycle time, and required production volume. Single-cavity moulds can be considered for development and lower-volume requirements, while multi-cavity moulds may be evaluated for suitable designs and higher-volume production.

Buyer Guide

Before ordering a Steam Mop Plastic Brush Attachment Mould and Moulding Service, buyers should provide the brush diameter, bristle type and size, bristle-hole quantity and spacing, attachment interface, steam outlet dimensions, required locking method, operating temperature, material preference, colour, surface finish, product drawing or sample, and expected production quantity.

Providing the existing brush attachment, bristles, steam mop outlet, extension nozzle, or complete steam mop assembly helps determine accurate bristle mounting, attachment fit, steam opening, and locking requirements.

Why Choose Renovator?

• Customized Brush Attachment Mould Development: Moulds can be developed according to specific brush and steam mop accessory designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent bristle holes, steam openings, and attachment dimensions.

• Material Selection Support: Suitable plastics can be evaluated according to temperature, chemical exposure, strength, wear resistance, and dimensional stability.

• OEM Manufacturing Support: Brush attachment bodies can be manufactured according to customer drawings, samples, 3D models, and approved specifications.

• Custom Bristle Mounting: Hole patterns, slot arrangements, bristle density, and mounting structures can be incorporated into the design.

• Accessory Compatibility Testing: Finished attachments can be tested with the actual steam mop outlet and extension accessories.

• Bulk Production Capability: Manufacturing solutions can be developed according to required quantities.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Brush Attachment used for?
It provides a brush-based accessory for targeted cleaning while allowing the compatible steam mop to direct steam toward the cleaning surface.

Q2. Can the brush attachment be customized according to different bristle sizes?
Yes. The plastic body can be designed according to bristle diameter, hole size, hole spacing, brush density, mounting depth, and overall brush configuration.

Q3. Which plastic materials can be used for a steam mop brush attachment?
Heat-resistant grades of PP, POM, Nylon, PA66, PC-ABS, PPS, and other suitable engineering plastics can be considered according to operating temperature and mechanical requirements.

Q4. Can the attachment include steam openings and locking features?
Yes. Steam holes, internal passages, snap-fits, bayonet locks, clips, grooves, locating ribs, and other connection features can be incorporated.

Q5. Can Renovator manufacture both the mould and finished brush attachment?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic brush attachments.
