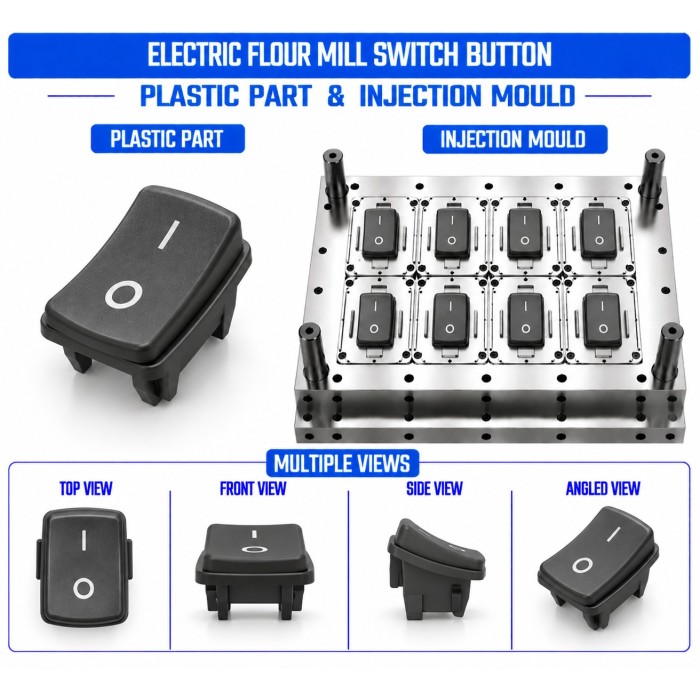

Electric Flour Mill Plastic Switch Button Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Switch Button Mould and Moulding Service for manufacturing precision-moulded plastic switch buttons used in domestic and commercial electric flour mills. The switch button is designed to provide a user-operated interface for controlling functions such as power, operation, mode selection, or other machine controls according to the flour mill design.

The plastic switch button can be developed according to the switch mechanism, panel geometry, button travel, mounting arrangement, actuation force requirements, clearance, and control-panel design. Injection moulding supports consistent dimensions, smooth operation, accurate fitment, and repeatable production quality.

Key Features

• Precision-engineered plastic switch button

• Designed according to the flour mill control-panel arrangement

• Accurate fitment with the underlying electrical switch

• Controlled button travel and actuation interface

• Provision for locating tabs, clips, ribs, guides, and retaining features

• Suitable for different switch shapes and mounting arrangements

• Smooth button-contact surfaces for repeated operation

• Reinforced areas around mounting and actuation points

• Customized colours, textures, and surface finishes

• Optional symbols, markings, or identification features according to design

• Consistent dimensions for repeatable assembly

• Suitable for OEM, ODM, and customized flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The switch button is developed according to the control panel, electrical switch mechanism, button travel, actuation point, mounting arrangement, and available clearance. Button dimensions, guiding features, retaining elements, wall thickness, draft angles, and user-contact surfaces are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the switch button geometry. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to achieve accurate formation of the button face, guides, clips, ribs, and mounting features.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, and mould assembly are carried out as required.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and component geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The switch button is inspected for surface quality, smooth edges, guide features, retaining elements, and proper interaction with the associated switch mechanism.

6. Quality Inspection

Finished switch buttons are inspected for dimensional accuracy, button travel, switch-actuation interface, mounting features, surface quality, flash, warpage, and proper fitment with the flour mill control panel.

Raw Materials

The final plastic grade should be selected according to the switch mechanism, operating temperature, repeated actuation requirements, electrical environment, dimensional stability, surface requirements, and overall appliance design. Where flame performance or specific electrical properties are required, the selected material should be validated against the applicable product specifications.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, parting surfaces, cooling system, venting, and ejection arrangement are inspected.

• Dimensional Inspection: Overall dimensions, button height, guide features, wall thickness, mounting points, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, warpage, flow marks, scratches, and other moulding defects.

• Switch Fitment Inspection: The button is checked against the specified switch mechanism for correct positioning and actuation.

• Functional Inspection: Button movement, return position, retention, and interaction with the control panel are checked according to the approved design.

• Packaging Inspection: Finished buttons are packed appropriately to minimize scratches, deformation, dust, and handling damage.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Switch Button Mould and Moulding Service, buyers should provide the switch-button dimensions, electrical switch model or interface dimensions, control-panel geometry, required button travel, mounting arrangement, 2D engineering drawing or 3D CAD model, preferred plastic grade, colour, surface finish, markings if required, and expected production quantity.

For new product development, special attention should be given to switch compatibility, button travel, actuation alignment, mounting and retention, repeated-use requirements, operating temperature, electrical environment, surface finish, and clearance between the button and control panel.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic switch buttons with repeatable dimensions, surface quality, and assembly fitment.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the switch button geometry, required production volume, and dimensional requirements.

OEM & ODM Manufacturing

Customized switch buttons can be developed and manufactured according to customer drawings, CAD models, samples, or approved product specifications.

Quality Assurance

Raw materials, moulds, dimensions, switch interfaces, button movement, appearance, and assembly fitment can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and controlled injection moulding processes can support economical production for different order volumes.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Switch Button?

It is a moulded plastic control component that transfers user input to an electrical switch or control mechanism in an electric flour mill.

2. Which plastic materials can be used for a switch button?

ABS, PP, HIPS, PC+ABS, PBT, Nylon/PA, POM/Acetal, PC, and suitable flame-retardant plastics can be considered according to the required mechanical, thermal, electrical, and repeated-actuation properties.

3. Which steel is suitable for the switch button mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, and surface finish.

4. Can the switch button be customized according to the flour mill design?

Yes. Button dimensions, shape, travel, mounting features, guides, clips, retaining elements, colour, texture, surface finish, and identification markings can be customized according to the approved design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic switch buttons, subject to the required design and production specifications.
