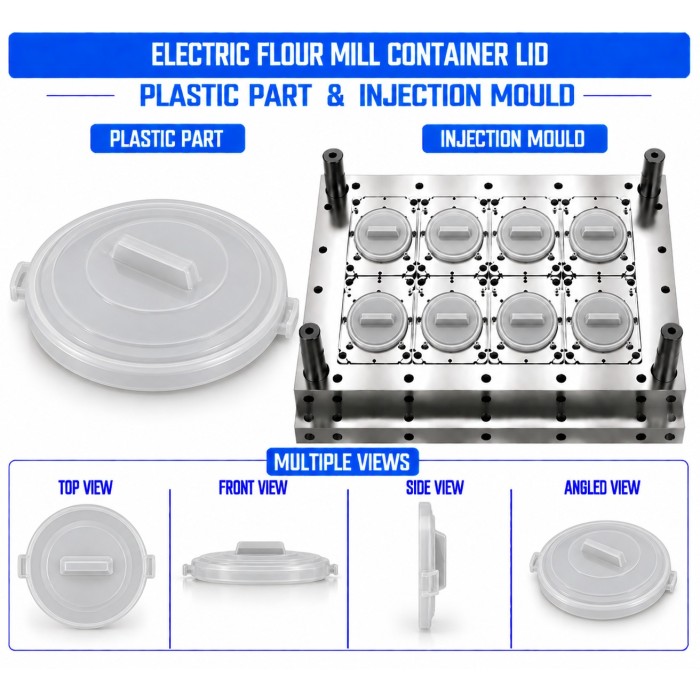

Electric Flour Mill Plastic Container Lid Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Container Lid Mould and Moulding Service for manufacturing precision-moulded plastic container lids used with flour collection containers in domestic and commercial electric flour mills. The container lid is designed to provide a suitable cover for the collected flour while supporting convenient handling, positioning, removal, and storage.

The lid can be developed according to the container dimensions, opening profile, locking or retaining arrangement, handle requirements, sealing or closure needs, and flour mill assembly design. Precision plastic injection moulding supports consistent dimensions, accurate container fitment, smooth surfaces, and repeatable production quality.

Key Features

• Precision-engineered plastic container lid

• Designed for electric flour mill flour collection containers

• Accurate fitment with the specified container opening

• Suitable snap-fit, press-fit, clip, or locking arrangements

• Integrated handle, grip, tabs, ribs, or locating features where required

• Suitable clearance and retention around the container rim

• Smooth internal and external surfaces

• Controlled wall thickness for consistent moulding

• Reinforced areas around handles and retaining features

• Suitable for customized colours, textures, and surface finishes

• Lightweight construction with application-appropriate rigidity

• Consistent dimensions for repeated assembly

• Suitable for OEM, ODM, and customized electric flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The container lid is developed according to the flour collection container opening, rim profile, required lid dimensions, retention method, handle arrangement, and available clearance. Wall thickness, draft angles, snap-fit or locking features, grip geometry, and container-lid interface are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the lid geometry, outer profile, inner locating features, handle, ribs, retaining sections, and surface-finish requirements. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned for consistent moulding.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, mould assembly, and trial runs are performed as required.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and lid geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The lid rim, handle, retaining features, locating sections, edges, and other assembly surfaces are inspected and finished as required before the component is prepared for use.

6. Quality Inspection

Finished container lids are inspected for dimensional accuracy, rim fitment, retention features, handle geometry, surface quality, warpage, deformation, flash, and proper integration with the intended flour collection container.

Raw Materials

The final plastic grade should be selected according to the lid's contact with flour, cleaning conditions, mechanical handling, impact exposure, operating temperature, and applicable product requirements. Where the lid is intended for direct contact with flour or food material, a suitable food-contact grade should be selected and validated according to the applicable requirements.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, lid-forming surfaces, retaining features, parting surfaces, cooling system, and ejection system are inspected.

• Dimensional Inspection: Overall dimensions, rim diameter/profile, wall thickness, handle dimensions, locating features, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, burn marks, weld lines, warpage, cracks, scratches, and other moulding defects.

• Container Fitment Inspection: The lid is checked for proper fitment, alignment, and retention on the specified flour collection container.

• Handling & Assembly Inspection: Handle, grip, clips, snap-fits, locking, and removal features are checked according to the approved design.

• Packaging Inspection: Finished lids are protected against scratches, deformation, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Container Lid Mould and Moulding Service, buyers should provide the container opening dimensions, rim profile, lid dimensions, required retention or locking arrangement, handle requirements, material preference, colour, surface finish, and estimated production quantity where available.

For new product development, special attention should be given to lid-to-container fitment, retention force, ease of removal, handle strength, cleaning requirements, wall thickness, and material suitability for flour contact. A 2D engineering drawing, 3D CAD model, approved sample, container sample, or flour mill assembly sample can be provided for mould development and manufacturing evaluation.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Suitable injection moulding capabilities support consistent production of plastic container lids with repeatable dimensions, accurate rim fitment, and smooth surface quality.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the lid geometry, container profile, retention method, handle arrangement, production volume, and component specifications.

OEM & ODM Manufacturing

Customized container lids can be developed and manufactured according to customer drawings, CAD models, samples, specifications, or product-development requirements.

Quality Assurance

Raw materials, moulds, dimensions, lid fitment, retaining features, handle geometry, appearance, and assembly interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design and controlled injection moulding processes can support economical production for development quantities as well as larger-volume manufacturing requirements.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Container Lid?

It is a moulded plastic cover designed to fit over a flour collection container used with an electric flour mill.

2. Which plastic materials can be used for a flour container lid?

PP, HDPE, ABS, HIPS, PC+ABS, PBT, Nylon/PA, and other suitable plastics can be considered depending on the required strength, flexibility, appearance, cleaning conditions, and application requirements. For direct flour contact, a suitable food-contact grade should be selected and validated according to applicable requirements.

3. Can the container lid be customized?

Yes. Lid dimensions, rim profile, handle, clips, snap-fits, locking features, locating sections, colour, texture, and surface finish can be customized according to the flour collection container design.

4. Which steel is suitable for the container lid mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, and surface finish.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic container lids, subject to the required design and production specifications.
