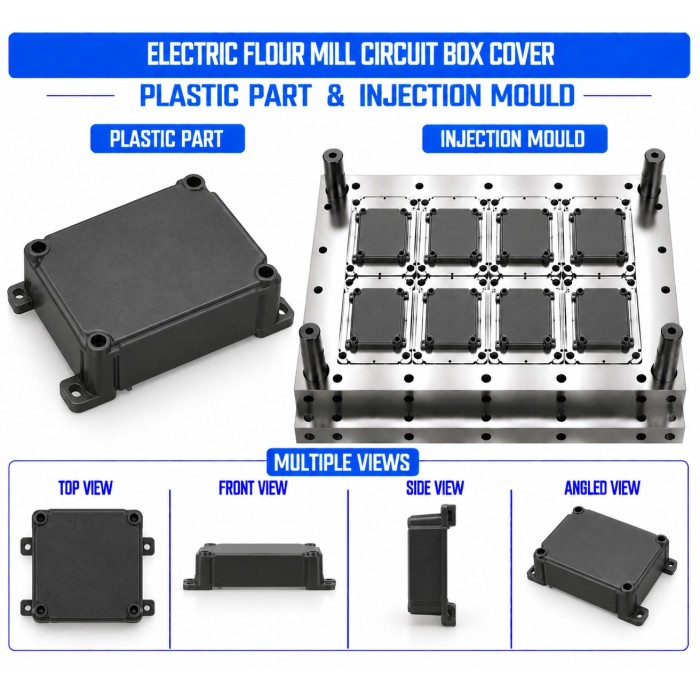

Electric Flour Mill Plastic Circuit Box Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Circuit Box Cover Mould and Moulding Service for manufacturing precision-moulded plastic circuit box covers used in domestic and commercial electric flour mills. The circuit box cover is designed to provide protective coverage for electrical circuits, wiring connections, terminals, and related control components while supporting the enclosure and assembly requirements of the appliance.

The circuit box cover can be developed according to the circuit box dimensions, PCB or electrical component layout, mounting arrangement, cable entry points, ventilation requirements, and available enclosure space. Precision plastic injection moulding supports consistent dimensions, accurate mounting features, controlled clearances, smooth surfaces, and repeatable production quality.

Key Features

• Precision-engineered plastic circuit box cover

• Protective coverage for electrical circuit components

• Accurate fitment with the circuit box and flour mill housing

• Suitable cable entry and wire routing provisions

• Mounting bosses, posts, clips, tabs, ribs, or locating features where required

• Controlled electrical clearances around internal components

• Reinforced mounting and fastening areas

• Ventilation openings where required by the design

• Controlled wall thickness for consistent moulding

• Suitable for customized colours, textures, and surface finishes

• Consistent dimensions for repeated assembly

• Suitable for OEM, ODM, and customized electric flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The circuit box cover is developed according to the circuit box dimensions, PCB or electrical component arrangement, mounting points, cable routing, connector locations, ventilation requirements, and surrounding enclosure geometry. Electrical clearances, wall thickness, ribs, bosses, clips, draft angles, and assembly interfaces are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the circuit box cover geometry and required mounting features. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to achieve accurate formation of the cover, cable openings, bosses, ribs, and retaining features.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, mould assembly, and trial runs are performed as required.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and circuit box cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. Cable openings, mounting bosses, clips, ribs, retaining features, edges, and assembly surfaces are inspected and finished as required before the cover is prepared for installation.

6. Quality Inspection

Finished circuit box covers are inspected for dimensional accuracy, electrical clearances, mounting features, cable openings, surface quality, flash, warpage, deformation, and proper fitment with the intended circuit box and flour mill housing.

Raw Materials

The final plastic grade should be selected according to the electrical environment, operating temperature, mechanical requirements, dimensional stability, impact exposure, and applicable product specifications. Where the circuit box cover forms part of an electrical enclosure, the selected material should be validated for the actual insulation, temperature, and fire-performance requirements of the application.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, circuit-cover forming sections, parting surfaces, cooling system, and ejection system are inspected.

• Dimensional Inspection: Overall dimensions, wall thickness, mounting points, cable openings, component clearances, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, burn marks, weld lines, warpage, cracks, scratches, and other moulding defects.

• Electrical Clearance Inspection: Required clearances around specified electrical components and wiring interfaces are checked according to the approved design.

• Fitment & Assembly Inspection: The cover is checked for proper alignment and fitment with the circuit box, wiring, and flour mill housing.

• Packaging Inspection: Finished components are protected against deformation, scratches, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Circuit Box Cover Mould and Moulding Service, buyers should provide the circuit box dimensions, PCB or electrical component layout, mounting arrangement, cable entry locations, required electrical clearances, ventilation requirements, material preference, colour, surface finish, and estimated production quantity where available.

For new product development, special attention should be given to electrical clearances, cable routing, component accessibility, mounting strength, ventilation, wall thickness, and proximity to heat-generating electrical components. A 2D engineering drawing, 3D CAD model, approved sample, circuit box sample, or relevant assembly specifications can be provided for mould development and manufacturing evaluation.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Suitable injection moulding capabilities support consistent production of plastic circuit box covers with repeatable dimensions, accurate mounting features, and reliable assembly interfaces.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the circuit box geometry, electrical clearances, cable openings, mounting arrangement, production volume, and component specifications.

OEM & ODM Manufacturing

Customized circuit box covers can be developed and manufactured according to customer drawings, CAD models, samples, specifications, or product-development requirements.

Quality Assurance

Raw materials, moulds, dimensions, electrical clearances, cable openings, fitment, appearance, and assembly interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design and controlled injection moulding processes can support economical production for development quantities as well as larger-volume manufacturing requirements.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Circuit Box Cover?

It is a moulded plastic protective component designed to cover a circuit box containing electrical circuits, wiring connections, terminals, or related control components within an electric flour mill.

2. Which plastic materials can be used for a circuit box cover?

ABS, PP, PC+ABS, PBT, Nylon/PA, Glass-Filled Nylon, HIPS, PC, and suitable flame-retardant plastics can be considered depending on the required mechanical, thermal, dimensional, and electrical characteristics.

3. Which steel is suitable for the circuit box cover mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, and surface finish.

4. Can the circuit box cover be customized?

Yes. Dimensions, cable openings, mounting bosses, clips, ribs, ventilation features, electrical clearances, colour, texture, and surface finish can be customized according to the electric flour mill's circuit box and housing design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic circuit box covers, subject to the required design and production specifications.
