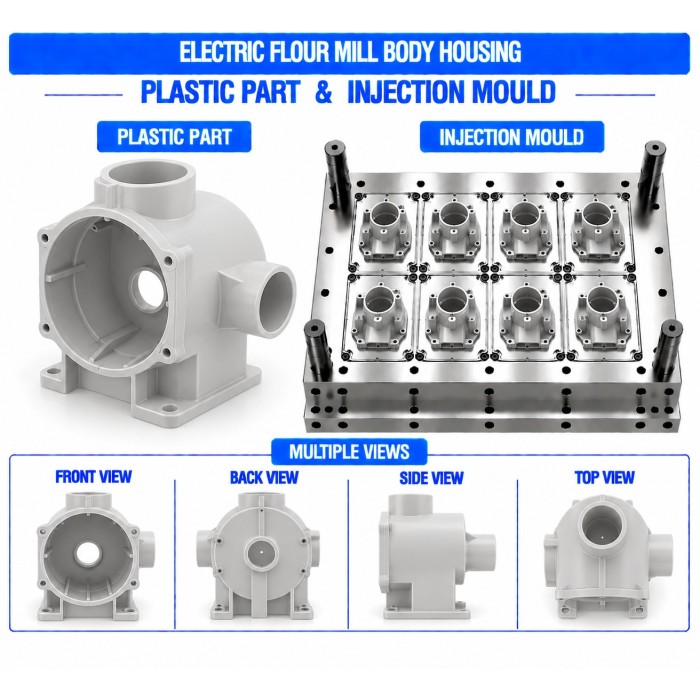

Electric Flour Mill Plastic Body Housing Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Body Housing Mould and Moulding Service for manufacturing precision-moulded plastic body housings used in domestic and commercial electric flour mills. The body housing forms the main external enclosure of the flour mill, providing protection and structural support for internal assemblies such as the motor, grinding chamber, hopper, control system, wiring, feeder mechanism, and other components.

The plastic body housing can be developed according to the overall machine dimensions, internal component arrangement, hopper and grinding-chamber interfaces, control-panel location, ventilation requirements, cable routing, mounting points, and aesthetic requirements. Injection moulding enables consistent dimensions, controlled wall thickness, accurate assembly features, and repeatable production quality.

Key Features

• Precision-engineered plastic body housing

• Designed according to electric flour mill dimensions and internal layout

• Provides protective enclosure for internal components

• Accurate interfaces for hopper, grinding chamber, motor, and base assemblies

• Provision for mounting bosses, screw posts, ribs, clips, tabs, and locating features

• Openings for control panels, switches, displays, cables, and other interfaces

• Ventilation provisions where required by the machine design

• Reinforced areas for mounting and structural support

• Controlled wall thickness for consistent injection moulding

• Smooth surfaces suitable for appliance applications

• Customized colours, textures, and surface finishes

• Suitable for OEM, ODM, and customized flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The body housing is developed according to the overall flour mill dimensions, internal component arrangement, hopper position, grinding chamber, motor location, control panel, wiring route, ventilation requirements, and assembly interfaces. Wall thickness, ribs, bosses, draft angles, parting lines, mounting points, and component clearances are considered during product development.

2. Plastic Mould Design

The injection mould is designed according to the body housing geometry. The cavity and core arrangement, parting line, gate location, runner system, cooling channels, venting, sliders or lifters where required, and ejection system are planned to support accurate moulding of the housing.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, and mould assembly are carried out as required.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and housing geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The body housing is visually inspected and prepared for assembly. Mounting bosses, openings, clips, cable passages, control-panel interfaces, ventilation features, and mating surfaces are checked as required.

6. Quality Inspection

Finished body housings are inspected for dimensional accuracy, wall thickness, mounting locations, component clearances, surface appearance, warpage, flash, and proper fitment with the intended flour mill assemblies.

Raw Materials

The final plastic grade should be selected according to the flour mill's operating temperature, mechanical loads, vibration, electrical environment, impact requirements, surface requirements, and overall enclosure design. If any portion of the housing comes into direct contact with grain or flour, the material should be separately evaluated for the applicable food-contact requirements.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, parting surfaces, cooling system, venting, sliders or lifters, and ejection arrangement are inspected.

• Dimensional Inspection: Overall housing dimensions, wall thickness, mounting points, openings, and critical interfaces are checked.

• Visual Inspection: Components are inspected for flash, short shots, sink marks, warpage, weld lines, burn marks, scratches, and other moulding defects.

• Component Fitment Inspection: The housing is checked against the hopper, grinding chamber, motor, control panel, base, and other specified components.

• Assembly Inspection: Mounting features, clips, cable passages, ventilation openings, and mating interfaces are verified for proper integration.

• Packaging Inspection: Finished housings are packed appropriately to reduce scratches, deformation, dust, and handling damage.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Body Housing Mould and Moulding Service, buyers should provide the overall housing dimensions, internal component layout, hopper and grinding-chamber dimensions, motor arrangement, control-panel location, mounting points, cable-routing requirements, ventilation requirements, 2D engineering drawing or 3D CAD model, preferred plastic grade, colour, surface finish, and expected production quantity.

For new product development, special attention should be given to the housing's structural requirements, internal component clearances, mounting strength, ventilation, wall thickness, draft angles, assembly method, surface finish, and operating environment.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of large and detailed plastic flour mill body housings with repeatable dimensions and surface quality.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the body housing geometry, required production volume, component complexity, and dimensional requirements.

OEM & ODM Manufacturing

Customized flour mill body housings can be developed and manufactured according to customer drawings, CAD models, samples, or approved product specifications.

Quality Assurance

Raw materials, moulds, dimensions, mounting features, component interfaces, appearance, and assembly fitment can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and controlled injection moulding processes can support economical production for different order volumes.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Body Housing?

It is the main moulded plastic enclosure of an electric flour mill that provides external protection and supports the integration of internal components and assemblies.

2. Which plastic materials can be used for a flour mill body housing?

PP, ABS, HIPS, PC+ABS, PBT, Nylon/PA, Glass-Filled Nylon, HDPE, and suitable flame-retardant plastics can be considered according to the required mechanical, thermal, electrical, and environmental properties.

3. Which steel is suitable for the body housing mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, surface finish, and mould design complexity.

4. Can the plastic body housing be customized?

Yes. Overall dimensions, hopper openings, grinding-chamber interfaces, control-panel openings, ventilation features, mounting points, cable passages, ribs, clips, colour, texture, and surface finish can be customized according to the approved flour mill design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic body housings, subject to the required design and production specifications.
