Garment Steamer Plastic Steam Head Holder Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

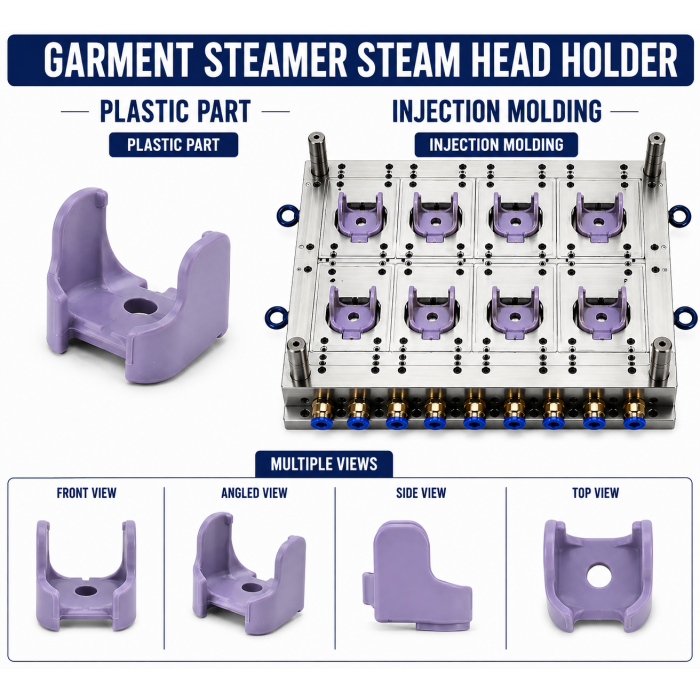

Garment Steamer Plastic Steam Head Holder Mould and Moulding Service | Renovator Appliances Ltd is designed for manufacturing precision plastic steam head holders used in garment steamers. The holder provides a secure resting and storage position for the steam head when it is not being actively used, while helping maintain proper alignment and supporting safe handling.

The steam head holder can be customized according to specific steam head dimensions, mounting interface, holder opening, support geometry, retention features, wall thickness, heat exposure, material, colour, surface texture, and garment steamer design using precision plastic injection moulding.

Key Features

• Precision-moulded plastic steam head holder

• Designed for garment steamer steam head assemblies

• Provides secure steam head placement

• Accurate support and retention geometry

• Customized steam head mounting interface

• Ergonomic holder profile

• Snap-fit or screw-mounted designs

• Heat-resistant material options

• Lightweight and durable construction

• Customized colour and surface finish

Industrial Applications

Garment Steamer Plastic Steam Head Holders are used in:

• Household garment steamers

• Standing garment steamers

• Portable garment steamers

• Steam ironing appliances

• Garment-care equipment

• Steam head storage assemblies

• Steam head support systems

• Garment steamer housings

• Appliance mounting assemblies

• Home electrical appliances

Manufacturing Process

The Garment Steamer Plastic Steam Head Holder is manufactured using a precision plastic injection moulding process. Selected plastic granules are fed into an injection moulding machine and heated to the required processing temperature.

The molten plastic is injected into a precision-engineered mould cavity containing the required holder profile, steam head support surface, mounting features, retention geometry, and structural ribs. Controlled cooling allows the plastic to solidify into the required shape.

After cooling, the mould opens and the finished steam head holder is ejected. The moulded component is inspected for overall dimensions, steam head fit, support stability, retention, mounting accuracy, surface finish, flash, sink marks, and warpage.

Mould Manufacturing Process

The mould is designed according to the required product drawing or 3D CAD model. Particular attention is given to the steam head profile, holder opening, support surfaces, mounting points, snap-fits, screw bosses, structural ribs, wall thickness, draft angles, parting line, cooling channels, and ejection mechanism.

Suitable mould steel such as P20, H13, or S136 can be selected according to production volume, component complexity, mould life, and required surface finish.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, polishing, and precision fitting. The mould geometry can be optimized to provide suitable clearance and support for the steam head while maintaining structural strength.

After mould assembly, trial moulding is performed to verify filling, cooling, ejection, dimensions, steam head fit, retention, mounting accuracy, structural stability, surface appearance, and assembly compatibility.

Raw Materials

Suitable materials may include:

• PP

• PBT

• ABS

• PC/ABS

• PA66 Nylon

• POM

• PC

• HIPS

• Heat-resistant engineering plastics

• Flame-retardant plastic grades where required

Material selection depends on temperature exposure, mechanical strength, dimensional stability, impact resistance, rigidity, and steam head support requirements.

Quality Control

The Steam Head Holder can be inspected for:

• Overall dimensions

• Holder opening dimensions

• Steam head fit

• Support-surface dimensions

• Retention performance

• Mounting-hole positions

• Snap-fit accuracy

• Screw-boss dimensions

• Structural strength

• Wall thickness

• Product weight

• Surface finish

• Flash and burrs

• Warpage

• Cracks and sink marks

• Assembly compatibility

Production Capacity

Production capacity depends on mould cavity count, injection moulding machine capacity, product weight, cycle time, cooling time, plastic material, and machine operating efficiency.

For example, an 8-cavity mould operating with a 30-second cycle time can theoretically produce approximately 960 pieces per hour, before accounting for downtime, inspection, material changes, and other production losses.

Actual production capacity depends on the final steam head holder design, mould configuration, machine specifications, material, and operating conditions.

Buyer Guide

When ordering a Garment Steamer Plastic Steam Head Holder Mould and Moulding Service, buyers should provide the product drawing or 3D CAD model, steam head dimensions, holder opening dimensions, required clearance, mounting locations, retention requirements, support load, operating temperature, steam exposure, plastic material, colour, surface finish, expected production quantity, and assembly specifications.

For holders positioned near hot steam components, buyers should also specify the required heat resistance, thermal exposure, support strength, clearance from hot surfaces, and long-term dimensional stability.

These specifications help determine the appropriate mould design, mould steel, cavity configuration, plastic material, and injection moulding machine.

Why Choose Renovator Appliances Ltd.?

• Customized steam head holder mould development

• Precision plastic injection moulding

• Accurate steam head support geometry

• Customized retention and mounting features

• Structural rib and reinforcement options

• Heat-resistant material options

• Flame-retardant material options

• Customized colours and surface finishes

• Single-cavity and multi-cavity mould solutions

• High-volume production support

• Consistent dimensional quality

Frequently Asked Questions (FAQ)

1. What is a Garment Steamer Plastic Steam Head Holder?

A Garment Steamer Plastic Steam Head Holder is a plastic support component designed to hold and secure the steam head when it is placed in its designated resting or storage position.

2. Which plastic materials can be used for the steam head holder?

Common materials include PP, PBT, ABS, PC/ABS, PA66 Nylon, POM, PC, HIPS, and suitable heat-resistant engineering plastics. Material selection depends on temperature exposure, mechanical strength, rigidity, and appliance design.

3. Can the steam head holder be customized?

Yes. It can be customized according to steam head dimensions, holder opening, clearance, support geometry, mounting method, retention features, material, colour, and surface finish.

4. Can the holder be manufactured for heat-exposed applications?

Yes. Where the holder is exposed to elevated temperatures, suitable heat-resistant engineering plastic grades can be selected according to the actual operating temperature and application requirements.

5. Does Renovator Appliances Ltd. provide both mould manufacturing and moulding services?

Yes. Renovator Appliances Ltd. provides customized plastic mould manufacturing and injection moulding services for Garment Steamer Plastic Steam Head Holders according to customer drawings, 3D models, material specifications, and production requirements.
