Air Curtain Plastic PCB Holder Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

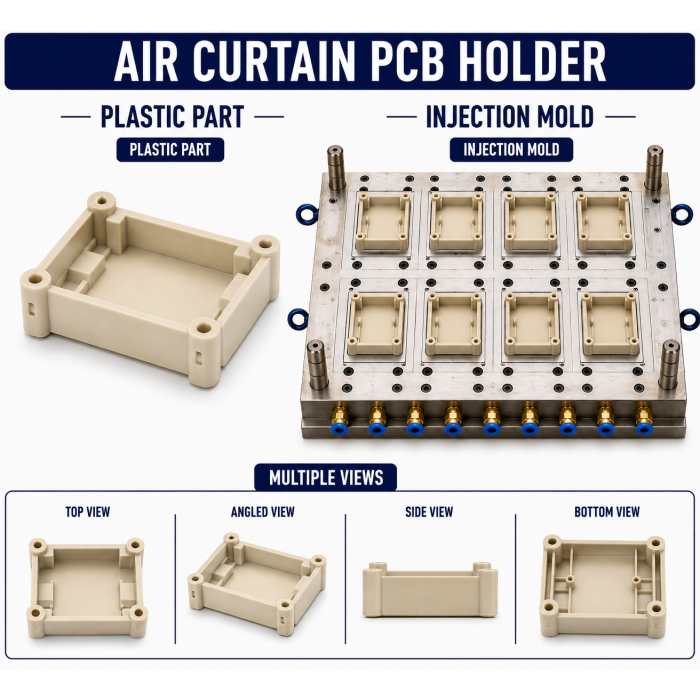

Renovator Appliances Ltd. provides precision Air Curtain Plastic PCB Holder Mould and Moulding Service for manufacturing accurately moulded plastic holders used to support and position printed circuit boards (PCBs) inside air curtain systems and HVAC equipment. The PCB holder helps maintain the PCB in the required position within the appliance while providing suitable support, spacing, and mounting for the electronic assembly.

The component can be customized with mounting posts, locating pins, clips, slots, screw bosses, snap-fit features, support ribs, standoffs, and other positioning elements according to the PCB and air curtain enclosure design. These features can help maintain appropriate PCB alignment and clearance from surrounding components.

Our injection moulding solutions support the production of consistent PCB holders for OEM, ODM, replacement-part, and bulk manufacturing applications. Mould design can be optimized according to component geometry, selected plastic material, production quantity, required dimensional accuracy, and assembly method.

Key Features

• Precision injection mould development for PCB holder production

• Accurate PCB positioning and support

• Customized mounting posts and standoffs

• Locating pins and alignment features

• Snap-fit, clip, or screw-mounting options

• Support ribs for improved structural stability

• Controlled PCB clearance and spacing

• Lightweight and durable plastic construction

• Consistent dimensions for repeated production

• Customized colour and surface finish options

• Single-cavity or multi-cavity mould options

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

Product Design & Development

The PCB holder is designed according to PCB dimensions, mounting-hole positions, component clearances, enclosure space, and assembly requirements. Standoffs, locating pins, mounting posts, clips, ribs, and other support features can be incorporated according to the application.

Plastic Mould Design

A precision injection mould is designed around the approved PCB holder geometry. Parting line, draft angles, gate location, cooling channels, ejection arrangement, cavity configuration, and critical mounting features are evaluated for stable and repeatable production.

Mould Manufacturing

The mould can be manufactured using suitable tooling materials such as P20, H13, or S136 steel based on production volume, component complexity, durability requirements, and desired surface finish. CNC machining, EDM, drilling, grinding, polishing, and mould fitting processes may be used.

Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. After cooling and solidification, the PCB holder is ejected and prepared for inspection.

Finishing & Assembly

Moulded PCB holders are inspected for flash, short shots, sink marks, warpage, and other moulding defects. Trimming, cleaning, labelling, or additional assembly operations can be performed when required.

Quality Inspection

Finished PCB holders are checked for dimensions, PCB positioning, mounting compatibility, support features, clearance, surface quality, and overall moulding consistency.

Raw Materials

Material selection should consider PCB weight, mounting loads, temperature exposure, dimensional stability, electrical environment, mechanical requirements, and applicable safety specifications.

Quality Control

Raw Material Inspection

Plastic resin is checked according to the specified material grade and production requirements before processing.

Mould Inspection

The mould is inspected for cavity dimensions, alignment, ejector operation, cooling arrangement, parting surfaces, and critical PCB holder features.

Dimensional Inspection

Important dimensions such as holder length, width, mounting-post height, locating-pin positions, PCB clearance, hole locations, and support features are checked against approved specifications.

Visual Inspection

Components are inspected for flash, short shots, sink marks, warpage, burn marks, scratches, weld lines, and other surface defects.

Fitment & Functional Inspection

PCB positioning, mounting-hole alignment, standoff clearance, clip engagement, support stability, and compatibility with the air curtain assembly can be evaluated according to customer requirements.

Packaging Inspection

Finished PCB holders are packed appropriately to minimize scratches, deformation, contamination, and damage during transportation.

Buyer Guide

1. Provide PCB Specifications

Share PCB dimensions, thickness, mounting-hole locations, component heights, connector positions, and required clearance.

2. Define Mounting Requirements

Specify whether the holder requires screw mounting, snap-fit clips, locating pins, standoffs, brackets, or another mounting arrangement.

3. Confirm Load and Support Requirements

Provide information about PCB weight, mounting orientation, expected vibration, and the required support points.

4. Select the Appropriate Plastic

Material selection should consider strength, stiffness, temperature exposure, dimensional stability, electrical environment, and required service conditions.

5. Confirm Production Quantity

Expected batch quantity and annual demand help determine the appropriate mould material, cavity configuration, tooling design, and injection moulding strategy.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic PCB holders with controlled dimensions and repeatable quality.

In-House Mould Manufacturing

Our mould manufacturing expertise helps maintain control over critical holder geometry, mounting features, standoffs, locating elements, and ejection systems.

OEM & ODM Manufacturing

Customized PCB holders can be manufactured according to customer drawings, CAD models, physical samples, dimensions, and specific air curtain requirements.

Quality Assurance

Material inspection, mould inspection, dimensional checking, visual inspection, and fitment evaluation help maintain consistent product quality.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and efficient injection moulding processes support economical production across different order volumes.

Frequently Asked Questions

1. What is an Air Curtain Plastic PCB Holder?

An Air Curtain Plastic PCB Holder is a moulded plastic component used to support, position, and mount a printed circuit board inside an air curtain system.

2. Which materials can be used for a PCB holder?

ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered according to the required mechanical, thermal, electrical, and safety properties.

3. Can the PCB holder be customized according to our PCB?

Yes. The holder can be customized according to PCB dimensions, mounting-hole locations, component clearance, mounting orientation, enclosure space, and assembly requirements.

4. Can the PCB holder include standoffs and locating pins?

Yes. Standoffs, locating pins, mounting posts, clips, screw bosses, support ribs, and other positioning features can be incorporated according to the approved design.

5. Can you manufacture PCB holders for bulk production?

Yes. Single-cavity or multi-cavity mould solutions can be considered based on component complexity, production quantity, annual demand, and required manufacturing efficiency.
