Product Overview

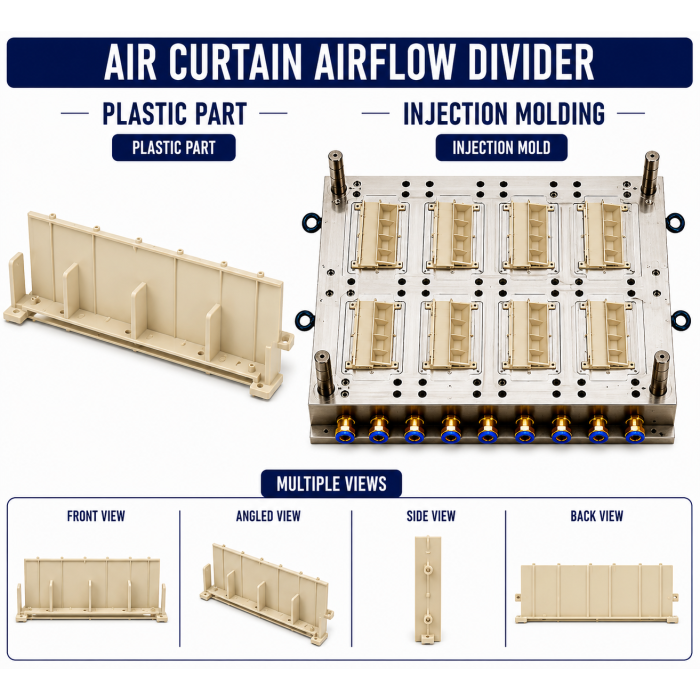

Air Curtain Plastic Air Flow Divider Mould and Moulding Service is designed for manufacturing precision plastic air flow divider components used inside air curtain systems. The air flow divider helps organize and separate internal air passages so that airflow can be directed through the intended sections of the air curtain assembly.

Renovator Appliances Ltd provides customized plastic mould manufacturing and injection moulding services for air flow divider components according to customer drawings, 3D CAD models, samples, dimensions, and functional requirements. The component can be developed with suitable ribs, partitions, guide surfaces, locating features, mounting points, and airflow separation structures according to the air curtain design.

The mould can be engineered for consistent dimensions, repeatable production, smooth surface finish, and efficient injection moulding. Depending on production requirements, single-cavity or multi-cavity mould configurations can be developed for prototype, small-batch, and high-volume manufacturing.

Key Features

• Precision mould design for accurate air flow divider geometry.

• Internal partitions and divider walls for separating airflow passages.

• Smooth and controlled airflow guide surfaces.

• Accurate mounting and locating features for proper assembly.

• Reinforcing ribs for improved component rigidity.

• Bosses, clips, slots, or fixing points can be customized as required.

• Lightweight construction suitable for air curtain assemblies.

• Customized dimensions according to customer drawings or samples.

• Multiple material options based on strength, temperature, and application requirements.

• Customized colour, texture, and surface finish.

• Single-cavity and multi-cavity mould options.

• Suitable for OEM and ODM production requirements.

• Consistent repeatability for bulk injection moulding production.

Industrial Applications

Manufacturing Process

1. Product Design & Development
The air flow divider design is reviewed according to customer drawings, CAD files, samples, dimensions, airflow requirements, mounting arrangement, and assembly conditions. Critical areas such as wall thickness, ribs, partitions, fixing points, and draft angles are considered during development.

2. Plastic Mould Design
A dedicated injection mould is designed according to the component geometry and selected plastic material. The mould design considers cavity layout, runner system, gate location, cooling channels, ejection arrangement, parting line, and appropriate draft angles.

3. Mould Manufacturing
The mould components are manufactured using suitable mould steels such as P20, H13, or S136 according to production requirements. CNC machining, EDM, drilling, grinding, polishing, and other precision processes can be used for manufacturing the mould.

4. Injection Moulding
Selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. After cooling and solidification, the air flow divider is ejected from the mould.

5. Finishing & Assembly
Moulded components are inspected and, where required, undergo trimming, gate removal, deburring, surface finishing, or assembly preparation.

6. Quality Inspection
Finished air flow divider components are checked for dimensional accuracy, moulding defects, surface quality, fitment, and consistency before bulk production and dispatch.

Raw Materials

Material selection is finalized according to the air curtain design, operating conditions, component geometry, required strength, temperature exposure, and customer specifications.

Quality Control

Raw Material Inspection
Plastic material is checked according to the specified grade and production requirements before moulding.

Mould Inspection
The mould is inspected for cavity condition, parting surfaces, cooling arrangement, ejection system, and other critical mould features.

Dimensional Inspection
Critical dimensions such as divider-wall geometry, mounting points, overall dimensions, slots, openings, and locating features are checked against approved specifications.

Visual Inspection
Components are inspected for flash, short moulding, sink marks, warpage, burn marks, surface defects, and other visible moulding issues.

Fitment & Functional Inspection
The air flow divider can be checked for proper positioning, mounting, clearance, and compatibility with the relevant air curtain assembly.

Packaging Inspection
Finished components are packed appropriately to minimize scratches, deformation, contamination, and damage during handling and transportation.

Buyer Guide

When ordering an Air Curtain Plastic Air Flow Divider Mould and Moulding Service, buyers should consider:

1. Component Dimensions – Provide the required overall dimensions, divider geometry, wall thickness, and critical tolerances.

2. Airflow Requirements – Share the intended airflow path and internal arrangement so the divider geometry can be developed appropriately.

3. Mounting Details – Provide information about screws, clips, locating pins, brackets, or other assembly features.

4. Material Selection – Select the plastic grade according to strength, temperature exposure, durability, surface finish, and application requirements.

5. Production Quantity – Production volume helps determine the suitable mould configuration, including single-cavity or multi-cavity tooling.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility
Renovator Appliances Ltd supports precision plastic injection moulding for customized air curtain components and other appliance parts.

In-House Mould Manufacturing
Dedicated mould manufacturing capabilities help maintain better control over mould geometry, tooling quality, and production consistency.

OEM & ODM Manufacturing
Customized air flow divider components can be developed according to customer drawings, samples, CAD models, and product requirements.

Quality Assurance
Inspection procedures are followed across material selection, mould development, injection moulding, dimensional checking, and finished-component quality.

Cost-Effective Manufacturing
Optimized mould design and efficient injection moulding processes can support economical production for both smaller and higher-volume requirements.

Frequently Asked Questions

1. What is an Air Curtain Plastic Air Flow Divider?
An air flow divider is a plastic component designed to separate or organize internal airflow passages within an air curtain assembly. Its geometry can be customized according to the product's internal airflow arrangement.

2. Which plastic materials can be used for an Air Curtain Plastic Air Flow Divider?
ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon, Glass-Filled Nylon, and suitable flame-retardant plastic grades can be considered depending on the application requirements.

3. Can the air flow divider mould be customized?
Yes. The mould can be customized according to customer drawings, 3D CAD models, samples, dimensions, mounting features, divider geometry, and production requirements.

4. Can ribs, partitions, mounting points, and locating features be included?
Yes. Features such as airflow partitions, guide surfaces, reinforcing ribs, bosses, clips, slots, mounting points, and locating features can be incorporated according to the component design.

5. Is the Air Curtain Plastic Air Flow Divider suitable for bulk production?
Yes. The mould can be developed for repeatable injection moulding production, with cavity configuration selected according to required production volume, component geometry, and manufacturing requirements.
