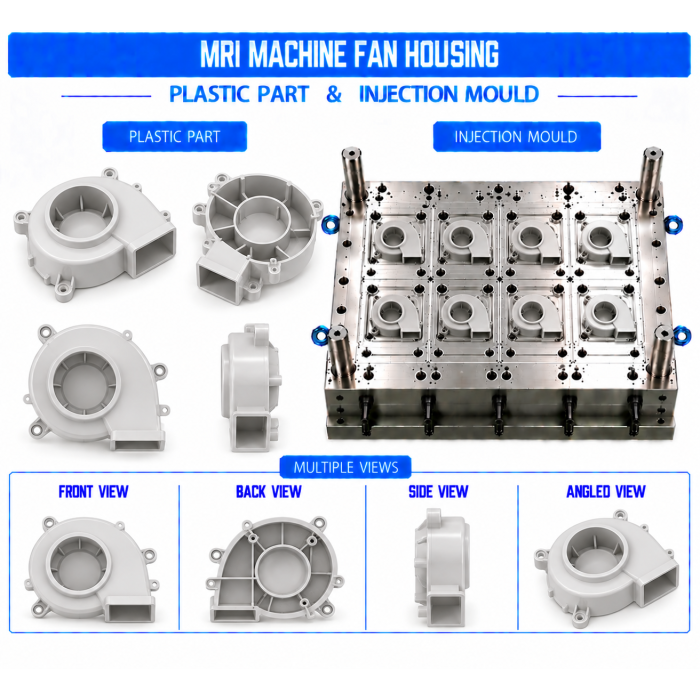

MRI Machine Plastic Fan Housing Mould and Moulding Services | Renovator Appliances Ltd

Introduction

Renovator Appliances Ltd manufactures MRI Machine Plastic Fan Housing Moulds and provides precision injection moulding services for fan and airflow-support assemblies used in MRI equipment. The fan housing is designed to securely accommodate a fan assembly while providing structural support, controlled airflow pathways, mounting provisions, and proper integration with the surrounding equipment structure.

Custom fan housings can be developed according to OEM drawings, 3D CAD models, product samples, fan dimensions, mounting arrangements, airflow openings, cable-routing requirements, and surface-finish specifications. The moulding process is suitable for customized components as well as repeat production requirements.

Key Features

• Precision-engineered fan housing design
• Accurate fan mounting and positioning
• Controlled internal airflow passage
• Custom fan diameter and mounting geometry
• Integrated mounting bosses and fixing points
• Provision for cable routing and retention
• Consistent wall thickness
• Reinforcing ribs for structural stability
• Smooth, matte, textured, or customized surface finish
• Customized colours available
• Accurate dimensional fitment
• Suitable for prototype and production quantities

Industrial Applications

Manufacturing Process

1. Product Design & CAD Analysis – Review of fan dimensions, housing geometry, mounting locations, airflow path, and assembly requirements.
2. DFM & Mould Feasibility – Analysis of wall thickness, ribs, bosses, draft angles, mounting points, and ejection requirements.
3. Precision Mould Design – Development of the injection mould according to the approved housing geometry.
4. Mould Manufacturing – Precision machining and finishing of mould components.
5. Material Selection – Selection of suitable engineering thermoplastic according to mechanical, dimensional, and environmental requirements.
6. Injection Moulding – Controlled injection of plastic material into the mould cavity.
7. Cooling & Ejection – Controlled cooling followed by safe component ejection.
8. Trimming & Finishing – Removal of gates, runners, and excess material.
9. Dimensional Inspection – Checking fan mounting dimensions, airflow openings, bosses, ribs, and critical interfaces.
10. Final Quality Inspection – Visual, dimensional, and assembly-fitment inspection before packaging and dispatch.

Raw Materials

Depending on the component design and application requirements, suitable materials may include:

• ABS
• PC-ABS
• Polycarbonate (PC)
• PP
• PBT
• Nylon for application-specific requirements
• Other suitable engineering thermoplastics
• Customized OEM plastic compounds

The final material should be selected according to the required mechanical strength, dimensional stability, surface finish, environmental conditions, cleaning requirements, and equipment-specific specifications.

Quality Control

Renovator Appliances Ltd checks MRI Machine Plastic Fan Housings for:

• Overall dimensional accuracy
• Fan mounting diameter and geometry
• Mounting-hole positions
• Airflow opening dimensions
• Internal clearance
• Rib and boss dimensions
• Cable-routing features
• Wall-thickness consistency
• Warpage and deformation
• Flash and moulding defects
• Surface finish
• Material consistency
• Overall assembly fitment

Buyer Guide

Before ordering an MRI Machine Plastic Fan Housing mould or moulding service, buyers should provide:

• 3D CAD drawing or 2D engineering drawing
• Existing fan housing sample, if available
• Fan dimensions and mounting details
• Required airflow opening dimensions
• Overall housing dimensions
• Required material specification
• Mounting and fixing details
• Cable-routing requirements
• Required production quantity
• Colour requirement
• Surface-finish requirement
• Required mould cavity configuration
• OEM dimensional specifications
• Applicable component-specific requirements

Frequently Asked Questions

1. Can Renovator Appliances Ltd manufacture custom MRI fan housings?

Yes. Custom fan housings can be manufactured according to CAD drawings, product samples, fan dimensions, mounting requirements, and OEM specifications.

2. Can the housing be designed for a specific fan size?

Yes. The housing geometry can be customized according to the required fan diameter, mounting pattern, depth, clearance, and surrounding assembly dimensions.

3. Which materials can be used?

Suitable options may include ABS, PC-ABS, PC, PP, PBT, Nylon, and other engineering thermoplastics, depending on the component requirements.

4. Can mounting bosses and reinforcing ribs be integrated?

Yes. Mounting bosses, ribs, locating features, screw-fixing points, clips, and other structural features can be incorporated into the mould design.

5. Can the fan housing include cable-routing provisions?

Yes. Cable channels, clips, guides, and other suitable routing features can be incorporated according to the approved design.

6. Can multi-cavity moulds be manufactured?

Yes. Multi-cavity configurations can be considered for suitable fan housing components based on component size, mould complexity, and production volume.

7. Does Renovator Appliances Ltd provide both mould manufacturing and injection moulding?

Yes. Renovator Appliances Ltd provides custom mould development and plastic injection moulding services for OEM and contract manufacturing requirements.

Why Choose Renovator Appliances Ltd?

• Precision plastic injection mould design and manufacturing
• Customized MRI equipment component development
• OEM and contract manufacturing support
• Suitable engineering plastic selection
• Accurate fan mounting and housing fitment
• Controlled injection moulding processes
• Dimensional and visual quality inspection
• Customized dimensions, colours, and finishes
• Prototype and production support
• Multi-cavity moulding options for suitable components
• Technical assistance during mould development
• Manufacturing support from Greater Noida and Delhi NCR for customers across India
