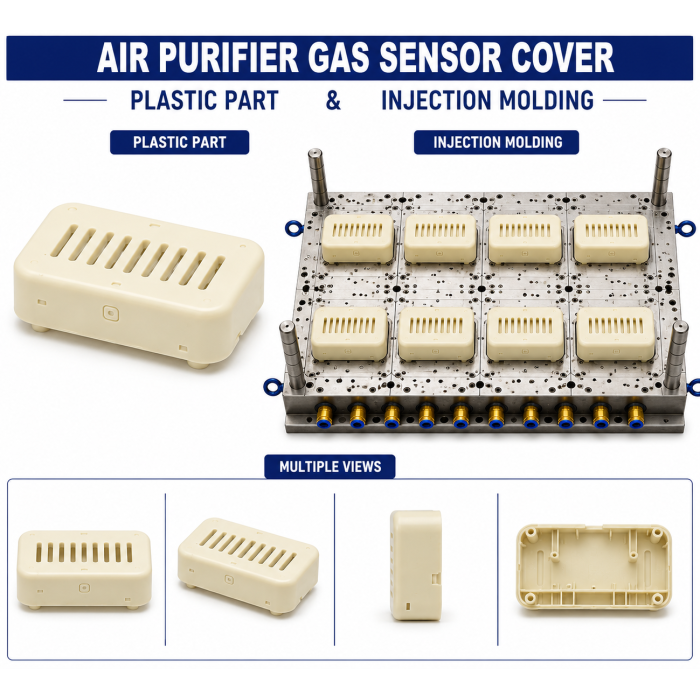

Air Purifier Plastic Gas Sensor Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Air Purifier Plastic Gas Sensor Cover is a precision injection-moulded plastic protective component used to enclose and protect the gas or air-quality sensor installed inside an air purifier. The cover provides a controlled protective structure around the sensor while allowing the required surrounding air to reach the sensing element through appropriately designed openings or ventilation passages.

The cover is developed according to the sensor size, sensing-area position, airflow requirement, PCB arrangement, mounting method, and available internal space. It can include ventilation slots, sensor openings, locating ribs, clips, screw bosses, cable clearances, and PCB mounting interfaces according to the air purifier design.

Renovator Appliances Ltd provides complete Air Purifier Plastic Gas Sensor Cover Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, sensor fitment testing, and bulk OEM production.

Key Features

The Air Purifier Plastic Gas Sensor Cover is designed to protect the sensor from accidental contact, mechanical damage, and interference from surrounding internal components while maintaining the required air exposure for sensing.

The cover can be manufactured with ventilation openings, air-entry slots, sensor clearances, locating ribs, snap-fit clips, screw bosses, PCB mounting features, and cable-routing provisions. The opening geometry can be developed according to the sensor manufacturer's requirements so that the plastic cover does not unnecessarily obstruct the sensing path.

Its internal clearance can be accurately controlled to prevent contact with the sensor body or sensing element. The cover can also be designed to separate the sensor from nearby moving or vibrating components such as the fan assembly.

Industrial Applications

The Air Purifier Plastic Gas Sensor Cover is used in air purifiers that incorporate gas, VOC, odor, air-quality, or other environmental sensing modules.

Typical applications include:

• Domestic Air Purifiers

• Residential Air Purification Systems

• Smart Air Purifiers

• Air Quality Monitoring Air Purifiers

• VOC-Sensing Air Purifiers

• Odor-Sensing Air Purifiers

• Commercial Air Purifiers

• Connected Air Purification Equipment

• Multi-Sensor Air Purification Systems

• OEM Air Purification Equipment

The exact cover design depends on the sensor type, sensing area, PCB arrangement, airflow path, sensor location, mounting method, and purifier cabinet structure.

Manufacturing Process

The Air Purifier Plastic Gas Sensor Cover is manufactured through a controlled plastic injection moulding process.

First, the product is designed according to the sensor dimensions, required air exposure, mounting arrangement, PCB location, ventilation requirements, and available installation space. Sensor openings, ventilation slots, mounting bosses, clips, ribs, and cable clearances are incorporated into the design.

A suitable thermoplastic material is selected according to the required rigidity, dimensional stability, operating temperature, and internal appliance conditions. The material is prepared according to its processing requirements and fed into the injection moulding machine.

The plastic is heated and injected into the precision mould cavity under controlled pressure and temperature. The mould forms the cover body, sensor opening, ventilation passages, mounting features, locating ribs, and other required details.

After filling and packing, the component is cooled under controlled conditions to minimize shrinkage and warpage. The mould then opens and the finished cover is ejected.

The moulded component is inspected for sensor clearance, ventilation-opening dimensions, mounting accuracy, warpage, flash, surface quality, and assembly fitment.

Mould Manufacturing Process

The Air Purifier Plastic Gas Sensor Cover Mould is designed according to the cover's sensor opening, ventilation geometry, mounting features, wall thickness, production quantity, and expected mould life.

The mould incorporates the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. Particular attention is given to the ventilation openings and internal sensor-clearance geometry because these features directly affect sensor access and assembly fitment.

For designs containing undercuts, snap-fit clips, side openings, or complex ventilation geometry, suitable slides, lifters, cores, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is carried out using the selected plastic material.

Trial components are checked for sensor opening dimensions, ventilation pattern, wall thickness, mounting features, sensor clearance, warpage, flash, surface finish, and actual sensor assembly fitment before production approval.

Raw Materials

The material for an Air Purifier Plastic Gas Sensor Cover should provide adequate rigidity, dimensional stability, and suitable temperature performance while maintaining the required sensor openings accurately.

Depending on the application, ABS, PP, HIPS, PC-ABS, or PBT can be considered. ABS and PC-ABS are suitable where rigidity and dimensional accuracy are important. PP can be considered for lightweight designs, while PBT may be selected where improved dimensional and temperature performance is required.

Where the cover is positioned near heat-generating electronic components, an appropriate heat-resistant or flame-retardant grade can be selected according to the customer's technical requirements.

The final plastic grade should be selected according to the sensor operating environment, temperature, vibration, required rigidity, dimensional tolerances, ventilation design, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic Gas Sensor Cover focuses on accurate sensor clearance, ventilation geometry, and secure mounting.

The finished component can be checked for overall length, width, height, sensor-opening dimensions, ventilation-slot dimensions, wall thickness, mounting-hole position, clip dimensions, locating-feature position, and internal sensor clearance according to the approved drawing.

The moulded component is also inspected for flash, short shots, sink marks, warpage, cracks, burrs, weld lines, flow marks, and other surface defects.

Assembly testing can be performed using the actual gas sensor, PCB, wiring, mounting frame, and air purifier cabinet to verify proper positioning and clearance. Where required, the completed sensor assembly can also be functionally checked to confirm that the plastic cover does not obstruct the intended sensing-air path.

Production Capacity

Production capacity depends on the cover size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

Because gas sensor covers are generally relatively small components, multi-cavity moulds can be considered for higher-volume production where the geometry and required precision permit it.

For example, a 4-cavity mould operating with a 20-second cycle has a theoretical output of approximately 720 pieces per hour before inspection, material handling, machine downtime, mould maintenance, and other production losses.

Final production capacity should be established according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Gas Sensor Cover Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing sensor-cover sample, gas sensor, PCB, or complete sensor assembly.

Important specifications include sensor dimensions, sensing-area position, sensor clearance, ventilation-opening dimensions, PCB mounting arrangement, cable routing, mounting method, operating temperature, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual sensor and PCB assembly is recommended because the cover must maintain the correct clearance and airflow access around the sensing element.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic sensor, electronic, airflow, and structural components used in air purifiers and other home appliances.

For the Air Purifier Plastic Gas Sensor Cover, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, sensor fitment testing, assembly validation, and bulk OEM production.

The cover can be developed according to the customer's actual sensor assembly, including specific sensor dimensions, ventilation openings, mounting features, PCB interface, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the gas sensor, PCB, sensor cover, airflow path, mould, plastic material, and final air purifier assembly.

Frequently Asked Questions (FAQ)

1. What is an Air Purifier Plastic Gas Sensor Cover?

An Air Purifier Plastic Gas Sensor Cover is an injection-moulded plastic protective component that houses and protects a gas or air-quality sensor while allowing the required surrounding air to reach the sensing element.

2. Which plastic materials are suitable for a Gas Sensor Cover?

Depending on the application, ABS, PP, HIPS, PC-ABS, or PBT can be considered. Material selection depends on rigidity, dimensional stability, temperature, vibration, sensor clearance, and customer requirements.

3. Can the Gas Sensor Cover be customized?

Yes. The cover can be customized according to sensor dimensions, sensing-area location, ventilation openings, mounting features, PCB interface, cable routing, wall thickness, colour, and surface finish.

4. Does the Gas Sensor Cover need ventilation openings?

Generally, the cover design should provide the sensor with the required access to surrounding air. The opening size and location should be established according to the sensor and air purifier design so that the cover does not unnecessarily restrict the sensing path.

5. Can Renovator manufacture both the Gas Sensor Cover mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, sensor fitment testing, assembly validation, and bulk production according to customer requirements.
