Product Overview

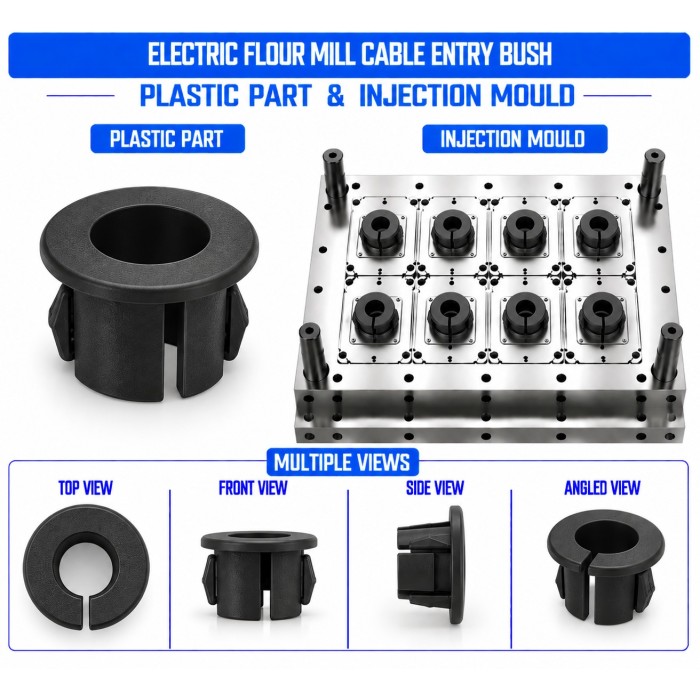

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Cable Entry Bush Mould and Moulding Service for manufacturing precision-moulded plastic cable entry bushes used in domestic and commercial electric flour mills. The cable entry bush is designed to provide a protected passage for electrical wires or power cables through the appliance housing while helping maintain cable positioning and reducing direct contact between the cable and the housing edge.

The cable entry bush can be developed according to the cable diameter, housing opening, wall thickness, cable routing arrangement, mounting method, and required clearance. Precision plastic injection moulding supports consistent dimensions, accurate cable openings, smooth edges, secure fitment, and repeatable production quality.

Key Features

• Precision-engineered plastic cable entry bush

• Designed to protect cables passing through housing openings

• Accurate cable passage and housing-opening dimensions

• Suitable for different cable and wire diameters

• Snap-fit, press-fit, push-fit, or retaining-lip designs where required

• Rounded internal edges for smoother cable contact

• Retaining grooves, lips, flanges, ribs, or locking features where required

• Helps organize cable routing through the appliance enclosure

• Controlled wall thickness for consistent moulding

• Suitable for customized colours and surface finishes

• Compact design for limited installation spaces

• Consistent dimensions for repeated assembly

• Suitable for OEM, ODM, and customized electric flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cable entry bush is developed according to the cable diameter, housing opening, enclosure wall thickness, cable routing path, mounting location, and surrounding component clearances. The required insertion method, retention arrangement, cable-contact geometry, wall thickness, and draft angles are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the cable entry bush geometry, internal opening, outer profile, retaining features, and mounting arrangement. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to achieve accurate formation of the bush.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, mould assembly, and trial runs are performed as required.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and cable entry bush geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The cable opening, retaining groove, flange, mounting surfaces, and cable-contact edges are inspected and finished as required before the component is prepared for assembly.

6. Quality Inspection

Finished cable entry bushes are inspected for dimensional accuracy, cable opening size, housing fitment, retaining features, surface quality, flash, deformation, and proper integration with the intended flour mill housing.

Raw Materials

The final plastic grade should be selected according to the cable type, required flexibility, housing interface, operating temperature, vibration, mechanical requirements, and electrical environment. Where the bush is positioned near electrical or heat-generating components, material suitability should be validated for the actual operating conditions.

For applications requiring significant cable strain relief or flexible sealing, a suitable elastomeric material such as TPE or TPU may be considered where appropriate to the design.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, cable-opening forming section, retaining features, parting surfaces, cooling system, and ejection system are inspected.

• Dimensional Inspection: Overall dimensions, internal cable opening, outer diameter/profile, wall thickness, retaining groove, flange, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, burn marks, weld lines, warpage, cracks, scratches, and other moulding defects.

• Cable Fitment Inspection: The bush is checked against the specified cable or wire diameter for suitable passage and fitment.

• Housing Fitment Inspection: Retention and engagement with the specified flour mill housing opening are verified according to the approved design.

• Packaging Inspection: Finished components are protected against deformation, scratches, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Cable Entry Bush Mould and Moulding Service, buyers should provide the cable diameter and profile, housing-opening dimensions, enclosure wall thickness, required bush dimensions, mounting or retention method, cable routing arrangement, material preference, colour, surface finish, and estimated production quantity where available.

For new product development, special attention should be given to the cable-contact surface, opening size, housing retention, cable movement, strain-relief requirements, operating temperature, and proximity to electrical or heat-generating components. A 2D engineering drawing, 3D CAD model, approved sample, cable sample, or housing sample can be provided for mould development and manufacturing evaluation.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Suitable injection moulding capabilities support consistent production of plastic cable entry bushes with repeatable dimensions, accurate cable openings, and reliable housing fitment.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the cable profile, housing opening, retention method, production volume, and component specifications.

OEM & ODM Manufacturing

Customized cable entry bushes can be developed and manufactured according to customer drawings, CAD models, samples, specifications, or product-development requirements.

Quality Assurance

Raw materials, moulds, dimensions, cable fitment, housing engagement, appearance, and critical interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design and controlled injection moulding processes can support economical production for development quantities as well as larger-volume manufacturing requirements.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Cable Entry Bush?

It is a moulded plastic component fitted around a housing opening to provide a defined passage for electrical cables while helping protect the cable from direct contact with the enclosure edge.

2. Which plastic materials can be used for a cable entry bush?

PP, Nylon/PA, PBT, ABS, PC+ABS, POM/Acetal, HDPE, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered depending on the required flexibility, strength, dimensional stability, temperature, and electrical characteristics.

3. Which steel is suitable for the cable entry bush mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, and surface finish.

4. Can the cable entry bush be customized according to the cable size?

Yes. The internal cable opening, outer profile, flange, retaining groove, mounting arrangement, dimensions, colour, texture, and surface finish can be customized according to the cable and flour mill housing design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic cable entry bushes, subject to the required design and production specifications.
