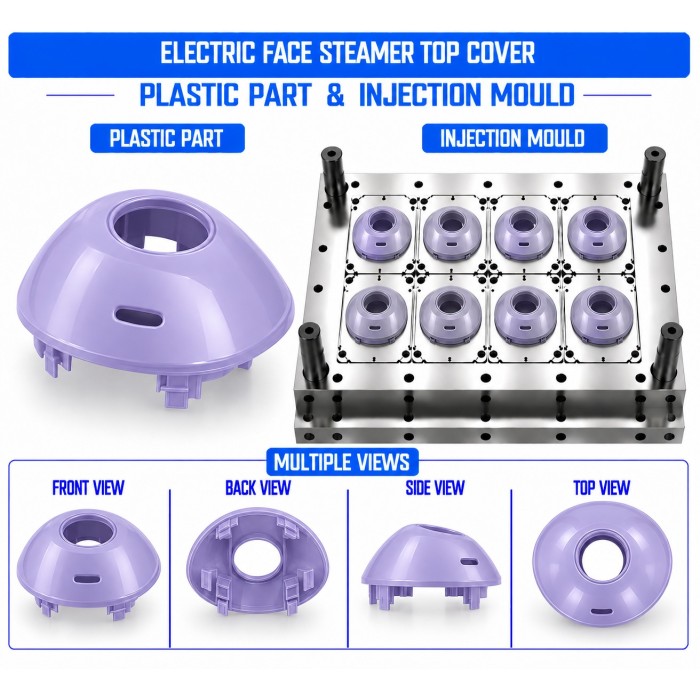

Electric Face Steamer Plastic Top Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Face Steamer Plastic Top Cover Mould and Moulding Service for manufacturing precision-moulded plastic top covers used in electric face steamers and facial steaming appliances. The top cover forms the upper external section of the appliance and helps protect internal components while providing the required interfaces for the steam nozzle, controls, water tank, and other functional components.

The top cover can be developed according to the overall face steamer dimensions, internal component arrangement, steam outlet location, control-panel position, water tank interface, ventilation requirements, mounting method, and enclosure design. Precision injection moulding supports consistent dimensions, controlled wall thickness, accurate assembly interfaces, and a clean external surface suitable for OEM and customized appliance production.

Key Features

• Precision-engineered plastic top cover for electric face steamers

• Customized dimensions according to the appliance design

• Protective enclosure for internal components

• Accurate interfaces for steam nozzle and outlet assembly

• Provision for control buttons, switches, indicators, or display openings

• Water tank and filling-area clearance where required

• Suitable mounting bosses, posts, clips, tabs, ribs, and locating features

• Cable and internal-component clearance provisions

• Ventilation openings where required by the design

• Controlled wall thickness for dimensional consistency

• Reinforced mounting and fastening areas

• Smooth and uniform external surface finish

• Customized colour, texture, and surface appearance

• Consistent dimensions for repeatable assembly

• Suitable for OEM, ODM, and customized face steamer designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The top cover is developed according to the overall appliance dimensions, internal component layout, steam nozzle position, water tank arrangement, control interface, mounting points, ventilation requirements, and lower-housing interface. Wall thickness, draft angles, ribs, bosses, clips, openings, clearances, and aesthetic requirements are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the top-cover geometry, external profile, internal ribs, mounting bosses, openings, clips, and locating features. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to support accurate moulding and consistent surface quality.

3. Mould Manufacturing

The mould components are precision-machined, assembled, finished, and inspected. P20 Steel, H13 Steel, S136 Steel, or another suitable mould material can be selected according to production quantity, expected mould life, dimensional requirements, and surface-finish requirements.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and top-cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The top cover is checked for flash, sink marks, warpage, scratches, burn marks, and other visible defects. Secondary trimming or finishing operations can be performed where required.

6. Quality Inspection

Finished top covers are inspected for dimensions, wall thickness, mounting features, steam nozzle interfaces, control openings, water tank clearances, ventilation features, surface quality, and proper fitment with the complete face steamer assembly.

Raw Materials

The final plastic grade should be selected according to the actual operating temperature, steam and moisture exposure, mechanical requirements, impact conditions, electrical environment, and location of the top cover within the appliance. Areas located close to the steam outlet or heat-generating components should be evaluated and the selected material validated for the actual operating conditions.

Quality Control

• Raw Material Inspection: Verification of the specified plastic grade, colour, and incoming material condition.

• Mould Inspection: Checking cavity and core geometry, parting line, cooling system, venting, ejection mechanism, and mould dimensions.

• Dimensional Inspection: Measurement of overall dimensions, wall thickness, bosses, ribs, openings, mounting points, and critical interfaces.

• Visual Inspection: Checking for flash, short shots, sink marks, burn marks, weld lines, warpage, scratches, and other cosmetic defects.

• Steam Nozzle Interface Inspection: Verification of proper alignment and clearance around the steam nozzle and outlet assembly.

• Component Fitment Inspection: Checking interfaces with the water tank, controls, internal components, and lower housing.

• Assembly Inspection: Verification of proper alignment, fastening, clips, snap-fits, and overall enclosure integration.

• Packaging Inspection: Protection of finished covers against scratches, deformation, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Electric Face Steamer Plastic Top Cover Mould and Moulding Service, buyers should provide:

• Overall top-cover dimensions

• 2D engineering drawing or 3D CAD model

• Internal component layout

• Steam nozzle and outlet position

• Water tank dimensions and interface

• Control buttons, switches, or display arrangement

• Mounting and fastening arrangement

• Lower housing mating dimensions

• Required ventilation openings

• Internal component and heat clearances

• Operating temperature and steam/moisture conditions

• Preferred plastic grade

• Required colour, texture, and surface finish

• Expected production quantity and mould-life requirement

• Prototype or sampling requirements before mass production

Providing accurate enclosure and internal-component specifications helps in developing the mould with suitable fitment, clearances, mounting features, surface finish, and assembly compatibility.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides precision injection moulding solutions for customized personal-care appliance components and electric face steamer plastic top covers.

In-House Mould Manufacturing

In-house mould manufacturing capabilities provide better control over cavity geometry, enclosure interfaces, mounting features, dimensional accuracy, and surface finish.

OEM & ODM Manufacturing

Customized top covers can be developed according to customer CAD files, drawings, physical samples, or technical specifications.

Quality Assurance

Quality-control procedures focus on dimensional consistency, surface finish, component fitment, mounting features, steam-nozzle interfaces, and application-specific requirements.

Cost-Effective Manufacturing

Optimized moulding solutions support repeat production, consistent quality, and economical manufacturing for suitable production volumes.

Frequently Asked Questions

1. What is an Electric Face Steamer Plastic Top Cover?

It is a moulded plastic upper enclosure component that protects internal components of an electric face steamer and provides interfaces for the steam nozzle, controls, water tank, and other appliance components.

2. Which materials can be used for a face steamer top cover?

ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon/PA, glass-filled nylon, suitable flame-retardant plastics, and heat-resistant engineering plastics can be considered depending on the required strength, temperature, moisture, electrical, and appearance requirements.

3. Can the top cover be customized according to the face steamer design?

Yes. Dimensions, steam nozzle openings, control interfaces, water tank clearances, mounting features, ventilation openings, clips, ribs, colour, texture, and surface finish can be customized according to the approved appliance design.

4. Which steel is suitable for the top cover mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, detailed geometry, and surface-finish requirements.

5. Can Renovator Appliances Ltd. manufacture both the mould and moulded top cover?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric face steamer plastic top covers according to customer drawings, CAD models, samples, and production specifications.
