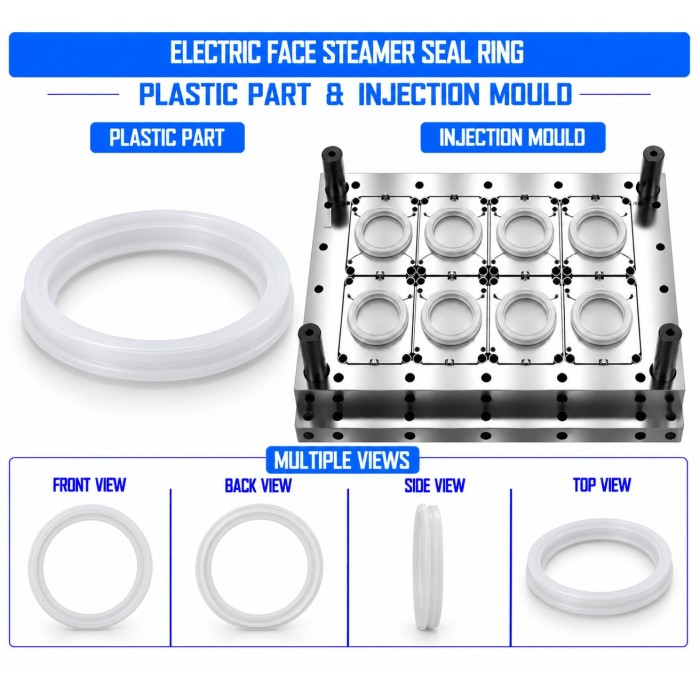

Electric Face Steamer Plastic Seal Ring Mould and Moulding Service

Product Overview

The Electric Face Steamer Plastic Seal Ring is a precision-moulded sealing component designed to provide a controlled interface between mating plastic or appliance components in an electric face steamer. It can be used around water reservoirs, nozzle connections, steam passages, covers, housings, or other assemblies where a properly defined sealing interface is required.

Renovator Appliances Ltd. provides Plastic Seal Ring Mould and Moulding Service for electric face steamers, with customized moulding solutions developed according to the required ring diameter, cross-section, sealing profile, groove dimensions, compression requirements, mating surfaces, and assembly configuration.

The seal ring can be designed with a circular, rectangular, stepped, lip-type, or other customized cross-sectional profile depending on the application. Accurate mould dimensions are important to achieve proper seating, compression, alignment, and repeatable sealing performance during assembly.

For applications involving water, steam, or elevated temperatures, material selection and dimensional design can be evaluated according to the actual operating conditions and compatibility requirements of the complete appliance.

Key Features

• Precision-moulded plastic seal ring for electric face steamers

• Designed for sealing between mating appliance components

• Customized inner and outer diameter

• Controlled ring cross-section and sealing profile

• Suitable for reservoir, nozzle, housing, cover, and steam-path applications

• Can be designed for groove-mounted or surface-mounted installation

• Customized compression and seating arrangement

• Accurate dimensional control for reliable assembly

• Smooth and consistent sealing surfaces

• Suitable for water and moisture-exposed applications where the selected material permits

• Customized colour, profile, dimensions, and surface finish

• OEM and ODM manufacturing support

• Prototype and production tooling support

• Suitable for repeatable injection moulding production

• Designed according to customer drawings, samples, or CAD models

Industrial Applications

Manufacturing Process

1. Product Design & Development

The seal ring is developed according to the geometry of the mating components and the required sealing arrangement. Parameters such as inner diameter, outer diameter, cross-sectional thickness, groove dimensions, compression, mating-surface geometry, installation method, and operating conditions are evaluated.

The component can be developed from 2D engineering drawings, 3D CAD models, samples, or customer specifications. The design is reviewed for suitable draft, parting-line location, mould filling, shrinkage, and dimensional stability.

2. Plastic Mould Design

A dedicated injection mould is designed according to the seal ring's profile and required production quantity. The tooling incorporates suitable cavity and core geometry, runner and gate arrangement, cooling system, ejection arrangement, parting line, and other moulding features.

For rings with complex sealing profiles, stepped sections, lips, grooves, or locating features, the mould can be designed to accurately reproduce the required geometry.

3. Mould Manufacturing

The mould can be manufactured using suitable tooling materials such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, expected mould life, wear requirements, dimensional accuracy, and surface-finish requirements.

Precision CNC machining, EDM, grinding, polishing, fitting, and mould assembly processes are carried out as required. The completed tooling is inspected before injection moulding trials.

4. Injection Moulding

The selected plastic material is processed through an appropriate injection moulding machine. The molten resin is injected into the mould cavity under controlled pressure and temperature to reproduce the seal ring profile.

Processing parameters such as injection speed, holding pressure, mould temperature, cooling time, and cycle time are optimized to minimize dimensional variation, warpage, flash, and moulding defects.

5. Finishing & Assembly Preparation

After moulding, the seal ring is removed from the mould and inspected for flash, gate marks, short shots, deformation, sink marks, and other visible defects. Excess material is trimmed where required.

The finished ring can then be checked against the mating groove, housing, reservoir, nozzle, cover, or other assembly component to verify correct seating and dimensional compatibility.

6. Quality Inspection

The final moulded seal ring is inspected for critical dimensions such as inner diameter, outer diameter, cross-section, groove engagement, profile height, and overall geometry.

Where applicable, functional checks can include compression, seating, retention, mating-component fitment, water resistance, or steam-interface compatibility according to the customer's product specifications.

Raw Materials

For applications involving direct water or steam exposure, the final material should be selected according to temperature, moisture exposure, compression requirements, flexibility, chemical compatibility, dimensional stability, and the actual sealing function. Where a highly compliant elastomeric seal is required, the appropriate sealing material should be evaluated against the appliance specification rather than selecting a rigid plastic solely for ease of moulding.

Quality Control

Renovator Appliances Ltd. can implement quality checks throughout the mould manufacturing and injection moulding process, including:

• Incoming raw-material verification

• Mould cavity and core dimensional inspection

• Inner-diameter inspection

• Outer-diameter inspection

• Cross-section and profile inspection

• Groove-fit verification

• Compression and seating assessment

• Surface-finish inspection

• Flash and burr inspection

• Warpage and deformation inspection

• Mating-component fitment testing

• Water or moisture interface testing where required

• Steam-interface evaluation where applicable

• Visual inspection

• Batch-to-batch dimensional consistency

• Final assembly inspection

Critical sealing dimensions can be monitored using appropriate measuring instruments according to the approved engineering drawing and tolerance requirements.

Buyer Guide

Before ordering the Electric Face Steamer Plastic Seal Ring Mould and Moulding Service, buyers should provide the following information wherever available:

• Inner diameter

• Outer diameter

• Cross-sectional thickness

• Complete seal-ring profile

• Groove dimensions

• Groove depth and width

• Required compression

• Mating-component dimensions

• Housing or reservoir dimensions

• Nozzle or steam-passage dimensions where applicable

• Required sealing function

• Water or steam exposure conditions

• Operating temperature

• Required flexibility or rigidity

• Preferred plastic or thermoplastic elastomer

• Colour and surface-finish requirements

• Dimensional tolerances

• Expected production quantity

• Required mould life

• Prototype or sample requirements

Providing the complete mating-component geometry and sealing requirements helps in designing the ring profile and mould tolerances for proper seating and repeatable assembly.

Why Choose Renovator Appliances Ltd.?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides precision plastic injection moulding solutions for appliance components requiring controlled dimensions, repeatable production, and application-specific material selection.

In-House Mould Manufacturing

In-house mould manufacturing capabilities support customized seal-ring tooling with accurate cavity and core profiles, suitable gating, cooling, and ejection arrangements.

OEM & ODM Manufacturing

OEM and ODM manufacturing support is available for customized seal rings developed from customer drawings, samples, CAD models, or complete appliance assembly requirements.

Quality Assurance

Dimensional accuracy, sealing profile, groove compatibility, surface quality, and mating-component fitment can be inspected according to approved specifications.

Cost-Effective Manufacturing

Mould and production parameters can be optimized according to component profile, production quantity, material selection, cavity requirements, and expected mould life to support economical volume manufacturing.

Frequently Asked Questions

1. What is an Electric Face Steamer Plastic Seal Ring?

It is a precision-moulded sealing-interface component used between selected mating parts of an electric face steamer, such as a reservoir, housing, cover, nozzle, or steam-path assembly.

2. Which materials can be used for a plastic seal ring?

Depending on the application, materials such as PP, HDPE, TPE, TPU, and other suitable thermoplastic grades can be considered. The material should be selected according to the required flexibility, compression, temperature, moisture, and sealing performance.

3. Can the seal ring dimensions and profile be customized?

Yes. Inner diameter, outer diameter, cross-section, grooves, lips, stepped profiles, locating features, colour, and other dimensions can be customized according to the mating components and sealing requirements.

4. Can the seal ring be used in steam-exposed areas?

Potentially, depending on the selected material and actual operating conditions. Temperature, steam exposure, pressure, compression, and chemical compatibility should be evaluated before final material selection.

5. Can Renovator Appliances Ltd. manufacture the mould as well as the seal rings?

Yes. The service can include mould design, mould manufacturing, plastic injection moulding, quality inspection, and production support for customized Electric Face Steamer Plastic Seal Rings.
