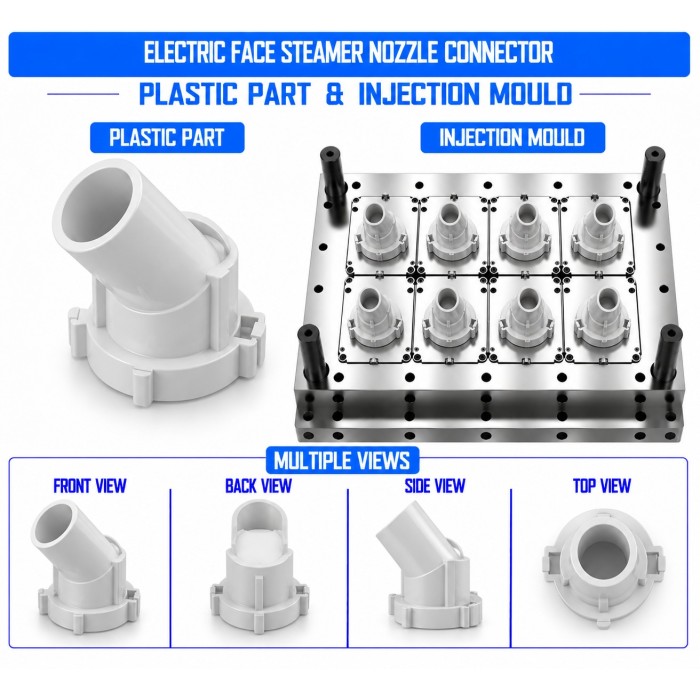

Electric Face Steamer Plastic Nozzle Connector Mould and Moulding Service

Product Overview

The Electric Face Steamer Plastic Nozzle Connector is a precision-moulded plastic component designed to connect and securely interface the steam nozzle with the internal steam passage, outlet assembly, or main housing of an electric face steamer. It helps provide a properly aligned and stable connection between the nozzle and steam delivery system while supporting controlled steam flow toward the user.

Renovator Appliances Ltd. provides Plastic Nozzle Connector Mould and Moulding Service for electric face steamers, with solutions developed according to the required nozzle geometry, steam passage dimensions, connector interface, wall thickness, mounting arrangement, and production requirements. The component can be customized with suitable connection profiles, sealing features, locking mechanisms, ribs, bosses, locating elements, and retention features according to the product design.

The nozzle connector mould can be engineered for accurate internal and external profiles so that the connector properly interfaces with the nozzle, steam duct, housing, or other mating components. Material selection can be considered according to the actual operating temperature, moisture exposure, mechanical requirements, and electrical-appliance specifications.

Key Features

• Precision-moulded plastic nozzle connector for electric face steamers

• Designed for secure connection between nozzle and steam delivery components

• Customized internal steam passage according to required airflow and steam-flow geometry

• Accurate nozzle and housing mating dimensions

• Snap-fit, press-fit, screw-fit, or other customized connection arrangements

• Optional locking tabs, retaining clips, locating ribs, and guide features

• Proper alignment with the steam nozzle and internal steam duct

• Controlled wall thickness for dimensional stability and moulding consistency

• Smooth internal surfaces can be considered to support unobstructed steam passage

• Suitable provision for sealing or gasket interfaces where required

• Customized colour, texture, surface finish, and appearance

• Designed for repeatable high-volume injection moulding production

• OEM and ODM manufacturing support

• Prototype development and production tooling support

• Suitable for customized electric face steamer designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The nozzle connector is developed according to the complete assembly requirements of the electric face steamer. Important parameters such as nozzle diameter, connector length, internal passage, external profile, wall thickness, mating components, locking arrangement, sealing requirements, and available installation space are evaluated.

2D drawings, 3D CAD models, samples, or customer specifications can be used to develop the component. The design is also reviewed for proper injection moulding feasibility, draft angles, parting-line placement, shrinkage, and dimensional stability.

2. Plastic Mould Design

A dedicated injection mould is designed according to the geometry and production requirements of the nozzle connector. The mould design includes cavity and core configuration, runner and gate arrangement, cooling channels, ejection system, inserts, parting line, and required moulding features.

For connectors having internal passages or complex profiles, suitable core arrangements and tooling features are incorporated to achieve accurate internal geometry and consistent part release.

3. Mould Manufacturing

The mould is manufactured using suitable tooling materials such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, wear requirements, surface-finish requirements, and expected mould life.

Precision CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly processes are carried out to achieve the required cavity and core dimensions. The mould is inspected before production trials.

4. Injection Moulding

The selected thermoplastic material is dried or conditioned as required and processed through an injection moulding machine. The molten plastic is injected into the mould cavity under controlled pressure and temperature.

Injection speed, holding pressure, cooling time, mould temperature, and other processing parameters are optimized to achieve consistent connector dimensions, proper filling, reduced warpage, and reliable production repeatability.

5. Finishing & Assembly Preparation

After moulding, the connector is removed from the mould and inspected for gate marks, flash, short shots, sink marks, deformation, and other visible defects. Excess material is trimmed where necessary.

The finished component can then be checked against the mating nozzle, steam duct, housing, gasket, seal, or other assembly components to verify proper fit and retention.

6. Quality Inspection

The final moulded nozzle connector is inspected for critical dimensions, internal passage dimensions, connector diameter, wall thickness, locking features, mounting points, surface finish, and overall geometry.

Functional checks can include nozzle fitment, connector retention, steam-path alignment, sealing interface, and assembly compatibility according to the customer's product requirements.

Raw Materials

The final material should be selected according to the actual operating temperature, steam exposure, mechanical loading, dimensional requirements, regulatory requirements, and compatibility with the complete face steamer assembly.

Quality Control

Renovator Appliances Ltd. can implement quality checks throughout the mould manufacturing and plastic injection moulding process, including:

• Incoming plastic raw-material verification

• Mould cavity and core dimensional inspection

• Nozzle connector diameter inspection

• Internal steam-passage dimensional inspection

• Wall-thickness verification

• Connector mating-dimension inspection

• Snap-fit and locking-feature inspection

• Flash and burr inspection

• Visual surface-quality inspection

• Warpage and deformation inspection

• Nozzle fitment testing

• Steam-path alignment verification

• Housing and internal-component fitment

• Sample assembly validation

• Batch-to-batch dimensional consistency

Critical dimensions can be inspected using suitable measuring instruments according to the component drawing and customer quality requirements.

Buyer Guide

Before ordering the Electric Face Steamer Plastic Nozzle Connector Mould and Moulding Service, buyers should provide the following information wherever available:

• Complete component dimensions

• 2D engineering drawing or 3D CAD model

• Nozzle outer and inner diameter

• Connector internal steam-passage dimensions

• Mating component dimensions

• Required connector length and profile

• Snap-fit, screw-fit, press-fit, or locking requirements

• Sealing or gasket requirements

• Required wall thickness

• Required plastic material or preferred resin grade

• Operating temperature and steam/moisture exposure

• Colour and surface-finish requirements

• Required dimensional tolerances

• Expected production quantity

• Required mould life

• Prototype or sample requirements

• Packaging and assembly requirements

Providing the complete nozzle and mating-component specifications helps in developing the mould with suitable tolerances and ensures better assembly compatibility.

Why Choose Renovator Appliances Ltd.?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides injection moulding solutions for precision plastic components used in electrical and personal-care appliances, with production parameters selected according to component geometry and material requirements.

In-House Mould Manufacturing

Dedicated mould manufacturing capabilities support the development of customized nozzle connector moulds with appropriate cavity, core, cooling, gating, and ejection arrangements.

OEM & ODM Manufacturing

OEM and ODM solutions are available for customers requiring customized nozzle connectors manufactured according to their drawings, samples, product concepts, or assembly requirements.

Quality Assurance

Dimensional accuracy, connector fitment, steam-passage geometry, surface quality, and production consistency can be inspected according to the approved component specifications.

Cost-Effective Manufacturing

Mould design and injection moulding parameters can be optimized according to production volume, cavity requirements, material selection, component complexity, and expected mould life to support economical large-scale manufacturing.

Frequently Asked Questions

1. What is an Electric Face Steamer Plastic Nozzle Connector?

It is a moulded plastic component used to connect and align the steam nozzle with the internal steam passage, duct, housing, or outlet assembly of an electric face steamer.

2. Which plastic materials can be used for a nozzle connector?

Depending on the application, materials such as ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon/PA, Glass-Filled Nylon, or suitable Flame-Retardant Plastic grades can be considered. Final selection depends on temperature, moisture, mechanical, and product specifications.

3. Can the nozzle connector be customized?

Yes. Dimensions, internal steam passage, connector profile, mounting arrangement, snap-fit features, locking tabs, ribs, sealing interfaces, colour, texture, and surface finish can be customized according to the product design.

4. Which mould steel can be used for this component?

P20 Steel, H13 Steel, and S136 Steel can be considered depending on production volume, required mould life, wear resistance, dimensional requirements, and surface-finish specifications.

5. Can Renovator Appliances Ltd. provide both mould manufacturing and plastic production?

Yes. The service can include customized injection mould design, mould manufacturing, plastic injection moulding, quality inspection, and production support for the Electric Face Steamer Plastic Nozzle Connector.
