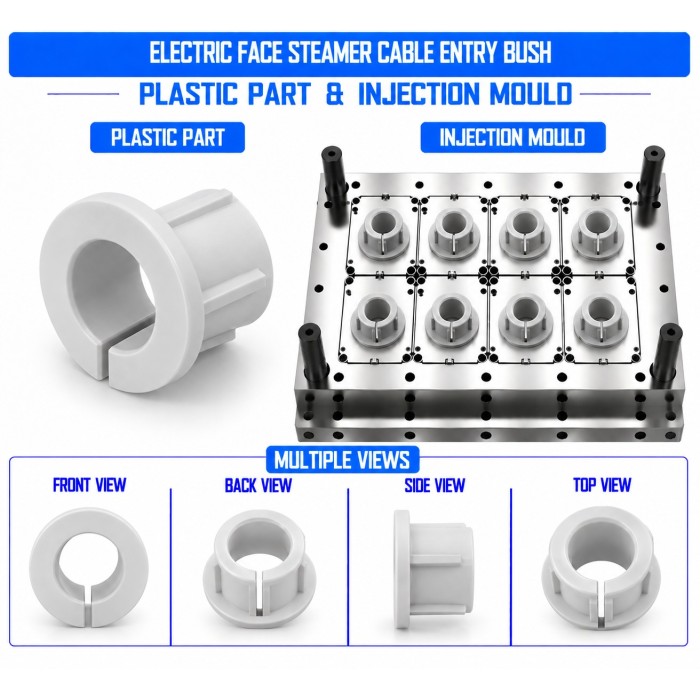

Electric Face Steamer Plastic Cable Entry Bush Mould and Moulding Service

Product Overview

The Electric Face Steamer Plastic Cable Entry Bush is a precision-moulded plastic component designed to protect and guide the electrical power cable where it enters or exits the housing of an electric face steamer. It helps provide a controlled cable-entry interface while reducing direct contact between the cable and the sharp or rigid edges of the appliance housing.

Renovator Appliances Ltd. provides Plastic Cable Entry Bush Mould and Moulding Service for electric face steamers, with customized solutions developed according to the cable diameter, housing opening, cable routing arrangement, wall thickness, retention method, and assembly requirements.

The cable entry bush can be designed with a suitable internal cable passage and external housing profile to provide secure positioning within the appliance enclosure. Depending on the design, features such as snap-fit ribs, retaining shoulders, grooves, flanges, locking tabs, strain-relief sections, or locating features can be incorporated.

Material selection should be based on the actual cable-contact requirements, flexibility, abrasion resistance, operating temperature, electrical-appliance specifications, and expected mechanical movement of the cable.

Key Features

• Precision-moulded plastic cable entry bush for electric face steamers

• Protects cable against direct contact with housing edges

• Provides a controlled cable-entry and routing interface

• Customized internal diameter according to cable size

• Accurate external profile for housing installation

• Snap-fit, press-fit, groove-fit, or flange-mounted designs

• Optional retaining shoulders and locking features

• Suitable strain-relief and cable-positioning features

• Controlled wall thickness for consistent moulding

• Smooth cable-contact surface

• Customized dimensions, colour, and surface finish

• Designed for repeated assembly and production consistency

• OEM and ODM manufacturing support

• Suitable for prototype and high-volume production

• Manufactured according to customer drawings, samples, or CAD models

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cable entry bush is developed according to the appliance housing opening and power-cable dimensions. Important parameters such as cable outer diameter, housing-wall thickness, entry-hole diameter, bush length, insertion depth, retention arrangement, and cable movement are evaluated.

The design can incorporate suitable strain-relief, locking, positioning, and cable-protection features. 2D engineering drawings, 3D CAD models, samples, or customer specifications can be used for product development.

2. Plastic Mould Design

A dedicated injection mould is designed according to the bush geometry and required production quantity. The tooling includes appropriate cavity and core configuration, runner and gate arrangement, cooling channels, ejection system, parting line, and other moulding features.

For components with an internal cable passage, the core geometry is developed to maintain the required internal diameter and wall thickness. Suitable draft and part-release considerations are incorporated into the mould design.

3. Mould Manufacturing

The mould can be manufactured using suitable tooling materials such as P20 Steel, H13 Steel, or S136 Steel, depending on expected production volume, mould life, wear requirements, dimensional accuracy, and surface-finish requirements.

Precision CNC machining, EDM, grinding, polishing, fitting, and mould assembly processes are performed as required. The completed mould is inspected before production trials.

4. Injection Moulding

The selected plastic material is processed through an appropriate injection moulding machine. Molten plastic is injected into the mould cavity under controlled temperature and pressure conditions.

Injection speed, holding pressure, mould temperature, cooling time, and cycle parameters are optimized to achieve consistent internal and external dimensions, proper filling, controlled shrinkage, and repeatable production.

5. Finishing & Assembly Preparation

After moulding, the cable entry bush is removed from the mould and inspected for flash, gate marks, short shots, deformation, sink marks, and other visible defects.

Any required gate trimming or finishing is completed before assembly. The finished bush can then be checked with the actual cable and appliance housing opening to verify insertion, retention, cable passage, and fitment.

6. Quality Inspection

The final moulded cable entry bush is inspected for critical dimensions including internal diameter, external diameter, overall length, flange dimensions, retaining features, and wall thickness.

Functional checks can include cable insertion, housing fitment, retention, cable movement, strain-relief performance, and contact with the housing according to the customer's product requirements.

Raw Materials

The final material should be selected according to the cable-entry function, cable-contact requirements, flexibility, abrasion exposure, operating temperature, electrical-appliance specifications, and applicable safety requirements.

Quality Control

Renovator Appliances Ltd. can implement quality checks throughout the mould manufacturing and injection moulding process, including:

• Incoming raw-material verification

• Mould cavity and core dimensional inspection

• Internal-diameter inspection

• External-diameter inspection

• Overall-length inspection

• Wall-thickness verification

• Cable fitment testing

• Housing-opening compatibility testing

• Retention-feature inspection

• Snap-fit or locking-feature testing

• Strain-relief feature inspection where applicable

• Flash and burr inspection

• Surface-finish inspection

• Warpage and deformation inspection

• Assembly compatibility testing

• Batch-to-batch dimensional consistency

Critical dimensions and fitment characteristics can be checked according to the approved engineering drawing and customer tolerance requirements.

Buyer Guide

Before ordering the Electric Face Steamer Plastic Cable Entry Bush Mould and Moulding Service, buyers should provide the following information wherever available:

• Cable outer diameter

• Cable construction and flexibility requirements

• Housing entry-hole diameter

• Housing-wall thickness

• Bush inner diameter

• Bush outer diameter

• Overall bush length

• Required insertion depth

• Flange or shoulder dimensions

• Snap-fit or locking arrangement

• Required strain-relief arrangement

• Cable movement requirements

• Operating temperature

• Moisture or steam exposure

• Preferred plastic material

• Flame-retardant requirement, if applicable

• Required colour and surface finish

• Dimensional tolerances

• Expected production quantity

• Required mould life

• Prototype or sample requirements

Providing the cable and housing dimensions together helps ensure that the bush provides suitable clearance, retention, cable protection, and assembly compatibility.

Why Choose Renovator Appliances Ltd.?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides precision plastic injection moulding solutions for electrical and personal-care appliance components requiring controlled dimensions and repeatable production.

In-House Mould Manufacturing

In-house mould manufacturing capabilities support customized cable entry bush tooling with accurate cavity and core dimensions, suitable gating, cooling, and ejection systems.

OEM & ODM Manufacturing

OEM and ODM manufacturing support is available for customized cable entry bushes developed from customer drawings, CAD models, samples, or appliance assembly requirements.

Quality Assurance

Dimensional accuracy, cable fitment, housing compatibility, retention features, surface quality, and production consistency can be inspected according to approved specifications.

Cost-Effective Manufacturing

Mould design and production parameters can be optimized according to component complexity, production volume, material selection, cavity requirements, and expected mould life to support economical manufacturing.

Frequently Asked Questions

1. What is an Electric Face Steamer Plastic Cable Entry Bush?

It is a moulded plastic component installed where the electrical cable passes through the face steamer housing. It helps guide and protect the cable from direct contact with the housing edge.

2. Can the cable entry bush be customized for different cable diameters?

Yes. The internal diameter, external profile, overall length, flange, retaining features, and cable-routing arrangement can be customized according to the cable and housing dimensions.

3. Which materials can be used for a cable entry bush?

Depending on the application, PP, HDPE, ABS, HIPS, TPE, TPU, Nylon/PA, PBT, or suitable flame-retardant grades can be considered. The final selection depends on flexibility, temperature, abrasion, electrical-appliance, and mechanical requirements.

4. Can the bush include strain-relief features?

Yes. Where required, the design can incorporate suitable strain-relief, cable-retention, locking, gripping, ribs, shoulders, or other features according to the cable assembly requirements.

5. Can Renovator Appliances Ltd. manufacture both the mould and the cable entry bushes?

Yes. The service can include mould design, mould manufacturing, plastic injection moulding, quality inspection, and production support for customized Electric Face Steamer Plastic Cable Entry Bush components.
