Product Overview

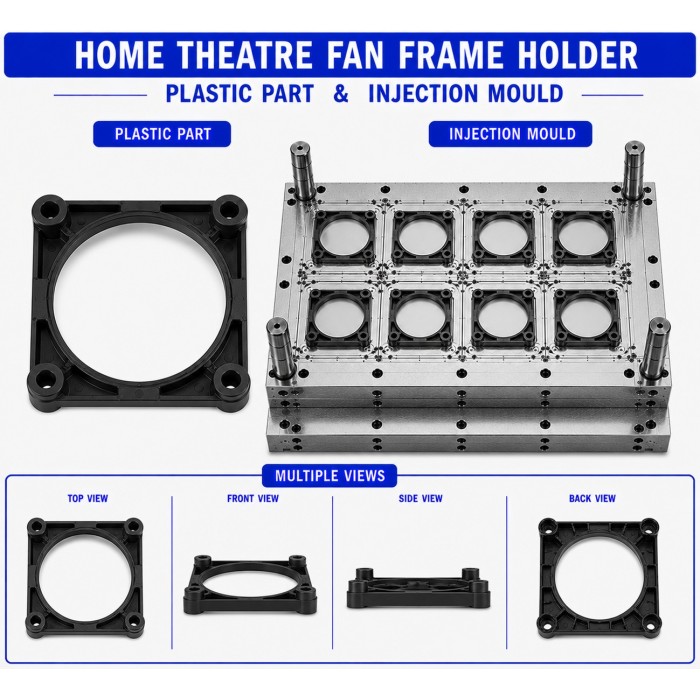

Home Theatre Plastic Fan Frame Holder is a precision injection-moulded plastic component used to hold, position, and support the cooling fan or ventilation fan inside a home theatre speaker or audio-video enclosure. It maintains the fan in the required position and provides a stable interface between the fan assembly and the home theatre cabinet.

The component can be designed with fan mounting holes, screw bosses, locating ribs, clips, ventilation openings, cable-routing provisions, and cabinet mounting features according to the fan size and internal enclosure design.

Renovator Appliances Ltd provides complete Home Theatre Plastic Fan Frame Holder Mould and Moulding Services, including product development, mould design, mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, assembly-fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Fan Frame Holder is designed to provide stable and accurate mounting for the cooling fan used inside a home theatre system. Its frame geometry helps maintain the fan at the required position and can be customized according to the fan's mounting-hole pattern and enclosure dimensions.

The holder can incorporate integrated screw bosses, locating pins, ribs, clips, cable passages, and mounting points to simplify assembly. Properly designed ribs and support sections help provide rigidity while keeping the component lightweight.

The plastic component can be manufactured with a smooth or textured surface and customized in colour according to the home theatre cabinet and internal assembly requirements.

Industrial Applications

The Home Theatre Plastic Fan Frame Holder is used in home theatre and audio-video equipment where a cooling fan is installed to assist with internal heat management.

Typical applications include:

• Home Theatre Systems

• Home Theatre Speaker Systems

• AV Receiver Cabinets

• Audio Amplifier Systems

• Multimedia Speaker Systems

• Surround Sound Systems

• Entertainment Audio Equipment

• Home Audio-Video Equipment

• OEM Home Theatre Assemblies

The exact frame-holder design depends on the fan diameter, fan thickness, mounting-hole pattern, enclosure dimensions, airflow direction, and position of other internal electronic components.

Manufacturing Process

The Home Theatre Plastic Fan Frame Holder is manufactured using plastic injection moulding.

First, the product is designed according to the fan's dimensions and mounting-hole arrangement. The required screw bosses, locating features, ribs, cable-routing openings, and cabinet mounting points are incorporated into the design.

The selected plastic material is prepared according to its processing requirements and fed into the injection moulding machine. The material is heated and injected into the mould cavity under controlled pressure.

The mould cavity forms the external frame, while cores and inserts create the fan opening, mounting holes, bosses, clips, and other required features. After filling and packing, the component is cooled and ejected from the mould.

The finished frame holder is then inspected for dimensions, fan fitment, mounting-hole accuracy, warpage, flash, surface defects, and assembly compatibility.

Mould Manufacturing Process

The Home Theatre Plastic Fan Frame Holder Mould is developed according to the frame geometry, fan opening, mounting pattern, production quantity, and required mould life.

The mould design includes the cavity, core, parting line, gating system, cooling channels, and ejection mechanism. The fan opening and mounting bosses are designed carefully to maintain accurate fan alignment and screw fitment.

After the mould design is finalized, the cavity, core, inserts, and other components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing.

The mould is then assembled and trialled using the selected plastic material. Trial components are checked for fan fitment, mounting-hole position, frame dimensions, warpage, ejection, surface quality, and assembly fitment. Any required tooling corrections are completed before regular production.

Raw Materials

The material for a Home Theatre Plastic Fan Frame Holder should provide sufficient rigidity and dimensional stability to maintain the fan in its intended position.

Depending on the application, materials such as ABS, PP, PC-ABS, HIPS, or engineering-grade plastics can be considered. ABS and PC-ABS are suitable options where a rigid, dimensionally stable component with good appearance is required. PP can be considered for applications where lightweight construction and impact resistance are priorities.

The final material should be selected according to the fan vibration, operating temperature, required rigidity, dimensional accuracy, impact requirements, assembly method, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Fan Frame Holder focuses on ensuring accurate fan positioning and reliable assembly.

The component is checked for overall length, width, height, fan-opening diameter, fan mounting-hole position, screw-boss dimensions, locating features, wall thickness, and cabinet mounting dimensions according to the approved drawing.

The moulded component is also inspected for flash, short shots, sink marks, warpage, cracks, burrs, surface defects, and deformation.

Assembly inspection can be performed by fitting the actual fan into the frame holder to verify mounting-hole alignment, screw fitment, fan clearance, frame rigidity, and proper positioning inside the home theatre cabinet.

Production Capacity

Production capacity depends on the product weight, mould cavity count, injection moulding machine capacity, material, mould design, cycle time, and production efficiency.

For example, a single-cavity mould operating with a 22-second cycle has a theoretical output of approximately 164 pieces per hour. Actual production output depends on machine utilization, inspection, material handling, mould maintenance, and production downtime.

For high-volume requirements, a multi-cavity mould can be considered where the component geometry and production economics are suitable.

Buyer Guide

Before ordering a Home Theatre Plastic Fan Frame Holder Mould and Moulding Service, the buyer should provide the fan's 2D drawing, 3D CAD model, or physical sample.

Important details include fan diameter, fan thickness, mounting-hole pattern, mounting-hole diameter, screw type, required airflow opening, cabinet mounting position, cable-routing requirements, operating temperature, plastic grade, product colour, surface finish, dimensional tolerances, target weight, and expected production quantity.

Providing the actual fan sample along with the home theatre enclosure dimensions helps ensure that the frame holder is developed with the correct fan alignment, mounting position, clearance, and assembly fitment.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in home theatre, audio equipment, and electronic appliances.

For the Home Theatre Plastic Fan Frame Holder, the service can cover the complete process from product development and mould design to precision mould manufacturing, injection moulding, quality inspection, and bulk production.

The component can be developed according to customer drawings, CAD models, fan samples, enclosure requirements, production volumes, and material specifications. This integrated approach helps maintain consistency between the fan, frame holder, mould, plastic material, and final home theatre assembly.

Renovator can support OEM and customized production, including specific fan sizes, mounting patterns, colours, surface finishes, and production quantities.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Fan Frame Holder?

A Home Theatre Plastic Fan Frame Holder is a moulded plastic support component used to securely position and mount a cooling fan inside a home theatre or audio-video enclosure.

2. Which plastic materials can be used for a Fan Frame Holder?

Depending on the application, ABS, PP, PC-ABS, HIPS, and suitable engineering plastics can be considered. Material selection depends on rigidity, vibration, operating temperature, dimensional stability, and assembly requirements.

3. Can the Fan Frame Holder be customized according to the fan?

Yes. The frame holder can be customized according to the fan diameter, thickness, mounting-hole pattern, screw-boss location, fan opening, cable routing, cabinet mounting points, and required clearances.

4. Can the mould be designed for different production volumes?

Yes. The mould configuration can be selected according to the required production quantity. Single-cavity tooling can be suitable for lower-volume production, while multi-cavity tooling may be considered for higher-volume requirements.

5. Can Renovator manufacture both the mould and finished Fan Frame Holders?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, fan assembly-fitment checks, and bulk production according to customer requirements.
