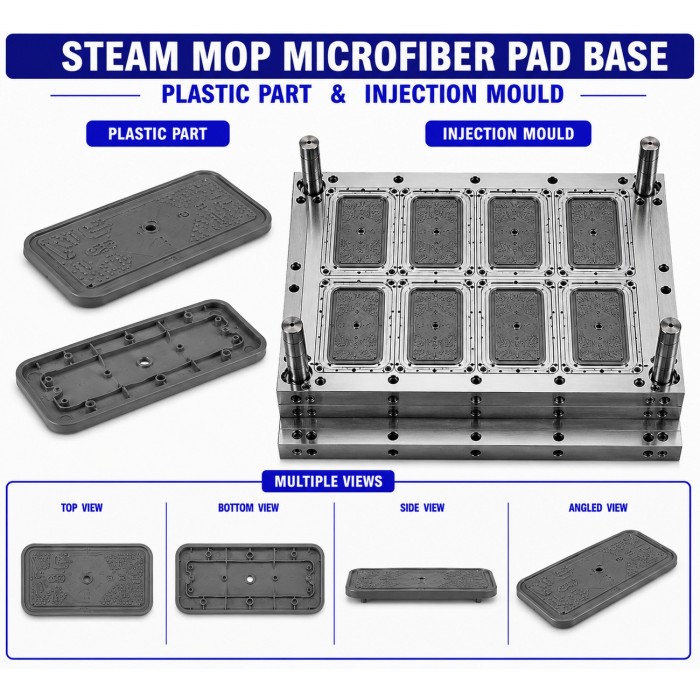

Steam Mop Plastic Microfiber Pad Base Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Microfiber Pad Base Mould and Moulding Service for manufacturing precision plastic bases used to support and attach microfiber cleaning pads in steam mop appliances. The Steam Mop Plastic Microfiber Pad Base forms the structural platform between the steam mop cleaning head and the microfiber pad, helping maintain the required pad position and providing a stable contact surface during floor cleaning.

The base can be customized according to the steam mop cleaning-head dimensions, pad size, attachment method, steam outlet pattern, mounting points, clips, hook-and-loop attachment areas, snap-fit features, and required surface geometry. Precision injection moulding enables consistent dimensions and reliable pad attachment for OEM and bulk production.

Key Features

• Microfiber Pad Support: The plastic base provides a rigid supporting platform for the microfiber cleaning pad.

• Secure Pad Attachment: Clips, snap-fits, hook-and-loop mounting areas, slots, or other attachment features can be incorporated according to the pad design.

• Stable Cleaning Surface: The base helps maintain the microfiber pad in the required position during cleaning.

• Steam Outlet Compatibility: Openings or channels can be incorporated to align the pad base with the steam outlet arrangement.

• Cleaning Head Integration: Mounting points can be designed for accurate attachment to the steam mop cleaning head.

• Lightweight Construction: Plastic construction helps keep the cleaning head lightweight and easier to handle.

• Reinforced Structure: Ribs and support sections can be added to improve stiffness and reduce deformation during use.

• Rounded Edges: Smooth or rounded edges can be incorporated to reduce snagging and support convenient movement across suitable surfaces.

• Custom Design: Pad dimensions, mounting features, steam openings, ribs, colour, texture, and surface finish can be customized.

• Consistent Production: Injection moulding provides repeatable dimensions and consistent attachment features across production batches.

Industrial Applications

Steam Mop Plastic Microfiber Pad Bases are commonly used in:

• Domestic Steam Mops: Supports the reusable microfiber pad attached to the bottom of the cleaning head.

• Steam Floor Cleaners: Provides a mounting platform for floor-cleaning pads.

• Reusable Cleaning Pad Systems: Designed for microfiber pads that can be removed, washed, and reused.

• Steam Cleaning Heads: Forms the lower structural section that interfaces between the cleaning head and pad.

• OEM Floor Cleaning Appliances: Customized bases can be manufactured according to specific steam mop designs.

Manufacturing Process

The manufacturing process begins with the customer's cleaning-head drawing, microfiber pad sample, existing base, 3D CAD model, or complete steam mop assembly. The pad dimensions, cleaning-head interface, attachment method, steam outlet positions, wall thickness, rib structure, mounting points, and overall geometry are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The cavity forms the pad base's outer profile, ribs, mounting points, attachment slots, clips, steam openings, locating features, and other required details.

After cooling, the mould opens and the finished pad base is ejected. The moulded component is inspected for dimensions, pad fitting, cleaning-head compatibility, attachment accuracy, steam opening alignment, surface finish, warpage, and flash.

Trial assembly is performed with the microfiber pad and cleaning head to verify secure attachment, correct alignment, and proper movement of the assembled cleaning head.

Mould Manufacturing Process

1. Product Drawing & Sample Review: Pad dimensions, cleaning-head interface, attachment method, steam openings, and mounting features are evaluated.

2. 3D CAD Base Design: A detailed 3D model is prepared for the microfiber pad base and its attachment features.

3. DFM Evaluation: Wall thickness, ribs, draft angles, parting line, ejection points, and mould-filling requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production volume, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, mould plates, ribs, slots, and other precision features.

6. EDM Machining: EDM can be used for narrow slots, clip features, steam openings, and complex mould details.

7. Surface Finishing: Mould surfaces are polished or textured according to the required appearance and functional requirements.

8. Mould Assembly: Mould components are assembled and accurately aligned.

9. Trial Injection Moulding: Initial pad bases are produced to check filling, dimensions, ribs, mounting features, and surface finish.

10. Pad & Cleaning-Head Fit Testing: Trial bases are assembled with the microfiber pad and cleaning head to verify attachment and alignment.

11. Final Mould Approval: Required mould corrections are completed before regular production.

Raw Materials

• PP (Polypropylene): A lightweight thermoplastic with good flexibility and chemical resistance. It is suitable for many pad-base designs where low weight and practical durability are required.

• ABS (Acrylonitrile Butadiene Styrene): A rigid and impact-resistant plastic with good dimensional stability and surface finish. It can be considered for rigid pad bases requiring a stronger structural feel.

• HIPS (High Impact Polystyrene): An impact-resistant and easy-to-process plastic that can be considered for economical pad-base applications requiring suitable rigidity.

• Nylon: A strong engineering thermoplastic with good mechanical strength and wear resistance. It may be considered for attachment features or designs requiring enhanced mechanical performance.

• POM (Polyoxymethylene): An engineering thermoplastic with good stiffness, dimensional stability, and low friction. It can be considered for specialized attachment or moving features where these properties are beneficial.

• Engineering-Grade Plastic: Specialized grades can be selected where higher strength, dimensional stability, heat resistance, or wear resistance is required.

Quality Control

• Overall Dimension Inspection: Length, width, thickness, and critical dimensions are checked according to approved specifications.

• Microfiber Pad Fit Check: The base is checked to ensure that the microfiber pad fits correctly and remains properly positioned.

• Cleaning-Head Fit Check: Mounting points and interfaces are checked for accurate connection with the cleaning head.

• Attachment Feature Inspection: Clips, slots, hook-and-loop areas, snap-fits, and other pad-retention features are checked for correct dimensions.

• Steam Opening Alignment: Where steam passes through the pad base, opening positions and dimensions are checked against the cleaning-head design.

• Structural Inspection: Ribs and support sections are checked for proper formation and structural integrity.

• Surface Finish Inspection: Visible surfaces are inspected for sink marks, flow marks, scratches, weld lines, uneven texture, and other defects.

• Flash Inspection: Excess plastic around parting lines, clips, slots, and openings is checked.

• Warpage Inspection: The base is inspected for deformation that could affect pad contact or cleaning-head assembly.

• Assembly Testing: The complete base, microfiber pad, and cleaning head can be assembled to verify fit, retention, and movement.

Production Capacity

Production capacity depends on the pad base size, component weight, mould cavity configuration, injection moulding machine capacity, cycle time, plastic material, and required production quantity. Single-cavity moulds can be considered for development and lower-volume requirements, while multi-cavity solutions can be evaluated for suitable designs and higher-volume production.

Buyer Guide

Before ordering a Steam Mop Plastic Microfiber Pad Base Mould and Moulding Service, buyers should provide the microfiber pad dimensions, cleaning-head dimensions, attachment method, steam outlet arrangement, mounting points, base thickness, material preference, colour, surface finish, product drawing or sample, and expected production quantity.

Providing the microfiber pad, existing plastic base, cleaning head, or complete steam mop assembly helps determine accurate pad-retention features, steam-opening alignment, mounting points, and overall assembly compatibility.

Why Choose Renovator?

• Customized Pad Base Mould Development: Moulds can be developed according to specific microfiber pad and cleaning-head designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent pad dimensions, attachment features, mounting points, and steam openings.

• Material Selection Support: Suitable plastics can be selected according to strength, weight, flexibility, wear resistance, and operating conditions.

• OEM Manufacturing Support: Pad bases can be manufactured according to customer drawings, samples, 3D models, and approved specifications.

• Complex Attachment Features: Clips, snap-fits, slots, hook-and-loop mounting areas, ribs, steam openings, and locating features can be incorporated into the mould.

• Bulk Production Capability: Manufacturing solutions can be developed according to required production quantities.

• Assembly Compatibility Testing: Finished bases can be tested with the microfiber pad and cleaning head to verify proper fit and retention.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Microfiber Pad Base used for?
It provides the structural platform that supports and attaches the microfiber cleaning pad to the bottom of the steam mop cleaning head.

Q2. Can the pad base be customized for a specific microfiber pad?
Yes. The base can be developed according to the pad dimensions, cleaning-head design, attachment method, steam outlet arrangement, and existing product sample.

Q3. Which plastic materials can be used for a microfiber pad base?
PP, ABS, HIPS, Nylon, POM, and suitable engineering-grade plastics can be considered according to the required strength, flexibility, wear resistance, weight, and dimensional stability.

Q4. Can the mould include clips and steam outlet openings?
Yes. Pad-retention clips, snap-fits, slots, hook-and-loop mounting areas, steam openings, ribs, locating pins, and other required features can be incorporated into the mould.

Q5. Can Renovator manufacture both the mould and finished microfiber pad bases?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic microfiber pad bases.
