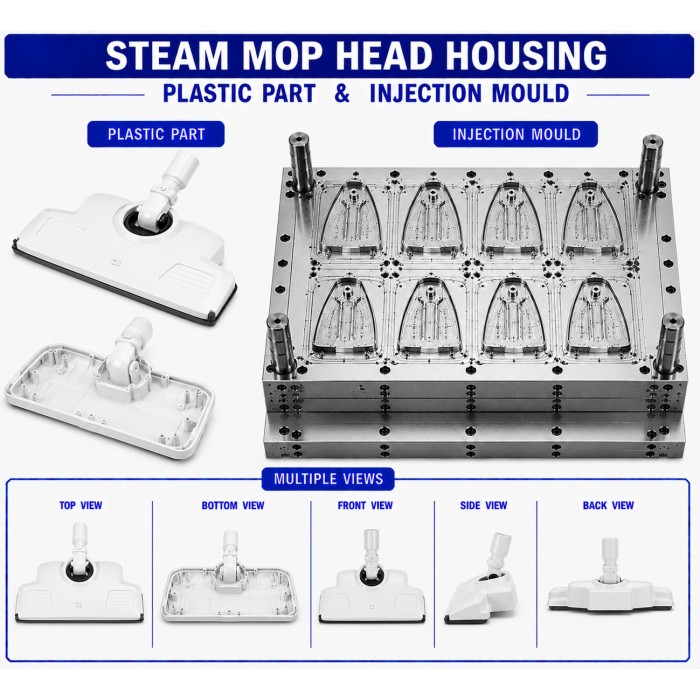

Steam Mop Plastic Head Housing Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Head Housing Mould and Moulding Service for manufacturing precision plastic housings used in the cleaning head of steam mop appliances. The Steam Mop Plastic Head Housing forms the outer structural enclosure around the cleaning-head mechanism and provides mounting and protection for components such as steam passages, microfiber pad base, swivel mechanism, connectors, clips, and other internal parts.

The head housing can be customized according to cleaning-head dimensions, steam outlet arrangement, pad attachment system, swivel mechanism, mounting points, wall thickness, ribs, clips, colour, texture, and surface finish. Precision injection moulding helps achieve consistent dimensions and reliable assembly for OEM and bulk production.

Key Features

• Cleaning Head Protection: The housing protects internal cleaning-head components from external impact and handling.

• Microfiber Pad Interface: The lower section can be designed to accommodate the microfiber pad base and its attachment mechanism.

• Steam Outlet Integration: Openings and passages can be incorporated to align with the steam delivery system.

• Swivel Mechanism Support: Mounting provisions can be incorporated for a rotating or pivoting cleaning-head mechanism.

• Strong Structural Body: Ribs, bosses, and reinforced sections can be moulded into the housing to provide the required rigidity.

• Component Mounting: Screw bosses, locating pins, clips, snap-fits, and other mounting features can be incorporated.

• Lightweight Construction: Plastic construction helps keep the cleaning head manageable during floor cleaning.

• Smooth Outer Profile: Rounded and streamlined surfaces can be designed for convenient movement around the cleaning area.

• Custom Appearance: Colour, texture, gloss level, branding areas, and surface finish can be customized.

• Consistent Production: Injection moulding provides repeatable dimensions and reliable assembly interfaces.

Industrial Applications

Steam Mop Plastic Head Housings are commonly used in:

• Domestic Steam Mops: Forms the outer body of the floor-cleaning head.

• Steam Floor Cleaners: Encloses and supports the components responsible for steam distribution and pad attachment.

• Steam Cleaning Heads: Provides the structural framework for the cleaning-head assembly.

• Microfiber Pad Cleaning Systems: Supports the mechanism that connects the cleaning pad to the appliance.

• OEM Steam Cleaning Appliances: Customized head housings can be manufactured according to specific product designs.

Manufacturing Process

The manufacturing process begins with the customer's cleaning-head drawing, sample, 3D CAD model, existing housing, or complete steam mop assembly. The overall head dimensions, steam outlet positions, pad-base interface, swivel mechanism, mounting points, internal clearances, wall thickness, and material requirements are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The cavity forms the head housing's outer profile, ribs, mounting bosses, clips, screw points, steam openings, locating features, and other required details.

After cooling, the mould opens and the finished housing is ejected. The moulded housing is inspected for dimensions, steam outlet alignment, pad-base fitting, swivel mechanism compatibility, surface finish, flash, warpage, and assembly accuracy.

Trial assembly can be performed with the steam delivery system, microfiber pad base, swivel mechanism, handle connection, and other components to verify the complete cleaning-head interface.

Mould Manufacturing Process

1. Product Drawing & Sample Review: Cleaning-head dimensions, steam outlet arrangement, pad interface, swivel system, mounting points, and internal components are evaluated.

2. 3D CAD Housing Design: A detailed mould design is developed according to the approved head housing geometry.

3. DFM Evaluation: Wall thickness, ribs, bosses, draft angles, parting lines, ejection points, and mould-filling requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production volume, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, mould plates, ribs, bosses, and other precision features.

6. EDM Machining: EDM can be used for narrow openings, clips, grooves, steam outlets, and complex mould details.

7. Surface Finishing: Mould surfaces are polished or textured according to the required visible finish.

8. Mould Assembly: All mould components are assembled and accurately aligned.

9. Trial Injection Moulding: Trial head housings are produced to check filling, dimensions, surface finish, mounting features, and ejection.

10. Assembly Fit Testing: Trial housings are assembled with the pad base, steam system, swivel mechanism, and related components.

11. Final Mould Approval: Necessary mould corrections are completed before regular production.

Raw Materials

• PP (Polypropylene): A lightweight thermoplastic with good chemical resistance and flexibility. It can be suitable for cleaning-head housings where low weight and practical durability are required.

• ABS (Acrylonitrile Butadiene Styrene): A rigid and impact-resistant plastic with good dimensional stability and surface finish. It can be considered for rigid head housings requiring an attractive appearance.

• HIPS (High Impact Polystyrene): An impact-resistant and easy-to-process plastic that can be considered for economical housing production where suitable rigidity is required.

• PC-ABS: An engineering blend combining useful properties of polycarbonate and ABS, providing improved impact performance and dimensional stability compared with many commodity plastics.

• Nylon: A strong engineering thermoplastic with good mechanical strength and wear resistance. It can be considered for selected structural areas requiring enhanced mechanical performance.

• Engineering-Grade Plastic: Specialized grades can be selected where higher strength, dimensional stability, temperature resistance, or wear resistance is required.

Quality Control

• Overall Dimension Inspection: Length, width, height, and critical housing dimensions are checked against approved specifications.

• Steam Outlet Alignment: Steam openings are checked for correct position and dimensions relative to the internal steam-delivery system.

• Pad Base Fit Check: The housing is checked for accurate assembly with the microfiber pad base.

• Swivel Mechanism Inspection: Mounting points and clearances for the swivel mechanism are checked for correct fit.

• Mounting Feature Inspection: Screw bosses, clips, locating pins, snap-fits, and other fixing features are inspected.

• Structural Inspection: Ribs, walls, bosses, and support areas are checked for proper mould formation.

• Surface Finish Inspection: Visible surfaces are checked for sink marks, flow marks, scratches, weld lines, uneven texture, and other defects.

• Flash Inspection: Excess plastic around parting lines, openings, clips, and mounting areas is checked.

• Warpage Inspection: The housing is inspected for deformation that could affect assembly or cleaning-head movement.

• Assembly Compatibility: The housing can be assembled with the complete cleaning-head system to verify proper fitting.

Production Capacity

Production capacity depends on the head housing size, component weight, mould cavity configuration, injection moulding machine capacity, cycle time, plastic material, and required production quantity. Single-cavity moulds can be considered for development and lower-volume requirements, while multi-cavity solutions may be evaluated for suitable designs and higher-volume production.

Buyer Guide

Before ordering a Steam Mop Plastic Head Housing Mould and Moulding Service, buyers should provide the cleaning-head dimensions, steam outlet arrangement, microfiber pad base dimensions, swivel mechanism details, mounting points, internal component layout, wall thickness, material preference, colour, surface finish, product drawing or sample, and expected production quantity.

Providing the existing head housing, cleaning head, microfiber pad base, steam outlet assembly, or complete steam mop helps determine accurate interfaces, mounting points, clearances, and assembly requirements.

Why Choose Renovator?

• Customized Head Housing Mould Development: Moulds can be developed according to specific steam mop cleaning-head designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent dimensions, mounting features, steam openings, and component interfaces.

• Material Selection Support: Suitable plastics can be selected according to strength, weight, flexibility, temperature exposure, wear resistance, and appearance.

• OEM Manufacturing Support: Head housings can be manufactured according to customer drawings, samples, 3D models, and approved specifications.

• Complex Feature Manufacturing: Steam openings, ribs, bosses, clips, swivel mounts, pad interfaces, and locating features can be incorporated into the mould.

• Bulk Production Capability: Manufacturing solutions can be developed according to required production quantities.

• Quality Inspection: Finished housings can be checked for dimensions, surface finish, mounting accuracy, steam-path alignment, and assembly compatibility.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Head Housing used for?
It forms the outer structural enclosure of the steam mop cleaning head and supports or protects components such as steam outlets, pad attachments, and swivel mechanisms.

Q2. Can the head housing be customized according to an existing cleaning head?
Yes. It can be developed using an existing housing, product sample, technical drawing, 3D CAD model, cleaning head, or complete steam mop assembly.

Q3. Which plastic materials are suitable for a steam mop head housing?
PP, ABS, HIPS, PC-ABS, Nylon, and suitable engineering-grade plastics can be considered according to the required strength, weight, dimensional stability, temperature exposure, and appearance.

Q4. Can the housing include steam openings and microfiber pad mounting features?
Yes. Steam outlets, pad-base interfaces, clips, snap-fits, screw bosses, ribs, locating pins, and swivel mounting features can be incorporated into the mould.

Q5. Can Renovator manufacture both the mould and finished head housings?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic head housings.
