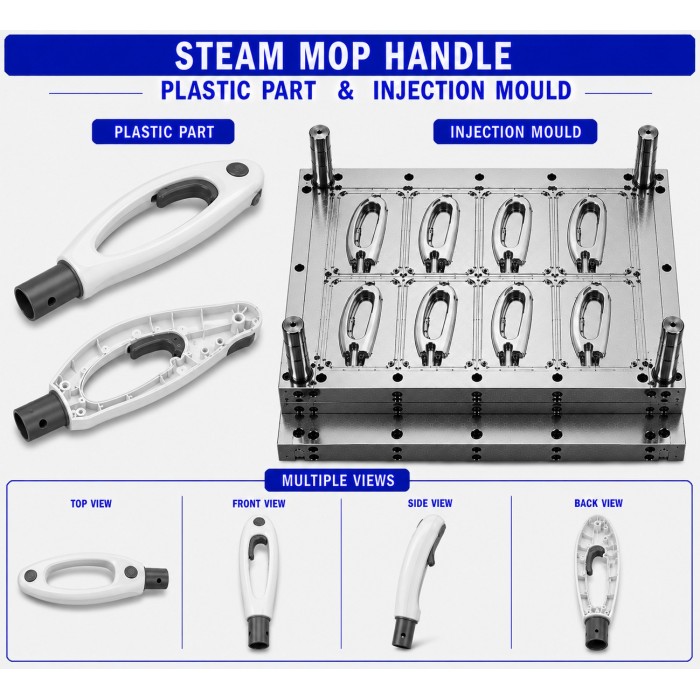

Steam Mop Plastic Handle Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Handle Mould and Moulding Service for manufacturing durable plastic handles used in steam mop appliances. The Steam Mop Plastic Handle provides the user with a comfortable gripping structure for holding, steering, and controlling the steam mop during floor-cleaning operations.

The handle can be customized according to the steam mop's overall height, grip length, ergonomic requirements, shaft connection, control-button arrangement, cable routing, locking mechanism, wall thickness, colour, texture, and surface finish. Precision injection moulding helps produce consistent handles with accurate mounting and assembly features for OEM and bulk production.

Key Features

• Ergonomic Grip: The handle can be designed with a comfortable profile that supports controlled movement of the steam mop during cleaning.

• Strong Structural Design: Reinforcing ribs and suitable wall thickness can be incorporated to provide the required rigidity.

• Secure Shaft Connection: Mounting sockets, locking holes, screw bosses, clips, or other connection features can be moulded for attachment to the handle shaft or main body.

• Control Integration: Openings and mounting provisions can be incorporated for switches, buttons, triggers, or control components where required.

• Cable Routing: Internal passages or cable-management provisions can be included for organized electrical wiring.

• Lightweight Construction: Plastic construction helps reduce the overall weight of the handle while maintaining suitable structural strength.

• Comfortable Surface: Textured or smooth surfaces can be selected according to grip and appearance requirements.

• Custom Design: Handle length, grip profile, mounting arrangement, colour, texture, branding area, and surface finish can be customized.

• Consistent Production: Injection moulding provides repeatable dimensions and consistent assembly interfaces.

Industrial Applications

Steam Mop Plastic Handles are commonly used in:

• Domestic Steam Mops: Provides the primary hand-grip structure for operating the appliance.

• Steam Floor Cleaners: Allows the user to steer the cleaning head across the floor.

• Steam Cleaning Appliances: Customized handles can be integrated with different cleaning appliance designs.

• Upright Steam Cleaners: Provides an ergonomic upper section for user control.

• OEM Cleaning Equipment: Handles can be manufactured according to specific product drawings and brand requirements.

Manufacturing Process

The manufacturing process begins with the customer's handle drawing, sample, 3D CAD model, shaft assembly, or complete steam mop. The handle length, grip dimensions, internal structure, shaft connection, button arrangement, wiring route, locking features, wall thickness, and required strength are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The mould forms the handle's outer profile, grip surface, mounting sockets, screw bosses, clips, ribs, cable passages, button openings, and other required features.

After cooling, the mould opens and the finished handle is ejected. The moulded handle is inspected for dimensions, grip geometry, mounting accuracy, structural integrity, surface finish, flash, warpage, and assembly compatibility.

Trial assembly can be performed with the handle shaft, control buttons, electrical wiring, main housing, and other components to verify secure installation and user-facing alignment.

Mould Manufacturing Process

1. Product Drawing & Sample Review: Handle dimensions, grip profile, shaft connection, controls, cable routing, and mounting requirements are evaluated.

2. 3D CAD Handle Design: A detailed 3D model is prepared according to the approved handle geometry.

3. DFM Evaluation: Wall thickness, ribs, bosses, draft angles, parting line, ejection system, and mould-filling requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production quantity, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, mould plates, grip features, ribs, bosses, and other precision details.

6. EDM Machining: EDM can be used for narrow slots, button openings, locking details, and complex mould features.

7. Surface Finishing: Mould surfaces are polished or textured according to the required handle appearance and grip finish.

8. Mould Assembly: Mould components are assembled and accurately aligned.

9. Trial Injection Moulding: Trial handles are produced to check filling, dimensions, grip profile, mounting features, and surface finish.

10. Assembly & Strength Testing: Trial handles are assembled with the shaft and other components to verify proper fitting and structural performance under defined test conditions.

11. Final Mould Approval: Required mould corrections are completed before regular production.

Raw Materials

• ABS (Acrylonitrile Butadiene Styrene): A rigid and impact-resistant thermoplastic with good dimensional stability and surface finish. It can be suitable for handles requiring a firm and durable structure.

• PP (Polypropylene): A lightweight and flexible thermoplastic with good chemical resistance. It can be considered where reduced weight and suitable flexibility are desired.

• HIPS (High Impact Polystyrene): An impact-resistant and easy-to-process plastic that can be considered for economical handle production where appropriate rigidity is required.

• PA/Nylon: A strong engineering thermoplastic with good mechanical strength and wear resistance. It can be considered for structural areas requiring enhanced mechanical performance.

• PC-ABS: A blended engineering plastic combining useful properties of polycarbonate and ABS. It can be considered for handles requiring improved impact resistance and dimensional performance.

• Engineering-Grade Plastic: Specialized grades can be selected where higher strength, heat resistance, dimensional stability, or long-term mechanical performance is required.

Quality Control

• Overall Dimension Inspection: Handle length, width, height, grip dimensions, and critical measurements are checked against approved specifications.

• Grip Profile Check: The ergonomic profile and grip dimensions are checked for consistency with the approved design.

• Shaft Connection Inspection: Mounting sockets, holes, clips, and locking features are checked for accurate connection with the handle shaft.

• Structural Inspection: Ribs, walls, bosses, and other load-bearing features are inspected for proper moulding and structural integrity.

• Control Feature Inspection: Button openings, trigger provisions, or other control interfaces are checked for accurate positioning.

• Cable Routing Check: Internal cable-routing areas are inspected for suitable clearance and alignment.

• Surface Finish Inspection: Visible surfaces are checked for sink marks, flow marks, scratches, weld lines, uneven texture, and other moulding defects.

• Flash Inspection: Excess plastic around parting lines, openings, clips, and mounting features is checked.

• Warpage Inspection: The handle is inspected for deformation that could affect assembly or user handling.

• Assembly Compatibility: Finished handles can be tested with the shaft, main housing, control components, and wiring.

Production Capacity

Production capacity depends on the handle size, component weight, mould cavity configuration, injection moulding machine capacity, cycle time, plastic material, and required production volume. Single-cavity moulds can be considered for development or lower-volume requirements, while suitable multi-cavity solutions may be evaluated for higher-volume production where the design permits.

Buyer Guide

Before ordering a Steam Mop Plastic Handle Mould and Moulding Service, buyers should provide the handle dimensions, grip profile, shaft diameter, mounting arrangement, locking method, control-button requirements, cable-routing requirements, material preference, colour, surface finish, product drawing or sample, and expected production quantity.

Providing the handle shaft, existing handle, control components, or complete steam mop assembly helps determine accurate connection dimensions, mounting features, clearances, and overall assembly compatibility.

Why Choose Renovator?

• Customized Handle Mould Development: Moulds can be developed according to specific steam mop handle and shaft designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent grip dimensions, mounting features, and connection interfaces.

• Material Selection Support: Suitable plastics can be selected according to strength, weight, flexibility, impact resistance, and operating conditions.

• OEM Manufacturing Support: Handles can be produced according to customer drawings, samples, 3D models, and approved specifications.

• Ergonomic Feature Manufacturing: Grip contours, textured surfaces, ribs, control openings, cable-routing features, and locking details can be incorporated into the mould.

• Bulk Production Capability: Manufacturing solutions can be developed according to required production volumes.

• Quality Inspection: Finished handles can be checked for dimensions, mounting accuracy, surface finish, warpage, and assembly compatibility.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Handle used for?
It provides the user with a grip for holding, steering, and controlling the steam mop during floor-cleaning operations.

Q2. Can the handle be customized according to an existing steam mop model?
Yes. The handle can be developed using an existing sample, technical drawing, 3D model, handle shaft, or complete steam mop assembly.

Q3. Which plastic materials are suitable for a steam mop handle?
ABS, PP, HIPS, Nylon, PC-ABS, and suitable engineering-grade plastics can be considered according to the required strength, weight, flexibility, impact resistance, and dimensional stability.

Q4. Can the handle include control-button openings and cable-routing features?
Yes. Button openings, trigger interfaces, cable passages, screw bosses, clips, snap-fits, and shaft-locking features can be incorporated into the mould.

Q5. Can Renovator manufacture both the mould and finished steam mop handles?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic handles.
