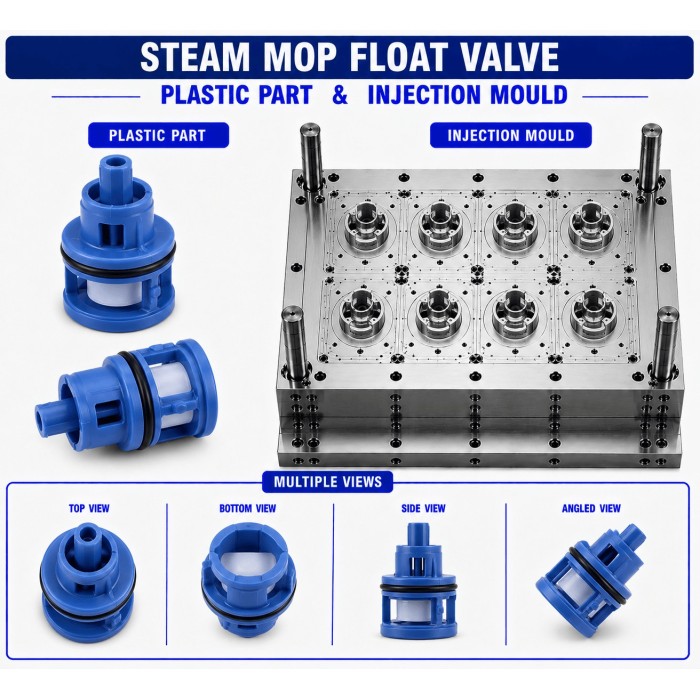

Steam Mop Plastic Float Valve Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Float Valve Mould and Moulding Service for manufacturing precision plastic float-valve components used to regulate or control water flow within compatible steam mop water systems. The Steam Mop Plastic Float Valve can work with a float mechanism to respond to the water level and control the associated inlet, outlet, or valve passage according to the appliance design.

The float valve can be customized according to float size, valve-seat geometry, water-flow passage, sealing arrangement, stem dimensions, mounting method, operating water level, tank geometry, and available installation space. Precision injection moulding helps achieve consistent dimensions for reliable movement, seating, and assembly.

Key Features

• Water-Level Control: The float mechanism can respond to changing water levels within the designated water chamber.

• Valve Operation: The valve can be designed to open or restrict a water passage according to the required float movement.

• Accurate Float Movement: Properly designed guides and clearances help maintain controlled movement.

• Valve Seat Compatibility: The valve sealing section can be manufactured according to the required mating geometry.

• Water Flow Control: Internal passages can be customized according to the required flow characteristics.

• Secure Mounting: Clips, stems, pins, guides, retaining rings, or other mounting features can be incorporated.

• Compact Design: The component can be designed to fit within limited water-tank or internal housing space.

• Low-Weight Construction: Plastic construction provides a lightweight solution for float and valve components.

• Custom Configuration: Float shape, stem length, valve head, guide structure, and mounting features can be customized.

• Consistent Production: Injection moulding supports repeatable dimensions for reliable valve assembly.

Industrial Applications

Steam Mop Plastic Float Valves may be used in compatible designs such as:

• Domestic Steam Mops: Supports water-level or water-flow control within suitable tank assemblies.

• Steam Floor Cleaners: Can be incorporated into water management systems.

• Upright Steam Cleaners: Suitable for water reservoirs requiring mechanical level-control components.

• Portable Steam Cleaning Appliances: Provides a compact water-level control solution.

• OEM Steam Cleaning Equipment: Customized float-valve components can be manufactured according to specific water-system requirements.

Manufacturing Process

The manufacturing process begins with the customer's float valve drawing, sample, float mechanism, water tank, valve seat, 3D CAD model, or complete steam mop assembly. The required water level, float travel, valve opening, sealing method, flow passage, mounting arrangement, and available tank space are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The mould forms the float body, valve head, stem, guide features, retaining features, flow passages, and other required geometries.

After cooling, the mould opens and the finished component is ejected. The moulded valve components are inspected for dimensions, float movement, valve-seat fit, stem alignment, surface finish, flash, warpage, and assembly compatibility.

The finished component is then assembled with the corresponding valve seat, stem, guide, seal, float mechanism, and water tank where applicable. Functional testing can be performed to verify movement and water-flow control according to the approved design.

Mould Manufacturing Process

1. Product Drawing & Water-System Review: Float dimensions, required water level, valve operation, flow path, sealing arrangement, and tank geometry are evaluated.

2. 3D CAD Float Valve Design: A detailed model is developed according to the approved water-management system.

3. DFM Evaluation: Wall thickness, draft angles, stem geometry, valve-seat interface, guide clearances, parting line, and ejection requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production quantity, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, valve profile, float body, stem features, and mould plates.

6. EDM Machining: EDM can be used for small grooves, slots, guide features, locking details, and other precision mould sections.

7. Core & Flow Passage Development: Precision core features are manufactured to create required internal passages and valve geometry.

8. Surface Finishing: Mould surfaces are polished or textured according to the required product finish.

9. Mould Assembly: Mould components are assembled and accurately aligned.

10. Trial Injection Moulding: Trial float-valve components are produced to check dimensions, movement, valve fit, and surface quality.

11. Assembly Testing: The valve is assembled with the actual float, tank, sealing components, and mating parts.

12. Functional Testing: Float movement and valve opening/closing behaviour are checked according to the approved operating conditions.

13. Final Mould Approval: Required mould corrections are completed before regular production.

Raw Materials

• PP (Polypropylene): A lightweight plastic with good moisture and chemical resistance. Suitable PP grades can be considered for float bodies and valve components where the operating conditions permit.

• HDPE (High-Density Polyethylene): A tough plastic with good moisture and chemical resistance. It can be considered for suitable float components requiring buoyancy and durability.

• POM (Polyoxymethylene): A stiff engineering plastic with good dimensional stability and low friction. It can be considered for valve stems, guides, and precision moving components.

• Nylon (Polyamide): A strong engineering thermoplastic with good mechanical strength and wear resistance. Suitable grades can be considered for mechanically loaded valve components.

• PA66: A strong Nylon grade offering good strength and dimensional stability for suitable mechanical valve components, subject to moisture and temperature considerations.

• PC-ABS: An engineering blend providing rigidity, impact resistance, and dimensional stability for suitable structural valve components.

The final material should be selected according to the actual water exposure, temperature, chemical environment, buoyancy requirement, dimensional stability, wear, sealing conditions, and product specifications.

Quality Control

• Overall Dimension Inspection: Float, valve head, stem, and guide dimensions are checked against approved specifications.

• Float Buoyancy Check: Where applicable, the float is checked for appropriate buoyancy and movement in the specified water environment.

• Valve Seat Fit Check: The valve head and mating seat are checked for proper alignment and seating.

• Opening/Closing Test: The valve mechanism is operated through its specified movement range.

• Water-Level Response Test: Where the design uses level-based operation, the float response is checked at the specified water levels.

• Flow Passage Inspection: Water passages are checked for correct dimensions and unobstructed flow.

• Leakage Test: Where applicable, the valve assembly can be tested for leakage under specified conditions.

• Stem Alignment Check: The stem is inspected for dimensional accuracy and proper movement within its guide.

• Surface Finish Inspection: Components are checked for sink marks, flow marks, scratches, weld lines, and other moulding defects.

• Flash Inspection: Excess plastic around valve seats, guide features, parting lines, and edges is checked.

• Warpage Inspection: Components are inspected for deformation that could affect valve movement or seating.

• Assembly Testing: The complete float-valve assembly is tested with the actual water tank and associated components.

Production Capacity

Production capacity depends on the float valve size, component weight, material, precision requirements, mould cavity configuration, injection moulding machine capacity, cycle time, and required production volume. Single-cavity moulds can be considered for development and lower-volume requirements, while multi-cavity moulds may be evaluated for suitable designs and higher-volume production.

Buyer Guide

Before ordering a Steam Mop Plastic Float Valve Mould and Moulding Service, buyers should provide the water tank dimensions, required operating water level, float dimensions, valve-seat dimensions, water-flow requirement, valve travel, stem diameter, sealing arrangement, operating temperature, material preference, product drawing or sample, and expected production quantity.

Providing the actual water tank, float mechanism, valve seat, seal, pump, inlet/outlet components, or complete steam mop assembly helps determine the correct float travel, valve seating, clearances, and water-flow requirements.

Why Choose Renovator?

• Customized Float Valve Mould Development: Moulds can be developed according to specific tank and water-management system designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent valve-seat dimensions, stem alignment, guide clearances, and float geometry.

• Material Selection Support: Suitable plastics can be evaluated according to water exposure, temperature, chemical resistance, buoyancy, strength, and wear requirements.

• OEM Manufacturing Support: Float-valve components can be manufactured according to customer drawings, samples, 3D models, and approved specifications.

• Custom Valve Features: Valve seats, stems, guides, retaining clips, flow passages, seals, and mounting features can be incorporated.

• Functional Testing: Float movement, valve seating, water-level response, and leakage can be evaluated according to the approved design.

• Bulk Production Capability: Manufacturing solutions can be developed according to required quantities.

• Assembly Compatibility Testing: Finished components can be tested with the actual water tank and related water-system components.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Float Valve used for?
It can be used to control or regulate water flow in a compatible steam mop water system by responding to changes in water level through a float mechanism.

Q2. Can the float valve be customized according to a specific water tank?
Yes. The float size, valve position, stem length, guide structure, operating level, mounting arrangement, and sealing interface can be customized according to the tank design.

Q3. Which plastic materials can be used for a float valve?
PP, HDPE, POM, Nylon, PA66, PC-ABS, and other suitable plastics can be considered according to the required buoyancy, strength, temperature resistance, chemical resistance, and dimensional stability.

Q4. Can the float valve include a sealing or locking mechanism?
Yes. Valve seats, sealing interfaces, O-ring arrangements, retaining clips, guide features, stems, and locking components can be incorporated according to the design.

Q5. Can Renovator manufacture both the mould and finished float valves?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic float valves.
