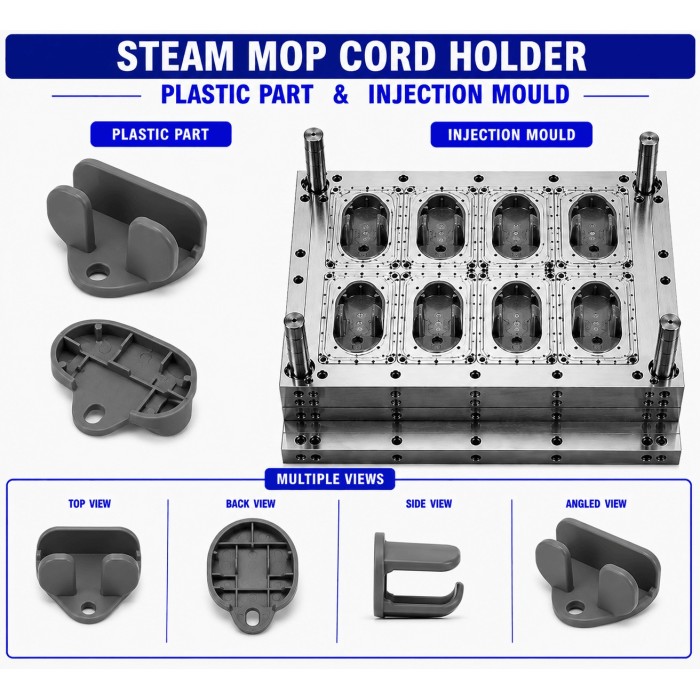

Steam Mop Plastic Cord Holder Mould and Moulding Service

Product Overview

Renovator Appliances Ltd. provides Steam Mop Plastic Cord Holder Mould and Moulding Service for manufacturing precision plastic cord holders used to organize and retain the electrical power cord of steam mop appliances. The Steam Mop Plastic Cord Holder helps keep the cord securely positioned during storage, handling, or operation and prevents unnecessary tangling around the appliance.

The cord holder can be customized according to the power-cord diameter, cord routing, mounting location, attachment method, storage position, locking mechanism, clip geometry, wall thickness, and steam mop housing design. Precision injection moulding helps produce consistent retention features and reliable mounting for OEM and bulk production.

Key Features

• Power Cord Organization: Keeps the steam mop power cord arranged in a controlled position during storage and handling.

• Secure Cord Retention: The holder can be designed with clips, hooks, grooves, channels, or locking features to retain the cord.

• Cord Diameter Compatibility: The internal profile can be customized according to the diameter and construction of the power cord.

• Easy Cord Placement: Open-clip or guided designs can allow the cord to be placed and removed conveniently.

• Housing Mounting: Screw bosses, snap-fits, clips, locating pins, or integrated mounting features can be incorporated.

• Compact Construction: The holder can be designed to occupy minimal space on the steam mop housing.

• Smooth Edges: Rounded edges can help reduce unnecessary contact with the cord insulation.

• Custom Design: Hook shape, clip size, cord capacity, mounting arrangement, colour, texture, and surface finish can be customized.

• Consistent Production: Injection moulding provides repeatable dimensions and consistent cord-retention performance.

Industrial Applications

Steam Mop Plastic Cord Holders are commonly used in:

• Domestic Steam Mops: Holds and organizes the electrical power cord during storage.

• Steam Floor Cleaners: Helps maintain an organized cord arrangement when the appliance is not in use.

• Upright Steam Cleaners: Can be mounted on the handle or housing for cord management.

• Portable Steam Cleaning Appliances: Provides compact cord-retention functionality.

• OEM Cleaning Equipment: Customized cord holders can be manufactured according to specific appliance designs.

Manufacturing Process

The manufacturing process starts with the customer's cord holder drawing, sample, power cord, 3D CAD model, housing, or complete steam mop assembly. The cord diameter, required holding capacity, mounting position, retention force, available space, and removal method are evaluated before mould development.

The selected thermoplastic material is heated inside an injection moulding machine and injected into a precision mould cavity. The mould forms the holder's outer profile, cord groove, retaining clip, hook, mounting features, locating details, and other required elements.

After cooling, the mould opens and the finished cord holder is ejected. The moulded component is inspected for dimensions, cord fit, retention features, mounting accuracy, surface finish, flash, warpage, and assembly compatibility.

Trial assembly is performed by installing the holder on the steam mop housing and placing the actual power cord into the holder to verify secure retention and convenient removal.

Mould Manufacturing Process

1. Product Drawing & Sample Review: Cord diameter, holder position, mounting method, retention mechanism, and available installation space are evaluated.

2. 3D CAD Cord Holder Design: A detailed model is prepared according to the approved holder geometry.

3. DFM Evaluation: Wall thickness, clip flexibility, draft angles, ribs, parting line, and ejection requirements are reviewed.

4. Mould Steel Selection: Suitable mould steel is selected according to the plastic grade, production volume, component complexity, and expected mould life.

5. CNC Machining: CNC machining is used to manufacture the cavity, core, cord groove, clips, hooks, and mounting features.

6. EDM Machining: EDM can be used for narrow slots, retaining features, hooks, grooves, and other detailed mould sections.

7. Surface Finishing: Mould surfaces are polished or textured according to the required product finish.

8. Mould Assembly: Mould components are assembled and accurately aligned.

9. Trial Injection Moulding: Trial cord holders are produced to check dimensions, clip formation, cord groove, and surface finish.

10. Cord Retention Testing: The actual power cord is fitted into the holder to verify retention, insertion, and removal.

11. Final Mould Approval: Necessary mould corrections are completed before regular production.

Raw Materials

• PP (Polypropylene): A lightweight and slightly flexible thermoplastic with good chemical resistance. It can be suitable for cord holders where controlled flexibility is beneficial for inserting and removing the cord.

• ABS (Acrylonitrile Butadiene Styrene): A rigid and impact-resistant thermoplastic with good dimensional stability. It can be considered for rigid cord-holder structures requiring a firm appearance.

• HIPS (High Impact Polystyrene): An economical impact-resistant plastic that can be considered for suitable rigid cord-holder designs.

• Nylon: A strong engineering thermoplastic with good mechanical strength and wear resistance. It can be considered for holders requiring enhanced mechanical durability.

• POM (Polyoxymethylene): A stiff engineering thermoplastic with good dimensional stability and low friction. It can be considered for precision cord-holder mechanisms with sliding or repeated movement.

• PC-ABS: An engineering blend combining useful properties of polycarbonate and ABS, providing good rigidity and impact performance for suitable applications.

Quality Control

• Overall Dimension Inspection: Holder length, width, height, thickness, and critical dimensions are checked against approved specifications.

• Cord Groove Inspection: Groove width, depth, and profile are checked for compatibility with the specified power cord.

• Cord Retention Check: The actual cord is fitted into the holder to verify secure retention.

• Insertion & Removal Check: The cord is placed and removed repeatedly to verify the intended holding mechanism.

• Mounting Feature Inspection: Clips, screw bosses, snap-fits, locating pins, and other mounting features are checked.

• Edge & Surface Inspection: Cord-contact surfaces are checked for sharp edges, flash, burrs, or moulding defects that could unnecessarily damage the cord insulation.

• Surface Finish Inspection: Visible surfaces are checked for scratches, sink marks, flow marks, weld lines, and uneven texture.

• Flash Inspection: Excess plastic around the parting line, clip areas, and cord groove is checked.

• Warpage Inspection: The holder is inspected for deformation that could affect mounting or cord retention.

• Assembly Testing: The holder is assembled with the steam mop housing and power cord to verify complete compatibility.

Production Capacity

Production capacity depends on the cord holder size, component weight, plastic material, mould cavity configuration, injection moulding machine capacity, cycle time, and required production volume. Single-cavity moulds can be considered for development and lower-volume production, while multi-cavity moulds may be evaluated for suitable designs and higher-volume requirements.

Buyer Guide

Before ordering a Steam Mop Plastic Cord Holder Mould and Moulding Service, buyers should provide the power-cord diameter, cord construction, required cord capacity, mounting location, available installation space, attachment method, desired retention mechanism, material preference, colour, surface finish, product drawing or sample, and expected production quantity.

Providing the actual power cord, existing cord holder, steam mop housing, or complete appliance helps determine accurate groove dimensions, clip flexibility, mounting features, and cord-retention requirements.

Why Choose Renovator?

• Customized Cord Holder Mould Development: Moulds can be developed according to specific power-cord and steam mop housing designs.

• Precision Injection Moulding: Accurate moulding helps maintain consistent cord grooves, clips, hooks, and mounting features.

• Material Selection Support: Suitable plastics can be evaluated according to flexibility, strength, wear resistance, dimensional stability, and application conditions.

• OEM Manufacturing Support: Cord holders can be manufactured according to customer drawings, samples, 3D models, and approved specifications.

• Custom Retention Features: Hooks, clips, grooves, snap-fits, cable channels, and mounting features can be incorporated into the mould.

• Bulk Production Capability: Production solutions can be developed according to required quantities.

• Assembly Compatibility Testing: Finished holders can be tested with the actual power cord and steam mop housing.

Frequently Asked Questions (FAQ)

Q1. What is a Steam Mop Plastic Cord Holder used for?
It holds and organizes the steam mop's electrical power cord, particularly during storage and handling.

Q2. Can the cord holder be designed for a specific power-cord diameter?
Yes. The groove, clip, hook, or retaining section can be customized according to the actual power-cord diameter and required holding capacity.

Q3. Which plastic materials can be used for a steam mop cord holder?
PP, ABS, HIPS, Nylon, POM, PC-ABS, and other suitable plastics can be considered according to the required flexibility, strength, durability, and dimensional stability.

Q4. Can the cord holder be integrated with the steam mop housing?
Yes. Depending on the product design, it can be manufactured as a separate component or designed with suitable clips, snap-fits, screw bosses, or other mounting features for installation on the housing.

Q5. Can Renovator manufacture both the mould and finished cord holders?
Yes. Renovator Appliances Ltd. provides plastic mould manufacturing and injection moulding services for customized, OEM, and bulk production of steam mop plastic cord holders.
