Product Overview

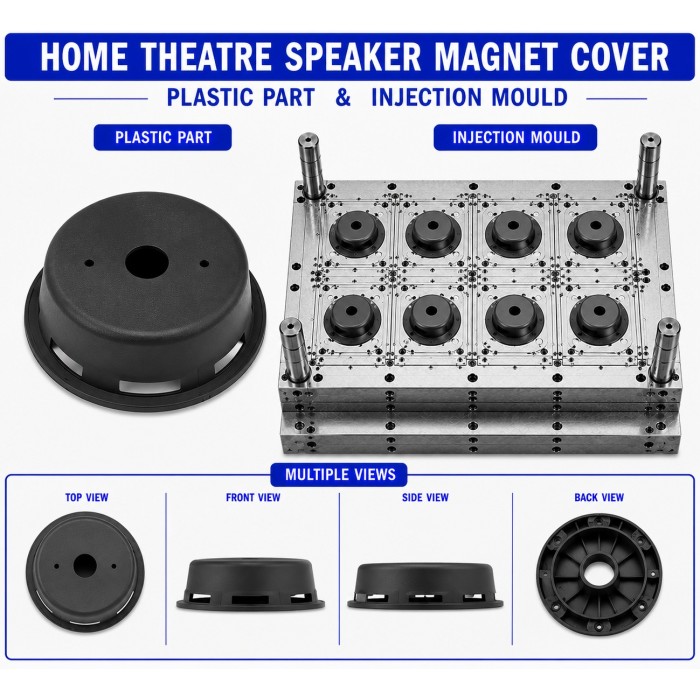

Home Theatre Plastic Speaker Magnet Cover is a precision injection-moulded protective component used to cover and protect the magnet and rear magnetic assembly of a speaker driver. It helps provide physical protection to the magnet area while also improving the appearance and organization of the rear side of the speaker assembly.

The cover can be designed to fit around the speaker magnet with the required clearance and may include mounting ribs, snap-fit features, locating tabs, ventilation openings, cable clearance, or screw-fixing points according to the speaker construction.

Renovator Appliances Ltd provides complete Home Theatre Plastic Speaker Magnet Cover Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Speaker Magnet Cover is designed specifically around the rear portion of the speaker driver so that the magnet assembly remains protected without interfering with the speaker's mechanical operation.

The cover can provide a defined protective enclosure around the magnet and can be customized according to the magnet diameter, magnet height, speaker basket geometry, rear clearance, mounting arrangement, and available cabinet space.

Depending on the speaker design, the cover may include ventilation slots or openings where airflow is required around the rear assembly. Locating ribs and snap-fit features can help maintain the cover's position during speaker assembly.

The component can also be developed with a suitable surface finish and colour to match the speaker driver or home theatre product design.

Industrial Applications

The Home Theatre Plastic Speaker Magnet Cover is used in speaker driver and audio equipment assemblies where protection and controlled enclosure of the rear magnet assembly are required.

Typical applications include:

• Home Theatre Speaker Systems

• Full-Range Speaker Drivers

• Surround Sound Speakers

• Satellite Speakers

• Soundbar Speaker Assemblies

• Subwoofer Speaker Drivers

• Multimedia Speakers

• Bookshelf Speaker Systems

• OEM Audio Equipment

• Customized Speaker Assemblies

The exact cover design depends on the speaker driver size, magnet dimensions, basket structure, rear ventilation requirements, mounting method, and available enclosure space.

Manufacturing Process

The Home Theatre Plastic Speaker Magnet Cover is manufactured using plastic injection moulding. The product design is first developed according to the speaker magnet diameter, magnet height, speaker basket dimensions, required clearance, and mounting arrangement.

The selected plastic material is processed according to its moulding requirements and injected into the precision mould cavity. The cavity forms the outer profile, internal clearance, mounting ribs, ventilation openings, locating features, and snap-fit elements of the cover.

After the cavity is filled, holding pressure is applied and the component is cooled to achieve dimensional stability. The mould then opens and the finished component is ejected.

The moulded cover is subsequently inspected for internal clearance, outer dimensions, mounting features, ventilation openings, warpage, flash, and speaker-driver fitment.

Mould Manufacturing Process

The Home Theatre Plastic Speaker Magnet Cover Mould is designed according to the exact geometry of the speaker's rear magnet assembly.

The mould includes the required cavity, core, parting line, gate, cooling system, and ejection mechanism. The internal core is particularly important because it determines the clearance between the plastic cover and the speaker magnet.

If the cover contains ventilation slots, side openings, snap-fit features, or undercuts, appropriate slides, lifters, or mould inserts can be incorporated into the tooling.

The mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After assembly, mould trials are performed using the selected plastic material.

Trial parts are checked for magnet clearance, speaker fitment, dimensional accuracy, ventilation openings, snap-fit engagement, warpage, flash, surface finish, and ejection performance. Necessary mould corrections are completed before production.

Raw Materials

The material for a Home Theatre Plastic Speaker Magnet Cover should provide adequate rigidity, dimensional stability, impact resistance, and temperature performance.

Depending on the speaker design, materials such as ABS, PP, HIPS, PC-ABS, or PBT can be considered.

ABS and HIPS may be suitable for rigid speaker components where dimensional stability and surface appearance are important. PP can be considered where lightweight construction and impact resistance are preferred, while PC-ABS or PBT can be considered where higher mechanical and temperature performance is required.

The final material should be selected according to the speaker operating temperature, magnet assembly dimensions, vibration, required rigidity, mounting method, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Speaker Magnet Cover focuses on dimensional accuracy and proper fitment around the speaker's magnet assembly.

The component can be checked for overall diameter, overall height, internal diameter, internal clearance, wall thickness, mounting-hole dimensions, snap-fit dimensions, ventilation-opening dimensions, and locating-feature positions according to the approved drawing.

The cover is also inspected for flash, short shots, sink marks, cracks, warpage, burrs, and surface defects.

Assembly testing can be performed by fitting the cover onto the actual speaker driver to confirm that it does not interfere with the magnet, speaker basket, terminal connections, ventilation path, or speaker installation.

Production Capacity

Production capacity depends on the cover size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, and production efficiency.

For example, a 4-cavity mould operating at a 25-second cycle has a theoretical capacity of approximately 576 pieces per hour before inspection, handling, downtime, mould maintenance, and production losses.

For high-volume requirements, a multi-cavity mould can be considered where the cover's size, geometry, mould dimensions, and injection moulding machine capacity permit it.

Final production capacity should be determined using the actual product weight, cavity count, cycle time, machine capacity, and required monthly production volume.

Buyer Guide

Before ordering a Home Theatre Plastic Speaker Magnet Cover Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, speaker driver sample, or existing cover sample.

Important specifications include magnet diameter, magnet height, speaker basket dimensions, internal clearance, cover diameter, cover height, wall thickness, ventilation requirements, mounting method, snap-fit dimensions, plastic material, colour, surface finish, dimensional tolerance, and production quantity.

Providing the actual speaker driver or magnet assembly is recommended when developing a new cover because the internal clearance must be accurately matched to the speaker assembly.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic speaker components used in home theatre, soundbar, subwoofer, amplifier, and audio-video equipment.

For the Home Theatre Plastic Speaker Magnet Cover, our service can cover the complete process from product development and mould design to precision mould manufacturing, injection moulding, quality inspection, speaker fitment testing, and bulk production.

The cover can be developed according to the customer's actual speaker assembly, including specific magnet dimensions, internal clearance, ventilation openings, mounting features, plastic grade, colour, and production quantity.

This integrated approach helps maintain consistency between the speaker magnet assembly, cover geometry, mould, plastic material, and final home theatre speaker assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Speaker Magnet Cover?

A Home Theatre Plastic Speaker Magnet Cover is an injection-moulded plastic component designed to protect and enclose the rear magnet assembly of a speaker driver while maintaining the required clearance and assembly access.

2. Which plastic materials are suitable for a Speaker Magnet Cover?

Depending on the application, ABS, PP, HIPS, PC-ABS, or PBT can be considered. Material selection depends on rigidity, temperature, vibration, appearance, and dimensional requirements.

3. Can the Magnet Cover be customized according to the speaker?

Yes. The cover can be customized according to the magnet diameter, magnet height, speaker basket dimensions, internal clearance, ventilation requirements, mounting method, and available space.

4. Does the Magnet Cover need ventilation openings?

Not every design requires ventilation openings. Where airflow around the rear speaker assembly is necessary, ventilation slots or openings can be incorporated according to the speaker manufacturer's design requirements.

5. Can Renovator manufacture both the Magnet Cover mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, speaker fitment testing, and bulk production according to customer requirements.
