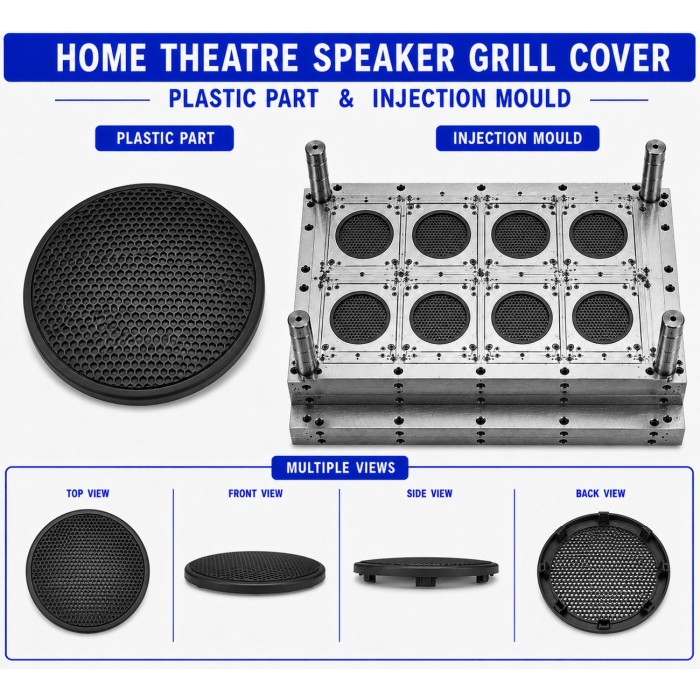

Home Theatre Plastic Speaker Grill Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Home Theatre Plastic Speaker Grill Cover is a protective and decorative plastic component fitted over the front side of a home theatre speaker to protect the speaker driver, tweeter, and internal acoustic components from accidental contact, dust, and physical damage. It also provides a finished appearance to the speaker cabinet while allowing sound to pass through the designated grille openings.

The Speaker Grill Cover can be designed with perforated openings, acoustic slots, mounting clips, screw bosses, locating pins, snap-fit features, and cabinet attachment points according to the speaker design.

Renovator Appliances Ltd provides complete Home Theatre Plastic Speaker Grill Cover Mould and Moulding Services, including product development, grille pattern design, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, speaker fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Speaker Grill Cover is designed to provide both speaker protection and an attractive front appearance.

The grille can be manufactured with a customized hole pattern, slot pattern, mesh-style opening, rounded opening, or decorative grille design according to the required acoustic and visual requirements.

The component can incorporate snap-fit clips, screw bosses, locating pins, retaining tabs, mounting flanges, and reinforcement ribs for secure installation on the speaker cabinet.

The outer surface can be customized with different textures, finishes, colours, and decorative profiles to match the speaker cabinet.

The grille opening pattern can be designed according to the required open-area ratio and acoustic clearance around the speaker driver.

Industrial Applications

The Home Theatre Plastic Speaker Grill Cover is used in:

• Home Theatre Speaker Systems

• Surround Sound Speakers

• Satellite Speakers

• Bookshelf Speakers

• Soundbar Systems

• Multimedia Speakers

• Subwoofer Cabinets

• Centre Channel Speakers

• Audio-Video Equipment

• OEM Speaker Cabinets

The exact design depends on the speaker driver size, tweeter location, cabinet dimensions, mounting arrangement, grille opening pattern, and acoustic requirements.

Manufacturing Process

The Home Theatre Plastic Speaker Grill Cover is manufactured using plastic injection moulding.

The product design is developed according to the speaker cabinet dimensions, driver position, tweeter location, required grille opening area, mounting method, and desired appearance.

The selected plastic material is heated and injected into a precision mould cavity. The mould forms the outer grille profile, perforations or slots, mounting clips, locating features, screw bosses, retaining tabs, and reinforcement ribs.

After filling and packing, the component is cooled under controlled conditions to maintain dimensional stability. The mould then opens and the finished grille cover is ejected.

The moulded grille is inspected for opening dimensions, overall size, flatness, mounting accuracy, surface finish, flash, warpage, and speaker-cabinet fitment.

Mould Manufacturing Process

The Home Theatre Plastic Speaker Grill Cover Mould is designed according to the grille's overall dimensions, opening pattern, wall thickness, mounting features, surface requirements, and production volume.

Special attention is given to the grille openings and thin sections, as these features require proper mould filling, cooling, and ejection design.

The mould incorporates the required cavity, core, gate system, cooling channels, ejector system, and suitable inserts.

For complex grille patterns, appropriate mould inserts or precision-machined cavity features can be used to maintain consistent opening dimensions.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for grille-opening accuracy, mounting clips, screw-boss dimensions, flatness, warpage, flash, surface finish, and actual speaker-cabinet fitment before production approval.

Raw Materials

The material for a Home Theatre Plastic Speaker Grill Cover should provide good impact resistance, dimensional stability, surface appearance, and sufficient rigidity.

Depending on the application, ABS, HIPS, PP, or PC-ABS can be considered.

ABS and HIPS are suitable for rigid speaker grille applications where appearance and dimensional accuracy are important. PP can be considered for lightweight grille designs, while PC-ABS can be selected where higher impact resistance is required.

The final material should be selected according to the grille size, opening pattern, mounting method, impact requirements, cabinet vibration, surface finish, colour, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Speaker Grill Cover focuses on appearance, opening accuracy, structural integrity, and speaker-cabinet fitment.

The component can be checked for:

• Overall Length

• Overall Width

• Overall Height

• Grille Opening Dimensions

• Opening Pattern

• Wall Thickness

• Clip Dimensions

• Screw-Boss Dimensions

• Mounting-Hole Position

• Flatness

• Surface Finish

The moulded grille is inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, incomplete openings, and surface defects.

Functional assembly testing can be performed using the actual speaker cabinet, woofer, tweeter, screws, clips, and mounting components to verify secure installation and proper clearance.

Where required, the completed speaker assembly can also be checked to ensure the grille design does not interfere with the intended acoustic output.

Production Capacity

Production capacity depends on the grille size, product weight, opening complexity, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 2-cavity mould operating at a 25-second cycle has a theoretical production capacity of approximately 288 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

For higher-volume requirements, multi-cavity tooling can be considered where the grille size and moulding process permit it.

Final production capacity should be determined according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Speaker Grill Cover Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing grille sample, speaker cabinet, or complete speaker assembly.

Important specifications include grille dimensions, driver opening, tweeter opening, hole or slot pattern, open-area requirement, wall thickness, mounting method, clip positions, screw-boss locations, plastic material, colour, surface finish, dimensional tolerance, and production quantity.

Providing the actual speaker cabinet and driver assembly is recommended for accurate fitment and clearance verification.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic speaker components used in home theatre, soundbar, subwoofer, and audio-video equipment.

For the Home Theatre Plastic Speaker Grill Cover, our service covers the complete process from product development and grille design to precision mould manufacturing, injection moulding, dimensional inspection, speaker fitment testing, quality inspection, and bulk production.

The grille cover can be developed according to the customer's actual speaker assembly, including specific grille pattern, driver openings, mounting arrangement, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the speaker cabinet, woofer, tweeter, grille cover, mounting system, mould, plastic material, and final speaker assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Speaker Grill Cover?

A Home Theatre Plastic Speaker Grill Cover is a protective and decorative injection-moulded component fitted over the front of a speaker to protect the speaker drivers while allowing sound to pass through the grille openings.

2. Which plastic materials are suitable for a Speaker Grill Cover?

Common options include ABS, HIPS, PP, and PC-ABS. Material selection depends on impact resistance, rigidity, appearance, weight, surface finish, and speaker design.

3. Can the Speaker Grill Cover be customized?

Yes. The grille can be customized according to the speaker dimensions, woofer and tweeter openings, hole pattern, slot pattern, mounting clips, screw bosses, colour, texture, and surface finish.

4. Does the grille opening pattern affect the speaker?

Yes. The grille opening area and pattern can influence acoustic performance, particularly around the driver and tweeter. The opening design should therefore be considered along with the speaker's acoustic requirements.

5. Can Renovator manufacture both the Speaker Grill Cover mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, speaker fitment testing, quality inspection, and bulk production according to customer requirements.
