Home Theatre Plastic Remote Battery Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

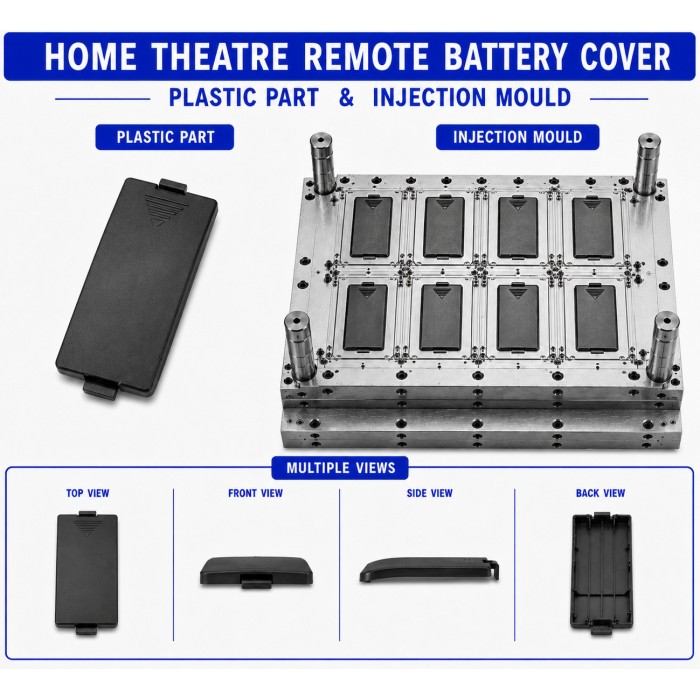

Home Theatre Plastic Remote Battery Cover is a precision injection-moulded plastic component fitted on the rear side of a home theatre remote control. It provides a removable cover for the battery compartment, protecting the batteries and internal electrical contacts while maintaining a clean and finished appearance of the remote control.

The Battery Cover is designed to match the remote control housing and can include sliding rails, locking tabs, snap-fit features, finger-grip grooves, locating ribs, and retention features for easy installation and removal. Accurate dimensions are important to ensure smooth opening and closing while preventing the cover from becoming loose during normal use.

Renovator Appliances Ltd provides complete Home Theatre Plastic Remote Battery Cover Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Remote Battery Cover provides secure closure and protection for the remote control's battery compartment.

It can be designed with sliding guide rails, locking tabs, snap-fit clips, retaining ribs, locating features, and finger-grip surfaces according to the remote control housing design.

The cover can be manufactured with smooth, matte, textured, embossed, or decorative surfaces to match the main remote housing.

Its internal profile can be customized to maintain the required clearance from the battery cells, battery terminals, wiring, and internal components.

The cover can also be designed for tool-free removal and replacement, allowing users to change batteries conveniently.

Industrial Applications

The Home Theatre Plastic Remote Battery Cover is used in:

• Home Theatre Remote Controls

• DVD Player Remote Controls

• Blu-ray Player Remote Controls

• AV Receiver Remote Controls

• Surround Sound System Remote Controls

• Amplifier Remote Controls

• Audio-Video Equipment

• Multimedia Entertainment Systems

• Consumer Electronics

• OEM Remote Control Assemblies

The exact design depends on the remote housing dimensions, battery type, battery orientation, locking mechanism, and internal component arrangement.

Manufacturing Process

The Home Theatre Plastic Remote Battery Cover is manufactured using plastic injection moulding.

The product design is developed according to the battery compartment dimensions and the mating remote-control housing. The required cover profile, guide rails, locking tabs, retaining features, ribs, and finger-grip area are incorporated into the design.

The selected thermoplastic material is heated and injected into a precision mould cavity. The mould forms the outer surface, internal ribs, locking features, sliding rails, locating features, and other assembly details.

After filling and packing, the component is cooled under controlled conditions to maintain dimensional stability. The mould then opens and the finished Battery Cover is ejected.

The moulded component is inspected for overall dimensions, locking engagement, sliding movement, housing fitment, surface finish, warpage, and moulding defects.

Mould Manufacturing Process

The Home Theatre Plastic Remote Battery Cover Mould is designed according to the cover dimensions, wall thickness, locking mechanism, sliding features, surface texture, and required production volume.

The mould incorporates the required cavity, core, parting line, gate system, cooling channels, and ejection mechanism.

Special attention is given to the locking tabs, guide rails, thin walls, and visible outer surface, as these features require accurate moulding and controlled dimensional tolerances.

Where the design contains undercuts or complex locking features, suitable slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. Trial moulding is then performed using the selected plastic material.

Trial parts are checked for sliding movement, locking engagement, dimensional accuracy, surface finish, warpage, flash, and complete fitment with the remote-control housing before production approval.

Raw Materials

The material for a Home Theatre Plastic Remote Battery Cover should provide good dimensional stability, rigidity, impact resistance, and repeated-use durability.

Depending on the application, ABS, HIPS, PP, or PC-ABS can be considered.

ABS is suitable for applications requiring a rigid and attractive surface finish. HIPS can be considered for cost-effective remote covers, while PP can provide lightweight construction and good flexibility. PC-ABS can be selected where higher impact resistance is required.

The final material should be selected according to the cover size, locking mechanism, repeated opening and closing, impact requirements, surface finish, colour, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Remote Battery Cover focuses on dimensional accuracy, locking performance, smooth movement, and appearance.

The component can be checked for:

• Overall Length

• Overall Width

• Overall Height

• Wall Thickness

• Guide-Rail Dimensions

• Locking-Tab Dimensions

• Retaining-Feature Position

• Battery Compartment Clearance

• Surface Finish

• Housing Fitment

The moulded cover is inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, scratches, and other surface defects.

Functional testing can be performed by repeatedly installing and removing the cover from the actual remote-control housing to verify proper sliding or snap-fit operation and secure retention.

Production Capacity

Production capacity depends on the cover size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 4-cavity mould operating at a 20-second cycle has a theoretical production capacity of approximately 720 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

For high-volume requirements, multi-cavity tooling can be considered where the component dimensions and moulding process permit it.

Final production capacity should be determined according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Remote Battery Cover Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing battery cover sample, complete remote housing, or complete remote-control assembly.

Important specifications include cover dimensions, battery type, battery orientation, locking method, sliding direction, guide-rail dimensions, retaining features, wall thickness, surface texture, colour, plastic material, dimensional tolerance, and production quantity.

Providing the actual remote-control housing and battery compartment is recommended to ensure accurate fitment and smooth cover operation.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in home theatre remote controls and consumer-electronics equipment.

For the Home Theatre Plastic Remote Battery Cover, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, fitment testing, surface-quality inspection, and bulk production.

The Battery Cover can be developed according to the customer's actual remote-control housing, including specific battery compartment dimensions, locking mechanism, sliding features, surface finish, colour, material grade, and production quantity.

This integrated approach helps maintain consistency between the Battery Cover, remote housing, battery compartment, locking mechanism, mould, plastic material, and final remote-control assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Remote Battery Cover?

It is the removable plastic component fitted over a remote control's battery compartment to protect the batteries and provide secure closure of the compartment.

2. Which plastic materials are suitable for a Remote Battery Cover?

Common options include ABS, HIPS, PP, and PC-ABS. The material is selected according to rigidity, flexibility, impact resistance, dimensional stability, and surface-finish requirements.

3. Can the Battery Cover be customized?

Yes. It can be customized according to the battery size, compartment dimensions, locking system, sliding mechanism, guide rails, finger grip, colour, texture, and surface finish.

4. Can the Battery Cover use a sliding mechanism?

Yes. The mould can incorporate sliding guide rails, locking tabs, retaining ribs, and locating features for a secure and easy-to-remove battery cover.

5. Can Renovator manufacture both the Battery Cover mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, fitment testing, quality inspection, and bulk production according to customer requirements.
