Product Overview

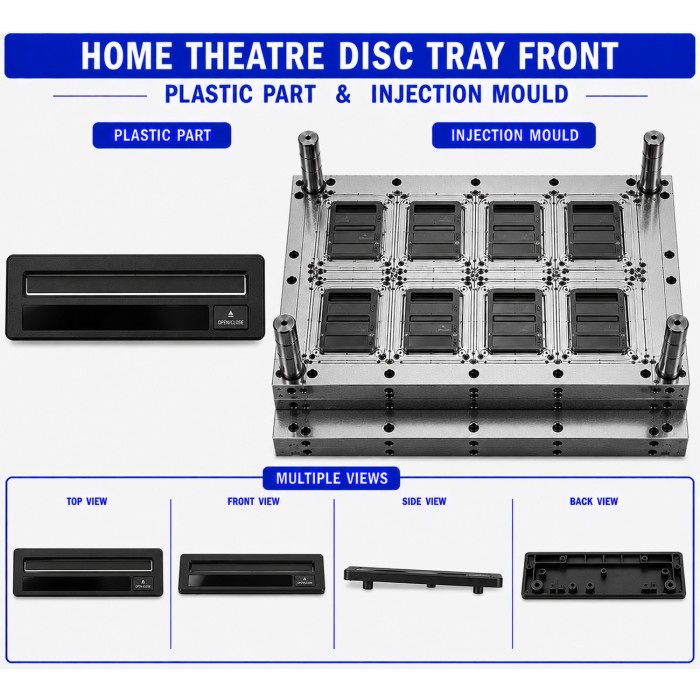

Home Theatre Plastic Disc Tray Front is a precision injection-moulded plastic component fitted to the front edge of a motorized disc tray in home theatre systems and compatible CD, DVD, and Blu-ray equipment. It forms the visible front portion of the tray and provides the user interface for loading and unloading discs while covering the internal tray mechanism.

The Disc Tray Front can be designed with finger-grip areas, display or label openings, decorative surfaces, locating features, snap-fit clips, screw bosses, and alignment sections according to the specific disc tray and front-panel design.

Renovator Appliances Ltd provides complete Home Theatre Plastic Disc Tray Front Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, tray fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Disc Tray Front provides a finished and aesthetically integrated front surface for the moving disc tray.

It can be designed to match the front panel, chassis styling, tray opening, and overall appearance of the home theatre system.

The component can include snap-fit clips, screw mounting points, locating pins, retaining tabs, finger-grip sections, decorative grooves, and alignment features according to the assembly requirements.

The front face can be manufactured with customized textures, colours, gloss levels, matte finishes, embossed markings, or decorative profiles.

Accurate dimensions help maintain proper alignment between the tray front and the home theatre front panel when the tray moves between the open and closed positions.

Industrial Applications

The Home Theatre Plastic Disc Tray Front is used in:

• Home Theatre Systems

• DVD Players

• Blu-ray Players

• CD Players

• Optical Disc Players

• Multimedia Entertainment Systems

• Audio-Video Equipment

• Disc Changer Systems

• Consumer Electronics

• OEM Disc Tray Assemblies

The exact design depends on the disc tray dimensions, front-panel opening, chassis design, tray mechanism, disc format, and mounting arrangement.

Manufacturing Process

The Home Theatre Plastic Disc Tray Front is manufactured using plastic injection moulding.

The product is developed according to the dimensions of the disc tray and the corresponding front-panel opening. The design includes the required mounting clips, locating features, screw bosses, front profile, decorative features, and clearance areas.

The selected thermoplastic material is heated and injected into the precision mould cavity. The mould forms the outer profile, mounting features, retaining clips, grooves, labels or decorative sections.

After filling and packing, the component is cooled under controlled conditions to maintain dimensional stability. The mould then opens and the finished Disc Tray Front is ejected.

The moulded component is inspected for overall dimensions, front-panel alignment, clip positions, mounting features, surface finish, warpage, flash, and tray fitment.

Mould Manufacturing Process

The Home Theatre Plastic Disc Tray Front Mould is designed according to the front component's overall dimensions, mounting arrangement, surface requirements, wall thickness, decorative details, and production volume.

The mould incorporates the required cavity, core, parting line, gate system, cooling channels, and ejection mechanism.

Special attention is given to the front visible surface, because it requires consistent texture, gloss, colour appearance, and freedom from visible moulding defects.

If the component contains undercuts, snap-fit features, or complex side details, suitable slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial parts are checked for front-panel alignment, tray fitment, mounting-feature accuracy, surface finish, flatness, warpage, flash, and dimensional stability before production approval.

Raw Materials

The material for a Home Theatre Plastic Disc Tray Front should provide good dimensional stability, rigidity, surface appearance, and resistance to normal handling.

Depending on the application, ABS, HIPS, PP, or PC-ABS can be considered.

ABS and HIPS are suitable for visible electronic enclosure components where appearance and dimensional accuracy are important. PP can be considered for lightweight designs, while PC-ABS can be selected where higher impact resistance is required.

The final material should be selected according to the tray size, mounting method, operating conditions, impact requirements, surface finish, colour, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Disc Tray Front focuses on dimensional accuracy, front-panel alignment, mounting integrity, and appearance.

The component can be checked for:

• Overall Length

• Overall Width

• Overall Height

• Front-Panel Opening Fit

• Mounting-Clip Dimensions

• Screw-Boss Dimensions

• Locating-Pin Position

• Wall Thickness

• Flatness

• Surface Finish

The moulded component is inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, flow marks, scratches, and other visible defects.

Functional assembly testing can be performed by installing the component on the actual disc tray, chassis, front panel, and tray mechanism to verify proper alignment throughout the opening and closing movement.

Production Capacity

Production capacity depends on the product size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 2-cavity mould operating at a 25-second cycle has a theoretical production capacity of approximately 288 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

For high-volume requirements, multi-cavity tooling can be considered where the component dimensions and moulding process permit it.

Final production capacity should be determined according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Disc Tray Front Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing tray-front sample, complete disc tray, or home theatre front-panel assembly.

Important specifications include front dimensions, tray opening size, mounting clips, screw bosses, locating features, front-panel clearance, surface texture, colour, gloss level, plastic material, dimensional tolerance, and production quantity.

Providing the actual disc tray and front panel is recommended to verify proper alignment and clearance during the complete tray opening and closing cycle.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in home theatre, optical-disc, audio-video, and consumer-electronics equipment.

For the Home Theatre Plastic Disc Tray Front, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, surface-quality inspection, tray fitment testing, and bulk production.

The component can be developed according to the customer's actual disc tray and front-panel assembly, including specific dimensions, mounting arrangement, surface texture, colour, finish, material grade, and production quantity.

This integrated approach helps maintain consistency between the disc tray, tray mechanism, front panel, Disc Tray Front, mould, plastic material, and final home theatre assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Disc Tray Front?

A Home Theatre Plastic Disc Tray Front is the visible plastic component attached to the front edge of a motorized disc tray, providing the finished front appearance and user-facing grip area.

2. Which plastic materials are suitable for a Disc Tray Front?

Common options include ABS, HIPS, PP, and PC-ABS. Material selection depends on rigidity, dimensional stability, impact resistance, appearance, and surface-finish requirements.

3. Can the Disc Tray Front be customized?

Yes. It can be customized according to the tray dimensions, front-panel opening, mounting clips, screw bosses, locating features, colour, texture, gloss level, and decorative design.

4. Why is alignment important for a Disc Tray Front?

Accurate alignment ensures that the tray front sits correctly within the home theatre front-panel opening and maintains consistent clearance while the tray opens and closes.

5. Can Renovator manufacture both the Disc Tray Front mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, surface-quality inspection, tray fitment testing, quality inspection, and bulk production according to customer requirements.
