Product Overview

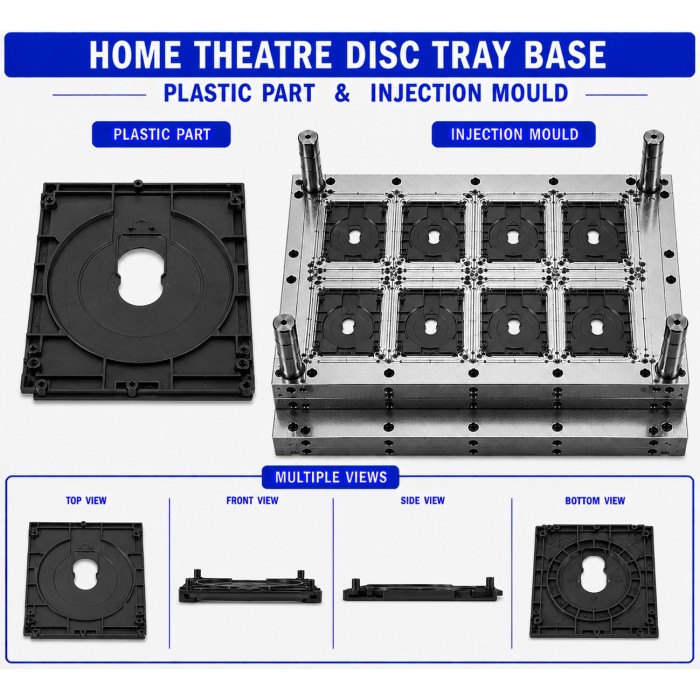

Home Theatre Plastic Disc Tray Base is a precision injection-moulded structural component used as the supporting base of a motorized disc tray mechanism in home theatre systems, DVD/Blu-ray players, and compatible audio-video equipment. It provides the foundation on which the disc tray, guide components, gears, spindle-related mechanisms, and other tray operating parts can be positioned and supported.

The tray base is designed with guide tracks, mounting bosses, screw posts, locating features, reinforcement ribs, gear clearances, motor mounting provisions, and tray-support surfaces according to the specific disc-drive mechanism.

Renovator Appliances Ltd provides complete Home Theatre Plastic Disc Tray Base Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, mechanism fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Disc Tray Base provides a stable mounting platform for the disc-loading mechanism and helps maintain accurate positioning of moving tray components.

The component can incorporate linear guide channels, mounting bosses, screw posts, locating pins, gear clearances, motor mounting points, stopper features, and reinforcement ribs according to the mechanism design.

Its guide surfaces can be manufactured with controlled dimensions to support smooth tray movement. The base can also include openings and clearances for drive gears, belts, motors, switches, and other mechanism components.

The design can be customized according to the disc tray dimensions, loading mechanism, chassis layout, drive motor position, gear arrangement, and assembly requirements.

Industrial Applications

The Home Theatre Plastic Disc Tray Base is used in disc-loading and optical-media mechanisms for:

• Home Theatre Systems

• DVD Players

• Blu-ray Players

• CD/DVD Audio Systems

• Optical Disc Players

• Multimedia Entertainment Systems

• Audio-Video Equipment

• Disc Changer Mechanisms

• OEM Home Theatre Equipment

• Consumer Electronics

The exact design depends on the disc format, tray size, loading mechanism, motor arrangement, gear system, optical-drive chassis, and available installation space.

Manufacturing Process

The Home Theatre Plastic Disc Tray Base is manufactured using plastic injection moulding.

The product design is developed according to the disc tray mechanism, chassis dimensions, guide-track geometry, motor position, gear clearances, mounting locations, and required structural support.

The selected thermoplastic material is heated and injected into the precision mould cavity. The mould forms the base structure, guide tracks, mounting bosses, screw posts, ribs, locating features, motor provisions, and mechanism clearances.

After filling and packing, the component is cooled to achieve dimensional stability. The mould then opens and the finished tray base is ejected.

The moulded component is inspected for guide-track dimensions, mounting-hole positions, flatness, boss dimensions, warpage, surface finish, and mechanical fitment.

Mould Manufacturing Process

The Home Theatre Plastic Disc Tray Base Mould is designed according to the component's overall dimensions, guide-track geometry, mounting pattern, boss locations, rib structure, gear clearances, and required production volume.

The mould incorporates the required cavity, core, parting line, gate system, cooling channels, and ejection mechanism.

Special attention is given to the guide tracks and mounting bosses, because dimensional variation in these areas can affect tray movement and mechanism alignment.

If the tray base includes complex side features or undercuts, suitable slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for guide-track accuracy, mounting-hole alignment, motor fitment, gear clearance, boss dimensions, flatness, warpage, flash, and overall mechanism fitment before production approval.

Raw Materials

The material for a Home Theatre Plastic Disc Tray Base should provide good rigidity, dimensional stability, wear resistance, and resistance to repeated mechanical movement.

Depending on the application, ABS, HIPS, POM, PP, or PC-ABS can be considered.

ABS and HIPS can be suitable for rigid structural components. POM can be considered for designs where low friction and wear resistance are important around moving guide features. PP can be considered for lightweight designs, while PC-ABS can be selected where higher mechanical performance is required.

The final material should be selected according to the tray movement, guide-track wear, motor load, operating temperature, vibration, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Disc Tray Base focuses on dimensional accuracy, guide-track geometry, structural stability, and mechanism fitment.

The component can be checked for overall length, width, height, guide-track dimensions, mounting-hole diameter, hole-to-hole distance, boss height, screw-post dimensions, wall thickness, flatness, and gear clearance according to the approved drawing.

The moulded base is inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, and surface defects.

Functional testing can be performed by assembling the actual disc tray, guide mechanism, motor, gears, chassis, and related components to verify smooth tray movement and proper mechanical alignment.

Production Capacity

Production capacity depends on the tray-base size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 2-cavity mould operating at a 30-second cycle has a theoretical production capacity of approximately 240 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

For higher-volume requirements, multi-cavity tooling can be considered where the component size, mould dimensions, and injection moulding machine capacity permit it.

Final production capacity should be determined using the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Disc Tray Base Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing tray-base sample, complete tray mechanism, or optical-drive chassis sample.

Important specifications include tray dimensions, guide-track dimensions, motor mounting location, gear arrangement, screw-post positions, chassis mounting points, required clearances, material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual disc tray and drive mechanism is highly useful for validating guide movement, gear clearance, motor alignment, and overall assembly fitment.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in home theatre, audio-video, optical-disc, and consumer-electronics equipment.

For the Home Theatre Plastic Disc Tray Base, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, mechanism fitment testing, and bulk production.

The tray base can be developed according to the customer's actual mechanism, including specific guide-track dimensions, motor mounting points, gear clearances, screw bosses, chassis mounting features, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the disc tray, guide mechanism, motor, gears, chassis, mould, plastic material, and final home theatre assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Disc Tray Base?

A Home Theatre Plastic Disc Tray Base is an injection-moulded structural component that supports and positions the disc tray mechanism and its related moving components inside compatible home theatre and optical-disc equipment.

2. Which plastic materials are suitable for a Disc Tray Base?

Depending on the design, ABS, HIPS, POM, PP, or PC-ABS can be considered. Material selection depends on rigidity, dimensional stability, wear resistance, friction requirements, temperature, and mechanism design.

3. Can the Disc Tray Base be customized?

Yes. It can be customized according to the tray dimensions, guide tracks, motor mounting points, gear clearances, screw bosses, chassis mounting locations, and mechanism layout.

4. Is POM suitable for Disc Tray Base applications?

POM can be considered for designs requiring low friction and good wear resistance, particularly around moving guide features. The final material should be selected according to the complete mechanism design.

5. Can Renovator manufacture both the Disc Tray Base mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, mechanism fitment testing, quality inspection, and bulk production according to customer requirements.
