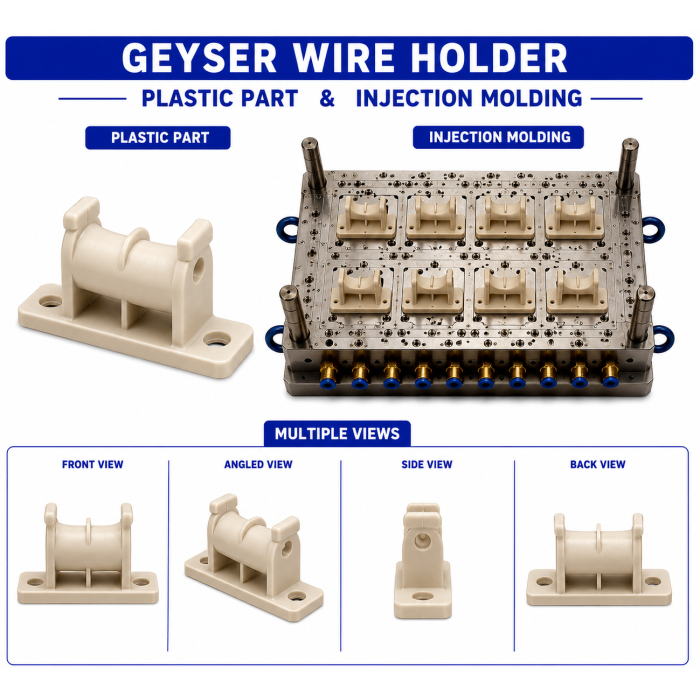

Geyser Plastic Wire Holder Mould and Moulding Service

Product Overview

Geyser Plastic Wire Holder Mould and Moulding Service is designed for manufacturing durable and precisely moulded plastic wire holders used inside and around electric geyser assemblies. The wire holder helps route, position, organize, and secure electrical wires, preventing loose wiring, unwanted movement, and contact with hot or moving components.

The product is manufactured using plastic injection moulding technology, which provides consistent dimensions, accurate fitting, smooth finishing, and repeatable production quality. Custom moulds can be developed according to the required wire diameter, mounting method, dimensions, material, and geyser design.

What is a Geyser Plastic Wire Holder?

A Geyser Plastic Wire Holder is a small plastic component used to hold and guide electrical wires within a geyser. It can be designed with clips, slots, locking features, mounting holes, or snap-fit mechanisms depending on the application.

It helps maintain an organized wiring layout and reduces the possibility of wires becoming loose during assembly, transportation, or operation.

Key Features

• Precision injection moulded construction

• Designed for secure wire positioning

• Compact and lightweight design

• Smooth edges to help protect wire insulation

• Good dimensional accuracy

• Suitable for snap-fit or screw mounting

• Available in customized designs and dimensions

• Consistent quality for high-volume production

• Compatible with different geyser assembly designs

• Available in suitable heat-resistant plastic grades

Industrial Applications

The Geyser Plastic Wire Holder is primarily used in:

• Electric geysers

• Water heaters

• Storage water heaters

• Instant water heaters

• Domestic water heating systems

• Commercial water heating equipment

• Electrical control assemblies

• Heating appliance wiring systems

How Does a Geyser Plastic Wire Holder Work?

The wire holder is positioned at a designated location inside the geyser assembly. Electrical wires are inserted into the holder's slot, clip, or channel, where they remain secured.

The holder helps maintain the required wire routing and prevents unnecessary wire movement. Proper positioning also helps keep wiring away from components where excessive heat, abrasion, or mechanical interference could occur.

Manufacturing Process

The Geyser Plastic Wire Holder is manufactured using a controlled injection moulding process:

1. Material Selection: Suitable plastic is selected according to temperature, mechanical strength, insulation, and application requirements.

2. Material Preparation: Plastic granules are prepared and processed according to the material manufacturer's recommended parameters.

3. Injection: Molten plastic is injected into the precision mould cavity under controlled pressure.

4. Mould Filling: The cavity fills according to the designed runner and gating system.

5. Cooling: The moulded component is cooled until it achieves sufficient rigidity.

6. Ejection: Ejector pins release the finished wire holder from the mould.

7. Inspection: Each production batch is checked for dimensions, appearance, weight, clips, slots, and mounting features.

8. Packing: Approved components are packed for assembly or dispatch.

Mould Manufacturing Process

The mould for the Geyser Plastic Wire Holder is manufactured using precision tooling processes:

1. Product Design

The required product dimensions, wire-routing requirements, mounting features, wall thickness, draft angles, and snap-fit details are analyzed.

2. 3D Mould Design

A CAD model is developed with the required core, cavity, runner, gate, cooling channels, guide system, and ejection mechanism.

3. Mould Material Selection

Depending on production requirements, mould steel such as P20 Steel, H13 Steel, or S136 Steel can be selected.

4. CNC Machining

The core, cavity, mould plates, and other components are precision machined using CNC equipment.

5. EDM Machining

EDM is used where fine details, narrow slots, sharp internal features, or complex geometries require precision machining.

6. Mould Assembly

The mould components, guide pillars, bushes, ejector system, cooling channels, and other required components are assembled.

7. Mould Trial

A mould trial is conducted on an injection moulding machine to evaluate filling, cooling, ejection, dimensions, and product appearance.

8. Final Correction

Any required dimensional or moulding corrections are completed before the mould is approved for regular production.

Raw Materials

Depending on the geyser application and required performance, suitable thermoplastics may include:

• PP (Polypropylene)

• ABS

• Engineering Grade Plastic

• Heat-resistant plastic grades

• Flame-retardant plastic grades, where required by the application

The final material should be selected according to operating temperature, electrical safety requirements, mechanical loading, and customer specifications.

Quality Control

Quality inspection for the Geyser Plastic Wire Holder may include:

• Product dimension inspection

• Weight inspection

• Visual appearance inspection

• Clip and locking feature inspection

• Mounting hole inspection

• Wire-fitting inspection

• Surface finish inspection

• Material verification

• Mould trial validation

• Batch-to-batch consistency checks

Production Capacity on Injection Moulding Machine

Production capacity depends on mould cavity count, injection moulding machine capacity, product weight, material, cycle time, cooling time, and operating efficiency.

For example, with a 4-cavity mould and a 30-second cycle time, the theoretical output is approximately 480 pieces per hour before accounting for machine downtime, material changes, quality inspection, and other production losses.

Multi-cavity moulds can be used for higher-volume production requirements.

Customization Options

The Geyser Plastic Wire Holder can be customized according to:

• Product dimensions

• Wire diameter

• Number of wires

• Mounting method

• Clip design

• Snap-fit mechanism

• Mounting hole size

• Plastic material

• Colour

• Product weight

• Surface finish

• Mould cavity configuration

Buyer Guide

Before ordering a Geyser Plastic Wire Holder Mould and Moulding Service, buyers should provide the required product drawing, 3D CAD model, sample, dimensions, wire specifications, expected production quantity, material requirements, and mounting details.

The mould design should be finalized according to the actual geyser assembly so that the wire holder provides proper fitment and reliable wire retention.

Why Choose Renovator Appliances Ltd.?

Renovator Appliances Ltd. provides customized plastic mould and injection moulding solutions for home appliance components. The Geyser Plastic Wire Holder can be developed according to specific product drawings, dimensions, material requirements, mould configuration, and production volume.

Our moulding approach focuses on dimensional accuracy, repeatable production, reliable mould performance, consistent product quality, and suitability for high-volume manufacturing.

Product Attributes

Frequently Asked Questions

1. What is the purpose of a Geyser Plastic Wire Holder?

It is used to secure, guide, and organize electrical wires inside or around a geyser assembly while helping prevent unwanted wire movement.

2. Which plastic is suitable for a geyser wire holder?

PP, ABS, engineering-grade, heat-resistant, or flame-retardant plastic grades can be considered depending on the temperature and electrical requirements of the application.

3. Can the wire holder mould be customized?

Yes. The mould can be customized according to product dimensions, wire size, mounting arrangement, clip design, material, and production requirements.

4. Is the Geyser Plastic Wire Holder suitable for mass production?

Yes. Injection moulding is well suited for high-volume production, particularly when multi-cavity moulds are used.

5. What information is required to manufacture the mould?

A product drawing, 3D CAD file, physical sample, dimensions, material requirement, expected production volume, and mounting/wire specifications can be used to develop the mould accurately.
