Product Overview

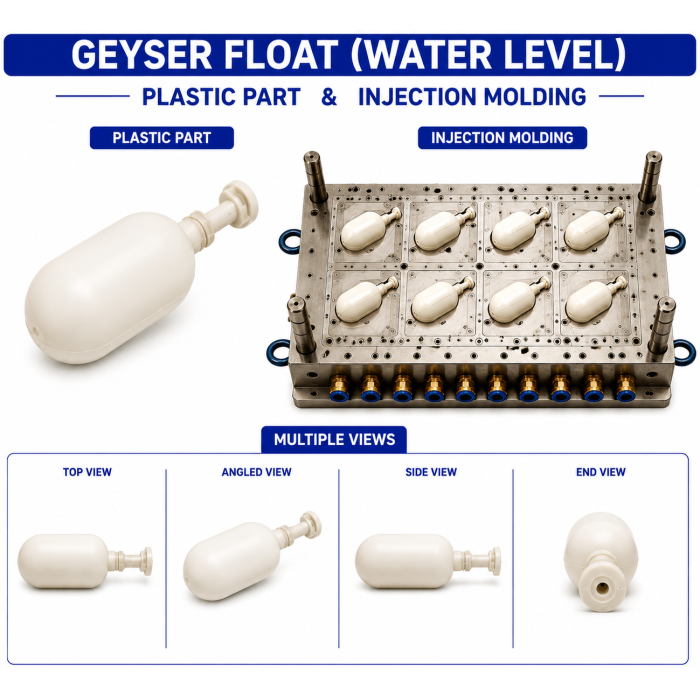

Geyser Plastic Float Mould and Moulding Service is designed for manufacturing precision plastic floats used in geysers, water heaters, and related water-level control or sensing mechanisms. A plastic float is generally designed to move according to changes in water level and can be integrated with a float stem, guide mechanism, valve assembly, or water-level sensing system, depending on the specific appliance design.

Using advanced plastic injection moulding technology, the Geyser Plastic Float can be manufactured with consistent dimensions, controlled weight, smooth surface finish, and repeatable production quality. Customized moulds can be developed according to the required float dimensions, buoyancy requirements, material, mounting arrangement, and application.

What is a Geyser Plastic Float?

A Geyser Plastic Float is a lightweight moulded plastic component designed to provide buoyancy within a water-related mechanism. As the water level changes, the float can move vertically or along a designated path and transfer this movement to an associated mechanism.

The exact shape and construction depend on the geyser's internal design. The float may include a central stem opening, mounting section, guide feature, locking mechanism, or connecting point.

Key Features

• Precision injection moulded construction

• Lightweight and buoyant design

• Consistent dimensions

• Smooth surface finish

• Suitable for water-level mechanisms

• Good dimensional stability

• Customizable shape and size

• Compatible with float stem assemblies

• Suitable for high-volume production

• Available in suitable water-resistant plastic grades

Industrial Applications

Geyser Plastic Floats can be used in:

• Electric geysers

• Storage water heaters

• Instant water heaters

• Domestic water heating systems

• Commercial water heaters

• Water-level sensing mechanisms

• Float-operated mechanisms

• Water control assemblies

• Appliance internal control systems

Function of a Geyser Plastic Float

The primary function of a plastic float is to provide buoyancy and controlled movement in response to water-level changes.

When the water level rises or falls, the float moves accordingly within its designed operating path. This movement can be transferred through a float stem or another mechanism to support water-level monitoring or control, depending on the specific geyser design.

How is the Geyser Plastic Float Manufactured?

The Geyser Plastic Float is manufactured through a controlled plastic injection moulding process:

1. Product Design Analysis

The required float dimensions, buoyancy characteristics, wall thickness, internal structure, connecting features, and operating conditions are analyzed.

2. Material Selection

A suitable plastic material is selected based on buoyancy, water resistance, dimensional stability, mechanical strength, temperature resistance, and application requirements.

3. Material Preparation

Plastic granules are prepared according to the recommended processing parameters for the selected material.

4. Plastic Melting

The plastic material is heated inside the injection moulding machine until it reaches the required molten state.

5. Injection

The molten plastic is injected into the precision mould cavity under controlled pressure and speed.

6. Filling and Packing

The mould cavity is filled completely, followed by appropriate holding pressure to achieve consistent dimensions and minimize shrinkage-related variation.

7. Cooling

Cooling channels within the mould remove heat from the component, allowing the plastic to solidify and maintain its required shape.

8. Ejection

Once adequately cooled, the mould opens and the finished plastic float is removed using the mould ejection system.

9. Inspection

The finished floats are inspected for dimensions, weight, appearance, surface quality, fitment, and other specified requirements.

How is the Plastic Float Mould Made?

The mould used to manufacture the Geyser Plastic Float is developed through precision mould-making processes.

1. Product Drawing and 3D Model Analysis

The product drawing or 3D CAD model is evaluated for dimensions, wall thickness, draft angles, parting line, internal features, shrinkage, and ejection requirements.

2. Mould Design

A complete mould design is prepared, including the core, cavity, runner, gate, cooling channels, ejector system, guide pillars, bushes, and mould plates.

3. Mould Steel Selection

Mould steel is selected according to production volume, required durability, product material, and expected mould life. Common options include:

• P20 Steel

• H13 Steel

• S136 Steel

4. CNC Machining

CNC machining is used to manufacture the core, cavity, plates, and other precision mould components.

5. EDM Machining

EDM machining may be used for detailed internal features, narrow sections, grooves, and complex geometries requiring high precision.

6. Drilling and Grinding

Cooling passages, ejector holes, guide holes, and other required features are manufactured through precision drilling and grinding.

7. Mould Assembly

The core, cavity, ejector system, guide components, cooling system, and other mould parts are assembled and aligned.

8. Mould Trial

The completed mould is tested on an injection moulding machine to evaluate filling, cooling, ejection, dimensions, appearance, and product performance.

9. Final Correction and Approval

Any required corrections identified during the mould trial are completed before the mould is released for regular production.

Raw Materials

Suitable materials for manufacturing a Geyser Plastic Float may include:

• PP (Polypropylene)

• HDPE (High-Density Polyethylene)

• ABS

• Engineering Grade Plastic

• Water-Resistant Plastic Grades

• Heat-Resistant Plastic Grades, where required

Material selection should be based on the required buoyancy, water exposure, operating temperature, chemical compatibility, mechanical strength, and dimensional stability.

Quality Control

Quality control for the Geyser Plastic Float may include:

• Dimensional inspection

• Product weight verification

• Buoyancy or floatation testing, where specified

• Water-resistance evaluation

• Visual inspection

• Surface finish inspection

• Wall-thickness verification

• Fitment inspection

• Flash inspection

• Warpage inspection

• Material verification

• Batch-to-batch consistency checks

Production Capacity on Injection Moulding Machine

Production capacity depends on the machine size, mould cavity count, product weight, plastic material, cycle time, cooling time, and machine operating efficiency.

For example, a 4-cavity mould operating with a 30-second cycle time can theoretically produce approximately 480 pieces per hour. Actual output may vary because of machine downtime, material handling, mould maintenance, quality inspection, and other production factors.

For large-volume requirements, multi-cavity moulds can be designed to increase output and improve production efficiency.

Customization Options

The Geyser Plastic Float can be customized according to:

• Overall dimensions

• Diameter

• Height

• Wall thickness

• Internal cavity

• Float volume

• Stem opening

• Connecting features

• Guide features

• Locking mechanism

• Product weight

• Plastic material

• Colour

• Surface finish

• Mould cavity configuration

Buyer Guide

Before ordering a Geyser Plastic Float Mould and Moulding Service, buyers should provide the required 2D drawing, 3D CAD model, physical sample, product dimensions, material specification, buoyancy requirements, application details, and estimated production quantity.

The float design should be validated according to the actual water-level mechanism to ensure the required buoyancy, movement, fitment, and functional performance.

Why Choose Renovator Appliances Ltd.?

Renovator Appliances Ltd. provides customized plastic mould manufacturing and injection moulding solutions for geyser and home appliance components. We can develop Geyser Plastic Float moulds according to specific product drawings, dimensions, material requirements, float characteristics, mould configuration, and production volume.

Our manufacturing process focuses on precision mould development, consistent injection moulding, dimensional accuracy, reliable fitment, repeatable production, and quality-controlled manufacturing.

Product Attributes

Frequently Asked Questions

1. What is a Geyser Plastic Float?

A Geyser Plastic Float is a lightweight plastic component designed to provide buoyancy and controlled movement within a water-level control or sensing mechanism used in certain geyser and water heater designs.

2. Which plastic material is suitable for a geyser float?

Materials such as PP and HDPE may be suitable for many float applications, while other engineering or specialized grades can be considered according to temperature, water exposure, buoyancy, mechanical, and dimensional requirements.

3. Can the Geyser Plastic Float be customized?

Yes. The float can be customized according to its dimensions, internal structure, stem connection, buoyancy requirements, material, colour, surface finish, and mounting arrangement.

4. Is injection moulding suitable for high-volume float production?

Yes. Injection moulding provides repeatable dimensions and efficient cycle times, making it suitable for regular and high-volume production. Multi-cavity moulds can be used where increased output is required.

5. What information is required to manufacture the plastic float mould?

A 2D product drawing, 3D CAD model, physical sample, dimensions, material specification, required buoyancy, application details, and expected production quantity are useful for accurate mould design and manufacturing.
