Product Overview

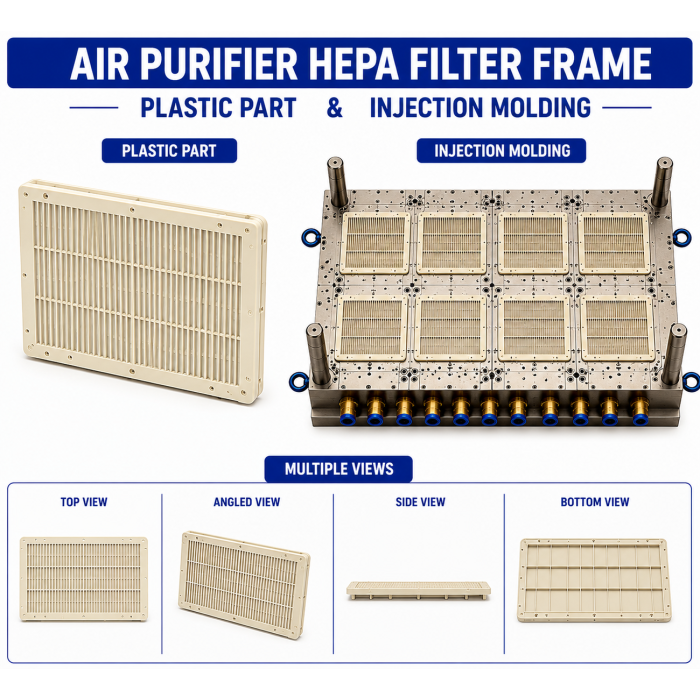

Air Purifier Plastic HEPA Filter Frame is a precision injection-moulded plastic support component used to hold and maintain the shape and position of a HEPA filter element inside an air purifier. The frame provides a rigid structure around the filter media and helps maintain accurate alignment between the filter and its housing, sealing surfaces, fan assembly, and other filtration components.

The frame can be developed according to the HEPA filter's length, width, thickness, pleat arrangement, housing dimensions, airflow direction, sealing interface, and mounting method. Depending on the purifier design, it can include retaining ribs, locating tabs, corner supports, snap-fit features, sealing surfaces, and filter-housing mounting points.

Renovator Appliances Ltd provides complete Air Purifier Plastic HEPA Filter Frame Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, filter fitment testing, and bulk OEM production.

Key Features

The Air Purifier Plastic HEPA Filter Frame provides structural support around the HEPA filter media while helping maintain the required filter position inside the air purifier. Its frame geometry is designed to support the filter without unnecessarily obstructing the active filtration area.

The frame can include retaining ribs, locating features, corner reinforcements, snap-fit clips, mounting tabs, sealing surfaces, and filter-housing interfaces according to the purifier design. These features help prevent filter movement and maintain proper alignment during installation and operation.

The frame can also be designed for easy filter installation and replacement while maintaining the required contact with the housing and sealing interfaces. Its wall thickness and rib structure can be optimized to provide sufficient rigidity without excessive material usage.

Industrial Applications

The Air Purifier Plastic HEPA Filter Frame is used in filtration assemblies where a HEPA filter is installed to remove fine airborne particles from the air passing through the purifier.

Typical applications include:

• Domestic Air Purifiers

• Residential Air Purification Systems

• HEPA Air Purifiers

• Smart Air Purifiers

• Portable Air Purifiers

• Commercial Air Purifiers

• Room Air Cleaners

• Multi-Stage Air Purification Systems

• Air Quality Monitoring Appliances

• OEM Air Purification Equipment

The exact frame design depends on the HEPA filter dimensions, filter media construction, housing geometry, sealing arrangement, airflow direction, and replacement-filter configuration.

Manufacturing Process

The Air Purifier Plastic HEPA Filter Frame is manufactured through a controlled plastic injection moulding process.

First, the frame is designed according to the HEPA filter's overall dimensions, filter opening, media thickness, sealing interface, housing dimensions, and mounting arrangement. Required ribs, retaining features, clips, locating tabs, and housing interfaces are incorporated into the product design.

A suitable thermoplastic material is prepared according to its processing requirements and fed into the injection moulding machine. The material is heated and injected into the mould cavity under controlled pressure and temperature.

The mould forms the frame perimeter, filter-support surfaces, retaining ribs, mounting features, locating elements, and other functional details. After filling and packing, the component is cooled under controlled conditions to minimize warpage and dimensional variation.

The finished frame is then ejected and inspected for filter opening dimensions, frame flatness, wall thickness, mounting features, surface quality, and filter fitment.

Mould Manufacturing Process

The Air Purifier Plastic HEPA Filter Frame Mould is designed according to the frame's overall dimensions, filter opening, wall thickness, support ribs, retaining features, sealing interface, housing mounting arrangement, production volume, and expected mould life.

The mould incorporates the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. Particular attention is given to the filter-contact and sealing areas because dimensional variation in these regions can affect filter seating and air bypass.

If the frame contains snap-fit clips, undercuts, or complex retaining features, appropriate slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for overall dimensions, filter opening size, frame flatness, wall thickness, rib dimensions, clip geometry, sealing-interface dimensions, warpage, flash, surface finish, and actual filter fitment before final production approval.

Raw Materials

The material for an Air Purifier Plastic HEPA Filter Frame should provide adequate rigidity, dimensional stability, impact resistance, and resistance to the operating environment of the filtration assembly.

Depending on the design, PP, ABS, HIPS, PC-ABS, or PBT can be considered. PP can be suitable for lightweight filter-frame applications where impact resistance and ease of moulding are beneficial. ABS and HIPS can be considered where higher rigidity and dimensional stability are required, while PC-ABS or PBT may be selected for more demanding mechanical or temperature conditions.

The final plastic grade should be selected according to the HEPA filter weight, sealing requirements, mounting method, vibration, operating temperature, required rigidity, dimensional tolerances, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic HEPA Filter Frame focuses on accurate filter fitment, frame flatness, dimensional stability, and sealing-interface accuracy.

The finished component can be checked for overall length, width, height, filter opening dimensions, frame thickness, rib dimensions, clip dimensions, locating features, sealing surfaces, and housing-mounting dimensions according to the approved drawing.

The moulded frame is also inspected for flash, short shots, sink marks, warpage, cracks, burrs, weld lines, flow marks, and other surface defects.

Assembly testing can be performed using the actual HEPA filter, filter housing, sealing components, and air purifier cabinet to verify correct positioning, retention, seating, and clearance.

Where the frame contributes to the filtration seal, the assembled filter can also be checked for proper seating and unwanted bypass gaps according to the customer's design requirements.

Production Capacity

Production capacity depends on the frame dimensions, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 2-cavity mould operating with a 25-second cycle has a theoretical output of approximately 288 pieces per hour before accounting for inspection, material handling, machine downtime, mould maintenance, and other production losses.

For higher-volume requirements, multi-cavity tooling can be considered where the frame size, mould dimensions, and machine capacity permit it.

Final production capacity should be established according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic HEPA Filter Frame Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing filter frame sample, HEPA filter, or complete filter assembly.

Important specifications include HEPA filter length, width, thickness, pleat arrangement, frame dimensions, filter opening, housing dimensions, sealing arrangement, retaining method, mounting features, plastic material, colour, surface finish, dimensional tolerances, and required production quantity.

Providing the actual HEPA filter and filter housing is recommended because the frame needs to maintain the correct fit, retention, alignment, and sealing relationship with the complete filtration assembly.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic filtration and structural components used in air purifiers and other home appliances.

For the Air Purifier Plastic HEPA Filter Frame, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, filter fitment testing, sealing-interface checks, and bulk OEM production.

The frame can be developed according to the customer's actual filtration assembly, including specific HEPA filter dimensions, retaining features, housing interfaces, sealing requirements, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the HEPA filter media, plastic frame, filter housing, sealing interface, mould, plastic material, and final air purifier assembly.

Frequently Asked Questions (FAQ)

1. What is an Air Purifier Plastic HEPA Filter Frame?

An Air Purifier Plastic HEPA Filter Frame is an injection-moulded plastic support structure that holds a HEPA filter in its required position and helps maintain proper alignment and seating inside an air purifier.

2. Which plastic materials are suitable for a HEPA Filter Frame?

Depending on the application, PP, ABS, HIPS, PC-ABS, or PBT can be considered. Material selection depends on rigidity, dimensional stability, filter weight, vibration, operating temperature, sealing requirements, and housing design.

3. Can the HEPA Filter Frame be customized?

Yes. The frame can be customized according to the filter length, width, thickness, frame profile, retaining ribs, clips, locating features, sealing surfaces, housing interface, colour, and surface finish.

4. Can the frame be manufactured according to an existing HEPA filter?

Yes. An existing HEPA filter, filter frame, or complete filter-housing assembly can be used as a reference for developing the CAD model, mould, and injection-moulded frame.

5. Can Renovator manufacture both the HEPA Filter Frame mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, HEPA filter fitment testing, housing assembly checks, sealing-interface inspection, and bulk production according to customer requirements.
