Product Overview

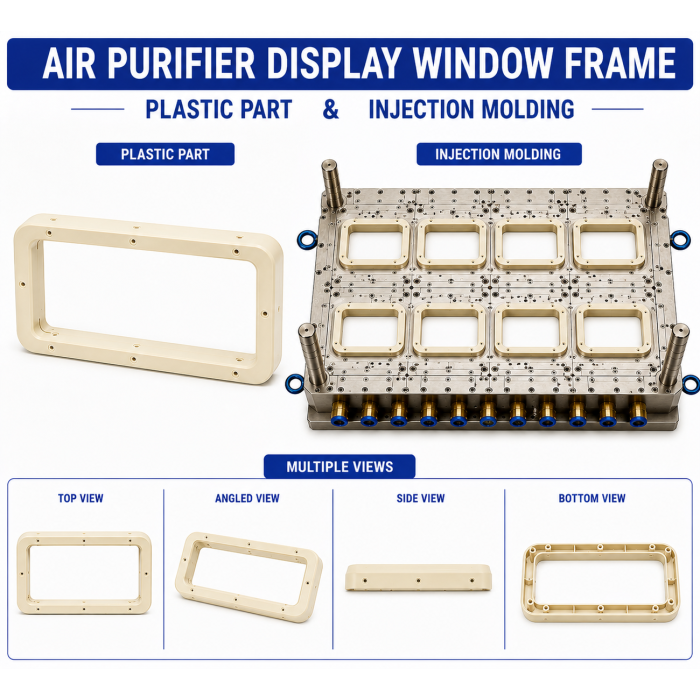

Air Purifier Plastic Display Window Frame is a precision injection-moulded plastic component used around the display area of an air purifier. It provides a defined frame and mounting interface for the display window, LED indicators, digital screen, or other visual-status elements on the front control section of the appliance.

The frame helps maintain accurate positioning of the display area while covering the surrounding panel gap and providing a clean finished appearance. It can be designed according to the display size, front-panel geometry, button arrangement, display lens, mounting method, and required viewing area.

Renovator Appliances Ltd provides complete Air Purifier Plastic Display Window Frame Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, surface-finish inspection, display fitment testing, and bulk production.

Key Features

The Air Purifier Plastic Display Window Frame is designed to provide a precise and stable interface around the appliance display. Its opening can be manufactured according to the exact dimensions of the LED panel, LCD display, segmented display, or other visual indicator used in the air purifier.

The frame can include display locating ribs, retaining lips, snap-fit features, mounting bosses, alignment tabs, and panel-locking features according to the assembly design. These features help maintain the correct position of the display and prevent movement during appliance assembly.

The visible surface of the frame can be developed with a smooth, matte, textured, glossy, or decorative finish to match the air purifier's front panel.

Industrial Applications

The Air Purifier Plastic Display Window Frame is used in air purifier control and display assemblies where a defined opening and mounting interface is required for a display or indicator section.

It can be used in:

• Domestic Air Purifiers

• Residential Air Purification Systems

• Commercial Air Purifiers

• Smart Air Purifiers

• HEPA Air Purifier Systems

• Touch-Control Air Purifiers

• Digital Air Purifiers

• OEM Air Purification Appliances

• Air Quality Monitoring Appliances

The exact design depends on the display type, screen dimensions, front-panel structure, display lens, indicator arrangement, and user-interface design.

Manufacturing Process

The Air Purifier Plastic Display Window Frame is manufactured through plastic injection moulding.

The product is first developed according to the display dimensions, front-panel opening, required viewing area, wall thickness, mounting features, and surrounding components.

A suitable plastic material is selected according to the required rigidity, dimensional stability, surface appearance, and operating conditions. The material is then processed and injected into the precision mould cavity.

The mould forms the outer frame profile, display opening, retaining lips, locating features, clips, bosses, and mounting details. After cavity filling and packing, the component is cooled under controlled conditions to achieve dimensional stability.

The finished frame is then ejected and inspected for display opening accuracy, overall dimensions, surface quality, warpage, flash, and fitment with the display and front panel.

Mould Manufacturing Process

The Air Purifier Plastic Display Window Frame Mould is designed according to the frame's outer dimensions, display opening, panel interface, mounting features, surface finish, production volume, and required mould life.

The mould includes the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. Particular attention is given to the display opening because even small dimensional variation can affect display alignment and visible gaps.

For frames containing undercuts, snap-fit features, or side retaining elements, suitable slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed with the selected plastic material.

Trial parts are checked for display opening size, frame thickness, mounting alignment, surface finish, warpage, flash, ejection, and actual display fitment before production approval.

Raw Materials

The material for an Air Purifier Plastic Display Window Frame should provide adequate rigidity, dimensional stability, and good surface appearance because the component surrounds a visible display area.

Depending on the application, ABS, PC-ABS, HIPS, PP, or PBT can be considered.

ABS and PC-ABS are suitable where a rigid frame with good surface appearance and dimensional stability is required. HIPS may be considered for certain appliance enclosure applications, while PP can be used where lightweight construction is preferred.

The final material should be selected according to the display mounting arrangement, front-panel design, operating temperature, required rigidity, surface finish, colour, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic Display Window Frame focuses particularly on the accuracy of the display opening and the visual quality of the component.

The finished frame can be checked for overall length, width, height, display opening length and width, wall thickness, frame width, mounting-hole dimensions, clip dimensions, locating-feature positions, and front-panel fitment.

The moulded component is also inspected for flash, short shots, sink marks, warpage, cracks, burrs, flow marks, weld lines, scratches, and other surface defects.

Assembly testing can be performed using the actual display module, display lens, PCB, front panel, and related mounting components to verify correct alignment, clearance, and secure fitment.

Production Capacity

Production capacity depends on the frame size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 4-cavity mould operating at a 20-second cycle has a theoretical output of approximately 720 pieces per hour before inspection, material handling, machine downtime, mould maintenance, and other production losses.

For high-volume requirements, multi-cavity tooling can be considered where the frame dimensions and moulding process permit it.

Final production capacity should be determined from the approved product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Display Window Frame Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing frame sample, display module, or front-panel sample.

Important specifications include display dimensions, display opening dimensions, frame width, overall panel dimensions, mounting method, snap-fit arrangement, display lens dimensions, PCB position, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual display module and front panel is recommended because the frame must maintain accurate alignment between the display and the user-facing surface.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in air purifiers and other home appliances.

For the Air Purifier Plastic Display Window Frame, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, surface-finish inspection, display fitment testing, and bulk production.

The frame can be developed according to the customer's actual display and front-panel assembly, including specific opening dimensions, mounting features, retaining elements, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the display module, front panel, frame geometry, mould, plastic material, and final air purifier assembly.
