Product Overview

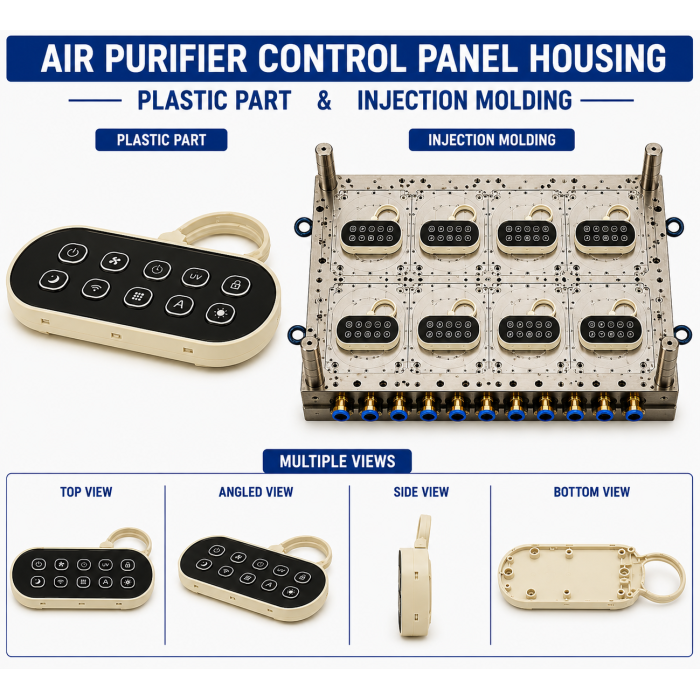

Air Purifier Plastic Control Panel Housing is a precision injection-moulded plastic enclosure used to accommodate and protect the user-control section of an air purifier. It provides the structural housing for components such as control buttons, touch interfaces, display modules, indicator lights, switches, and associated PCB assemblies, depending on the air purifier design.

The housing is designed to maintain accurate alignment between the user interface and the internal electronic components while also providing a finished interface with the main air purifier cabinet. It can be customized with display openings, button apertures, PCB mounting bosses, cable-routing provisions, clips, screw posts, locating ribs, and other assembly features.

Renovator Appliances Ltd provides complete Air Purifier Plastic Control Panel Housing Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, surface-finish inspection, and bulk OEM production.

Key Features

The Air Purifier Plastic Control Panel Housing is designed to securely position the control-panel components while protecting the internal electronics from mechanical damage during assembly and normal operation. Its geometry can accommodate individual push buttons, touch-control modules, displays, LEDs, switches, or combinations of these interfaces.

The housing can include PCB mounting bosses, screw posts, locating pins, snap-fit clips, cable channels, display openings, button openings, and reinforcement ribs according to the product design. Properly positioned bosses and locating features help maintain the alignment between the control PCB and the external user interface.

The outer surface can be manufactured with smooth, matte, textured, or gloss finishes, while colour can be customized to match the overall air purifier enclosure.

Industrial Applications

The Air Purifier Plastic Control Panel Housing is used in the user-interface and electronic control assemblies of air purification equipment.

It can be applied in:

• Domestic Air Purifiers

• Residential Air Purification Systems

• Commercial Air Purifiers

• Smart Air Purifiers

• Digital Air Purifiers

• Touch-Control Air Purifiers

• HEPA Air Purifier Systems

• Air Quality Monitoring Appliances

• OEM Air Purification Equipment

• Customized Air Purifier Systems

The actual housing design depends on the control PCB, display module, button arrangement, touch interface, front-panel geometry, wiring layout, and available internal space.

Manufacturing Process

The Air Purifier Plastic Control Panel Housing is manufactured through a controlled plastic injection moulding process.

The product is first designed according to the dimensions of the PCB, buttons, display, switches, wiring, and surrounding cabinet. Required mounting bosses, openings, clips, ribs, and cable-routing features are incorporated into the CAD design.

A suitable thermoplastic material is prepared according to its processing requirements and fed into the injection moulding machine. The material is heated and injected into the mould cavity under controlled pressure and temperature.

The mould forms the housing walls, display openings, button openings, PCB mounting bosses, screw posts, locating features, cable passages, and reinforcement structures. After filling and packing, the component is cooled under controlled conditions to minimize shrinkage and warpage.

Once cooled, the housing is ejected from the mould and inspected for dimensional accuracy, PCB fitment, button alignment, display opening accuracy, surface quality, flash, and warpage.

Mould Manufacturing Process

The Air Purifier Plastic Control Panel Housing Mould is developed according to the housing dimensions, PCB arrangement, control-interface openings, mounting features, surface finish, production volume, and required mould life.

The mould design includes the required cavity, core, parting line, gating system, cooling channels, ejector system, and mould inserts. Particular attention is given to the control openings and PCB mounting bosses because dimensional errors in these areas can affect the operation and alignment of the complete control assembly.

If the housing contains undercuts, side clips, locking features, or complex cable passages, suitable slides, lifters, or inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After assembly, mould trials are carried out using the selected plastic material.

Trial components are checked for PCB fitment, button alignment, display opening dimensions, mounting-boss accuracy, cable clearance, warpage, flash, surface finish, and assembly compatibility before final production approval.

Raw Materials

The material for an Air Purifier Plastic Control Panel Housing should provide good dimensional stability, rigidity, impact resistance, and surface quality because the component supports electronic control hardware and may remain partially visible.

Depending on the application, ABS, PC-ABS, HIPS, PP, or PBT can be considered. ABS and PC-ABS are suitable choices where rigidity, dimensional accuracy, and appearance are important. PBT can be considered where improved temperature resistance and dimensional stability are required.

Where the control housing is located close to electrical components or heat-generating parts, an appropriate flame-retardant or heat-resistant plastic grade can be selected according to the required technical specification.

Quality Control

Quality control for the Air Purifier Plastic Control Panel Housing focuses on the dimensional accuracy of the electronic-control interface and the fitment of the internal components.

The housing can be inspected for overall length, width, height, wall thickness, PCB mounting-hole position, screw-boss dimensions, button openings, display-window dimensions, cable-entry openings, clip dimensions, and locating features.

The moulded component is also checked for flash, short shots, sink marks, warpage, cracks, burrs, weld lines, scratches, flow marks, and other surface defects.

Assembly inspection can be performed by fitting the actual PCB, buttons, display, indicator module, wiring, and main air purifier cabinet to verify correct alignment and secure mounting.

Production Capacity

Production capacity depends on the housing size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 2-cavity mould operating at a 25-second cycle has a theoretical output of approximately 288 pieces per hour before accounting for inspection, material handling, machine downtime, mould maintenance, and other production losses.

For larger production quantities, multi-cavity tooling can be considered where the housing geometry and machine capacity permit it.

Final production capacity should be established from the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Control Panel Housing Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing housing sample, PCB, control panel, or complete air purifier front assembly.

Important specifications include PCB dimensions, mounting-hole pattern, button dimensions, display size, switch arrangement, cable-routing requirements, housing dimensions, mounting method, operating temperature, plastic grade, colour, surface finish, dimensional tolerances, and expected production quantity.

Providing the actual PCB and control components is especially helpful because the housing must maintain accurate alignment between the electronic assembly and the external user interface.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic control and enclosure components used in air purifiers and other home appliances.

For the Air Purifier Plastic Control Panel Housing, our service covers the complete process from product development and mould design to precision mould manufacturing, injection moulding, dimensional inspection, surface-quality inspection, electronic-component fitment testing, and bulk production.

The housing can be developed according to the customer's actual control assembly, including specific PCB dimensions, button openings, display windows, mounting bosses, cable passages, material grade, colour, surface finish, and production quantity.

This integrated manufacturing approach helps maintain consistency between the PCB, display, control buttons, housing, mould, plastic material, and final air purifier assembly.

Frequently Asked Questions (FAQ)

1. What is an Air Purifier Plastic Control Panel Housing?

An Air Purifier Plastic Control Panel Housing is an injection-moulded plastic enclosure that supports and protects the control PCB, buttons, display, indicators, and other user-interface components of an air purifier.

2. Which plastic materials are suitable for a Control Panel Housing?

Common options include ABS, PC-ABS, HIPS, PP, and PBT. The final material depends on rigidity, dimensional stability, operating temperature, surface requirements, and electrical-enclosure specifications.

3. Can the Control Panel Housing be customized?

Yes. It can be customized according to PCB dimensions, button arrangement, display opening, mounting bosses, screw posts, cable routing, clips, wall thickness, colour, and surface finish.

4. Can the housing accommodate a touch-control panel?

Yes. The housing can be designed with a suitable touch-interface opening or integrated front surface according to the touch-control module and air purifier front-panel design.

5. Can Renovator manufacture both the Control Panel Housing mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, PCB and control-component fitment testing, surface-quality inspection, and bulk OEM production.
