Air Purifier Plastic Air Guide Vanes Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

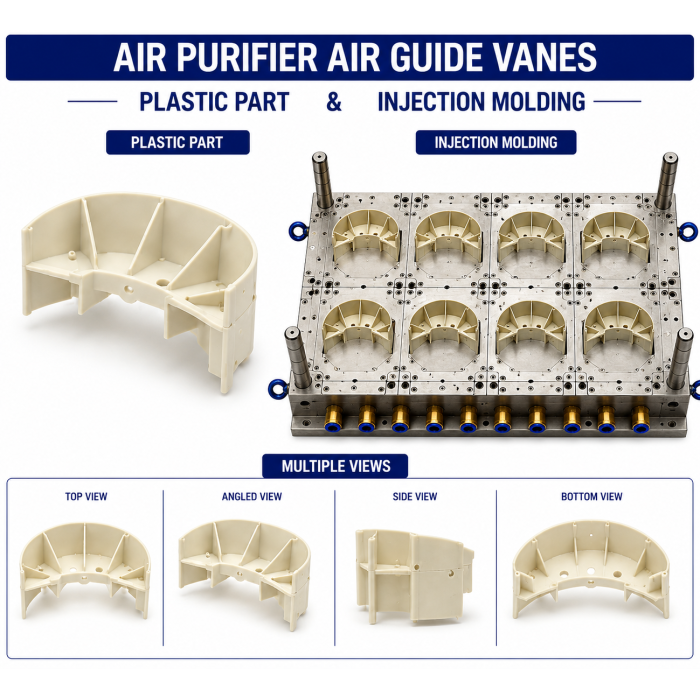

Air Purifier Plastic Air Guide Vanes are precision injection-moulded airflow-control components used inside an air purifier to direct, distribute, and control the movement of air through the appliance. The vanes are positioned within the inlet, internal air passage, or outlet section and help guide the airflow toward the required direction while maintaining an efficient air path.

The vane geometry can be developed with a specific length, width, thickness, curvature, angle, spacing, and mounting arrangement according to the air purifier's airflow system. Multiple vanes can be assembled as a fixed vane array or integrated into a larger air-guide structure.

Renovator Appliances Ltd provides complete Air Purifier Plastic Air Guide Vanes Mould and Moulding Services, including product development, airflow-component design, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, vane-angle inspection, assembly fitment testing, and bulk OEM production.

Key Features

The Air Purifier Plastic Air Guide Vanes are designed to control the direction and distribution of moving air inside the purifier. Their angled or curved surfaces help turn airflow toward the required path and can be arranged to achieve more uniform air distribution.

The vanes can be manufactured with fixed-angle profiles, curved guide surfaces, locating tabs, mounting pins, snap-fit features, pivot points, or connecting links depending on whether the vanes are fixed or adjustable.

For adjustable airflow systems, the vane can be designed with a pivot interface so that its angle can be changed through a common linkage or actuator mechanism. For fixed systems, the vane geometry can be moulded directly into a fixed support structure.

Industrial Applications

The Air Purifier Plastic Air Guide Vanes are used in airflow-management systems of air purification equipment.

Typical applications include:

• Domestic Air Purifiers

• Residential Air Purification Systems

• HEPA Air Purifiers

• Smart Air Purifiers

• Portable Air Purifiers

• Commercial Air Purifiers

• Room Air Cleaners

• Air Quality Monitoring Appliances

• Multi-Stage Air Purification Systems

• OEM Air Purification Equipment

The exact vane design depends on the fan airflow, air outlet configuration, internal air passage, required discharge direction, cabinet geometry, and airflow-distribution requirements.

Manufacturing Process

The Air Purifier Plastic Air Guide Vanes are manufactured through a controlled plastic injection moulding process.

First, the vane geometry is developed according to the required airflow direction, angle, curvature, spacing, and mounting arrangement. The design is coordinated with the fan, airflow guide, filter housing, and outlet grille.

A suitable thermoplastic material is selected according to the required rigidity, dimensional stability, temperature resistance, and operating conditions. The material is then prepared and fed into the injection moulding machine.

The plastic is heated and injected into the precision mould cavity, which forms the vane's curved or angled guide surface, mounting features, pivot interface, ribs, and other required details.

After filling and packing, controlled cooling is used to minimize shrinkage and warpage. The mould then opens and the finished vane is ejected.

The moulded vanes are inspected for angle accuracy, curvature, dimensions, mounting features, warpage, flash, and surface quality before assembly.

Mould Manufacturing Process

The Air Purifier Plastic Air Guide Vanes Mould is designed according to the vane profile, airflow angle, thickness, mounting arrangement, production quantity, and required mould life.

The tooling incorporates the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. Particular attention is given to the vane's thin and curved sections because these areas require uniform filling and cooling to maintain the intended airflow profile.

For vanes with pivot points, undercuts, or locking features, suitable mould inserts, slides, lifters, or core mechanisms can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for vane angle, thickness, curvature, mounting dimensions, pivot fitment, warpage, flash, surface finish, and airflow-guide assembly fitment before final production approval.

Raw Materials

The material for Air Purifier Plastic Air Guide Vanes should provide adequate rigidity and dimensional stability because the vane profile must remain consistent during continuous airflow and normal operating temperatures.

Depending on the application, PP, ABS, PC-ABS, PBT, or PA/Nylon can be considered. PP may be suitable for lightweight fixed vanes, while ABS and PC-ABS can provide good rigidity and surface quality. PBT or PA may be considered where greater mechanical strength, dimensional stability, or temperature resistance is required.

The final plastic grade should be selected according to the airflow velocity, operating temperature, vane thickness, vibration, mounting method, required rigidity, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic Air Guide Vanes focuses on accurate airflow geometry because changes in vane angle or curvature can alter airflow direction and distribution.

The finished vanes can be checked for overall length, width, thickness, vane angle, curvature, mounting-hole or pivot dimensions, spacing, locating features, and clearance from adjoining components according to the approved drawing.

The moulded components are also inspected for flash, short shots, sink marks, warpage, cracks, burrs, weld lines, flow marks, and surface defects.

Assembly testing can be performed using the actual airflow guide, fan assembly, outlet section, linkage, and air purifier cabinet to verify correct vane positioning and movement.

Where specified, the complete airflow system can undergo airflow, pressure-drop, directional-distribution, or noise testing to validate the vane design.

Production Capacity

Production capacity depends on the vane size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

Because individual air-guide vanes are generally small components, multi-cavity moulds can be considered for high-volume production where the required dimensional accuracy and tooling configuration permit it.

For example, an 8-cavity mould operating with a 20-second cycle has a theoretical output of approximately 1,440 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

Actual production capacity should be finalized according to the approved product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Air Guide Vanes Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing vane sample, or complete airflow-guide assembly.

Important specifications include vane length, width, thickness, angle, curvature, spacing, pivot or mounting arrangement, airflow direction, fan specifications, operating temperature, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

For adjustable vane systems, the buyer should also provide the linkage, actuator arrangement, pivot dimensions, and required angular movement so that the vane can be designed to operate correctly with the complete mechanism.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic airflow components used in air purifiers and other home appliances.

For the Air Purifier Plastic Air Guide Vanes, our service covers the complete process from product development and airflow-component design to mould design, precision mould manufacturing, injection moulding, dimensional inspection, assembly testing, and bulk OEM production.

The vanes can be developed according to the customer's actual airflow system, including specific vane angle, curvature, dimensions, mounting method, material grade, surface finish, and production quantity.

This integrated approach helps maintain consistency between the fan, airflow guide, vanes, outlet grille, mould, plastic material, and final air purifier airflow system.

Frequently Asked Questions (FAQ)

1. What are Air Purifier Plastic Air Guide Vanes?

Air Purifier Plastic Air Guide Vanes are injection-moulded plastic airflow components used to redirect and distribute air inside an air purifier according to the required airflow path.

2. Which plastic materials are suitable for Air Guide Vanes?

Depending on the application, PP, ABS, PC-ABS, PBT, and PA/Nylon can be considered. Material selection depends on rigidity, airflow conditions, temperature, vibration, and dimensional requirements.

3. Can the Air Guide Vanes be customized?

Yes. The vanes can be customized according to length, width, thickness, angle, curvature, spacing, mounting arrangement, pivot design, colour, and surface finish.

4. Can the vanes be adjustable?

Yes. Where the purifier requires directional airflow adjustment, the vane can be designed with a pivot interface and linkage connection for controlled angular movement.

5. Can Renovator manufacture both the Air Guide Vanes mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, vane-angle inspection, assembly testing, airflow-related checks where specified, and bulk production according to customer requirements.
