Product Overview

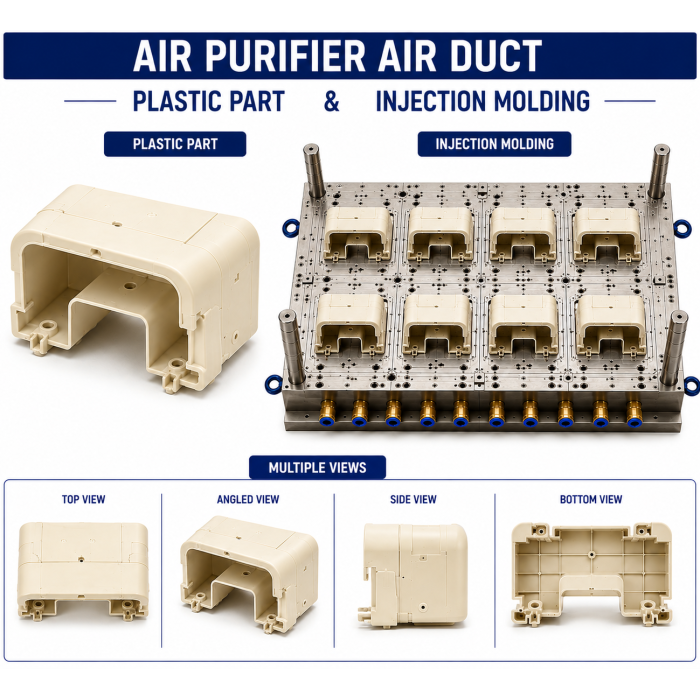

Air Purifier Plastic Air Duct is a precision injection-moulded airflow component used to create a defined passage for moving air between the fan, filter assembly, inlet section, outlet section, and other internal airflow components of an air purifier. Its main purpose is to guide air through the intended route while reducing unnecessary air leakage and helping maintain a controlled internal airflow path.

The air duct can be developed with specific length, width, height, cross-sectional profile, bend radius, wall thickness, inlet and outlet openings, sealing edges, mounting tabs, screw bosses, locating ribs, and joining features according to the air purifier's internal architecture.

Renovator Appliances Ltd provides complete Air Purifier Plastic Air Duct Mould and Moulding Services, including product development, CAD-based mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, assembly fitment testing, and bulk OEM production.

Key Features

The Air Purifier Plastic Air Duct provides a controlled channel between different sections of the purifier's airflow system. Its geometry can be designed to reduce unwanted gaps between the fan and filter housing or between the internal fan assembly and the air outlet.

The duct can incorporate smooth internal walls, curved bends, transition sections, sealing lips, mounting bosses, locating pins, clips, reinforcement ribs, and joining flanges according to the specific assembly. These features help the duct maintain its position while also creating a better interface with adjacent components.

The internal passage can be customized according to the required airflow volume and available installation space. The duct can also be manufactured as a single-piece structure or with separate mating sections depending on the air purifier's construction.

Industrial Applications

The Air Purifier Plastic Air Duct is used in internal airflow-management systems of air purification equipment.

Typical applications include:

• Domestic Air Purifiers

• Residential Air Purification Systems

• HEPA Air Purifiers

• Smart Air Purifiers

• Portable Air Purifiers

• Commercial Air Purifiers

• Room Air Cleaners

• Multi-Stage Air Purification Systems

• Air Quality Monitoring Appliances

• OEM Air Purification Equipment

The exact duct configuration depends on the fan type, filter arrangement, air inlet and outlet locations, internal cabinet layout, required airflow, and available assembly space.

Manufacturing Process

The Air Purifier Plastic Air Duct is manufactured through a controlled plastic injection moulding process.

First, the duct geometry is developed according to the required airflow route, fan location, filter dimensions, cabinet structure, joining interfaces, and mounting arrangement. Bend radii, wall thickness, sealing surfaces, ribs, bosses, and locating features are incorporated into the product design.

A suitable thermoplastic material is selected according to the required rigidity, dimensional stability, operating temperature, vibration conditions, and airflow application. The material is prepared according to its processing requirements and fed into the injection moulding machine.

The plastic is heated and injected into the precision mould cavity under controlled pressure and temperature. The mould forms the duct body, internal passage, inlet and outlet openings, bends, flanges, mounting features, and sealing interfaces.

After filling and packing, the component is cooled under controlled conditions to minimize shrinkage and warpage. The mould then opens and the finished air duct is ejected.

The moulded duct is inspected for internal passage dimensions, overall dimensions, wall thickness, mounting features, sealing interfaces, warpage, flash, and assembly fitment.

Mould Manufacturing Process

The Air Purifier Plastic Air Duct Mould is designed according to the duct's internal passage, external profile, bends, openings, wall thickness, mounting features, production quantity, and required mould life.

The mould incorporates the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. The internal core is particularly important because it determines the duct's airflow passage and cross-sectional dimensions.

For complex ducts containing bends, enclosed passages, undercuts, or joining features, suitable slides, lifters, removable cores, or mould inserts can be incorporated into the tooling.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is carried out using the selected plastic material.

Trial components are checked for air-passage dimensions, wall thickness, flange dimensions, mounting-hole position, sealing surfaces, warpage, flash, surface finish, and complete fitment with the fan, filter housing, and cabinet before production approval.

Raw Materials

The material for an Air Purifier Plastic Air Duct should provide adequate rigidity, dimensional stability, impact resistance, and resistance to the operating conditions inside the appliance.

Depending on the duct design, ABS, PP, HIPS, PC-ABS, or PBT can be considered. PP can be suitable for lightweight duct structures, while ABS and PC-ABS can provide good rigidity and dimensional stability. PBT may be considered where increased temperature performance and dimensional stability are required.

For ducts positioned close to heat-generating motor or electronic assemblies, an appropriate heat-resistant or flame-retardant plastic grade can be selected according to the customer's technical specification.

The final material should be selected according to the airflow path, operating temperature, vibration, required rigidity, duct dimensions, sealing requirements, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic Air Duct focuses on accurate airflow-passage geometry, proper joining interfaces, and resistance to air leakage.

The finished component can be checked for overall length, width, height, internal passage width and height, wall thickness, inlet and outlet dimensions, bend radius, flange dimensions, mounting-hole position, sealing-surface dimensions, and locating features according to the approved drawing.

The moulded duct is also inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, flow marks, and other surface defects.

Assembly testing can be performed using the actual fan assembly, filter housing, cabinet, inlet section, outlet section, and mating duct components to verify accurate fitment and clearance.

Where specified, the completed airflow system can also undergo air-leakage, airflow, or pressure-drop testing to evaluate the effectiveness of the duct assembly.

Production Capacity

Production capacity depends on the duct size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould complexity, and production efficiency.

For example, a single-cavity mould operating with a 35-second cycle has a theoretical output of approximately 103 pieces per hour before inspection, material handling, machine downtime, mould maintenance, and other production losses.

For higher-volume requirements, multi-cavity tooling may be considered where the duct size, mould dimensions, machine capacity, and moulding process permit it.

Final production capacity should be established according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Air Duct Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing duct sample, or complete air purifier internal assembly.

Important specifications include duct length, width, height, internal passage dimensions, inlet and outlet sizes, bend radius, wall thickness, fan dimensions, filter-housing interface, cabinet mounting points, sealing method, operating temperature, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual fan, filter housing, cabinet, and mating airflow components is recommended because the duct must match the complete internal airflow path.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic airflow, filtration, and enclosure components used in air purifiers and other home appliances.

For the Air Purifier Plastic Air Duct, our service covers the complete process from product development and airflow-component design to mould design, precision mould manufacturing, injection moulding, dimensional inspection, assembly fitment testing, air-leakage checks where specified, and bulk OEM production.

The duct can be developed according to the customer's actual purifier assembly, including specific air-passage dimensions, bends, mounting features, sealing interfaces, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the fan, filter housing, air duct, cabinet, mould, plastic material, and final air purifier airflow system.

Frequently Asked Questions (FAQ)

1. What is an Air Purifier Plastic Air Duct?

An Air Purifier Plastic Air Duct is an injection-moulded internal passage that guides air between the fan, filter, inlet, and outlet sections of an air purifier.

2. Which plastic materials are suitable for an Air Duct?

Depending on the application, ABS, PP, HIPS, PC-ABS, or PBT can be considered. Material selection depends on rigidity, dimensional stability, temperature, vibration, sealing requirements, and customer specifications.

3. Can the Air Duct be customized?

Yes. The duct can be customized according to length, width, height, internal passage dimensions, inlet and outlet size, bend radius, mounting features, sealing surfaces, wall thickness, colour, and surface finish.

4. Does the Air Duct affect airflow performance?

Yes. The cross-sectional area, bends, transitions, internal surface geometry, and leakage at joints can affect airflow resistance and distribution. The duct geometry should therefore be developed according to the purifier's airflow requirements.

5. Can Renovator manufacture both the Air Duct mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, assembly fitment testing, air-leakage or airflow-related checks where specified, and bulk production according to customer requirements.
