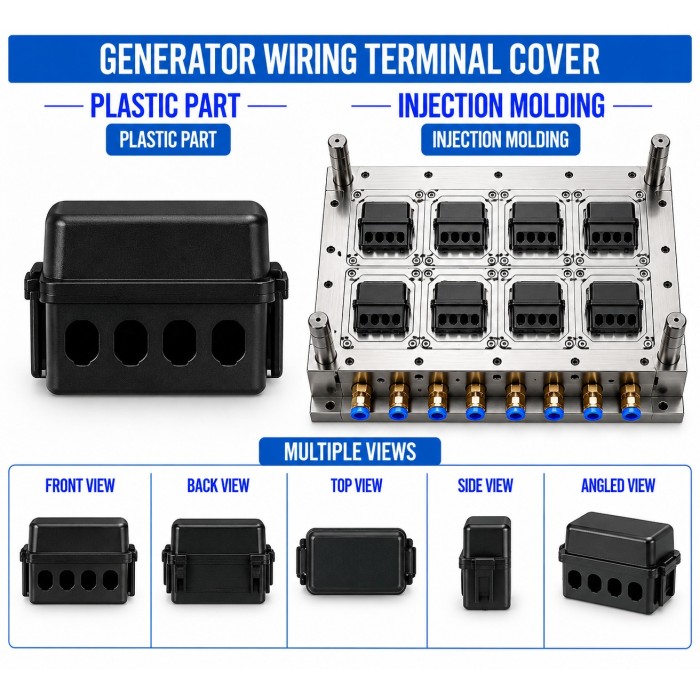

Generator Plastic Wiring Terminal Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd provides Generator Plastic Wiring Terminal Cover Mould and Moulding Service for manufacturing protective plastic covers used over wiring terminals and electrical connection points in generator assemblies. The cover helps protect exposed terminals, cable connections, and related electrical interfaces from accidental contact, dust, moisture, and mechanical interference while maintaining the required electrical clearance and assembly arrangement.

The mould is developed according to the terminal block or connection assembly dimensions, cable entry positions, mounting arrangement, internal clearances, fastening method, and available installation space. Accurate mould design helps maintain consistent wall thickness, reliable fitment, proper insulation coverage, and repeatable production quality.

Key Features

• Application-specific mould design for generator wiring terminal covers

• Accurate fitment over the specified terminal or connection assembly

• Provision for cable entry and exit clearances

• Proper electrical creepage and clearance considerations according to the application

• Screw bosses, clips, snap-fits, or retaining features as required

• Reinforcing ribs for improved structural stability

• Controlled wall thickness for consistent moulding

• Rounded and finished edges around cable and terminal access areas

• Protection against accidental contact with covered electrical terminals

• Suitable for OEM and customized generator electrical assemblies

Industrial Applications

Manufacturing Process

1. Product Design & Development

The wiring terminal cover is developed according to the terminal assembly dimensions, cable positions, mounting arrangement, required coverage, electrical clearances, and surrounding component geometry. Cable entry openings, retaining clips, screw bosses, locating features, and other functional details are incorporated according to the generator's electrical assembly.

2. Plastic Mould Design

The injection mould is designed around the terminal cover geometry with appropriate parting lines, draft angles, gate locations, ejector positions, cooling channels, and cavity details. Cable openings, internal clearance zones, retaining features, ribs, and mounting points are carefully positioned to support accurate moulding and easy demoulding.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on the selected plastic, production quantity, surface-finish requirements, and expected tooling life. Precision machining is carried out for the cavity, core, cable openings, bosses, clips, ribs, and other detailed features.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Melt temperature, injection pressure, filling speed, holding pressure, cooling time, and cycle parameters are adjusted according to the selected material and terminal-cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates or runners are removed as required and the cover is prepared for assembly. Cable openings, mounting features, retaining clips, internal clearances, and terminal coverage areas are inspected to ensure clean and accurate formation.

6. Quality Inspection

Finished terminal covers are inspected for overall dimensions, terminal fitment, cable opening dimensions, mounting positions, wall thickness, electrical clearance-related geometry, warpage, surface condition, and compatibility with the associated wiring assembly.

Raw Materials

The final plastic grade should be selected according to operating temperature, electrical requirements, voltage, flame-resistance requirements, vibration, moisture exposure, and applicable safety specifications.

Quality Control

Renovator Appliances Ltd checks moulded wiring terminal covers for critical dimensional and functional characteristics, including:

• Overall cover dimensions

• Terminal-block or connection-area fitment

• Cable entry and exit opening dimensions

• Mounting-hole and boss positions

• Snap-fit and retaining-feature dimensions

• Internal clearance around terminals and conductors

• Wall thickness consistency

• Rib and reinforcement geometry

• Cover alignment and retention

• Warpage and deformation

• Surface finish and edge condition

• Flash, sink marks, short shots, and other moulding defects

• Compatibility with the complete wiring assembly

Electrical insulation and functional verification can be performed according to the customer's applicable specifications and testing requirements.

Buyer Guide

Before ordering a Generator Plastic Wiring Terminal Cover Mould and Moulding Service, buyers should provide a 3D CAD model, engineering drawing, sample part, or accurate dimensional specifications wherever available. Important requirements include:

• Terminal block or electrical connection dimensions

• Cable diameter and entry/exit locations

• Required terminal coverage

• Mounting arrangement

• Retention method

• Required electrical clearances

• Plastic material and flame-retardant grade, where applicable

• Wall thickness requirements

• Operating temperature

• Surface finish and colour

• Expected production quantity

Accurate electrical assembly information is important for developing the cover with appropriate clearances and reliable fitment.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of generator electrical protection components with controlled processing and repeatable dimensional quality.

In-House Mould Manufacturing

In-house tooling capabilities allow better control over cavity accuracy, cable openings, retaining features, cooling, ejection, and detailed mould geometry.

OEM & ODM Manufacturing

We support customized wiring terminal covers based on customer drawings, CAD models, samples, electrical assembly requirements, and generator specifications.

Quality Assurance

Dimensional, visual, material, fitment, and application-specific checks help maintain consistent quality throughout production.

Cost-Effective Manufacturing

Optimized mould design, suitable cavity configuration, material selection, and controlled injection moulding processes support economical production for development and commercial quantities.

Frequently Asked Questions

1. What is a Generator Plastic Wiring Terminal Cover?

It is a moulded plastic protective component designed to cover specified wiring terminals or electrical connection points in a generator assembly and help prevent accidental contact and environmental exposure.

2. Can cable entry openings be customized?

Yes. Cable entry and exit openings can be designed according to the cable diameter, routing direction, connector arrangement, and available installation space.

3. Can the cover include snap-fits or screw mounting?

Yes. Snap-fits, retaining clips, screw bosses, mounting holes, locating features, and other fastening arrangements can be incorporated according to the terminal assembly.

4. Which plastics are suitable for a wiring terminal cover?

PP, ABS, PA/Nylon, PC+ABS, engineering-grade plastics, and suitable flame-retardant materials may be considered depending on electrical, temperature, mechanical, and safety requirements.

5. Can the terminal cover be customized for a specific generator model?

Yes. The mould and moulded component can be customized according to the terminal assembly, cable layout, electrical clearances, mounting arrangement, generator model, and production specifications.
