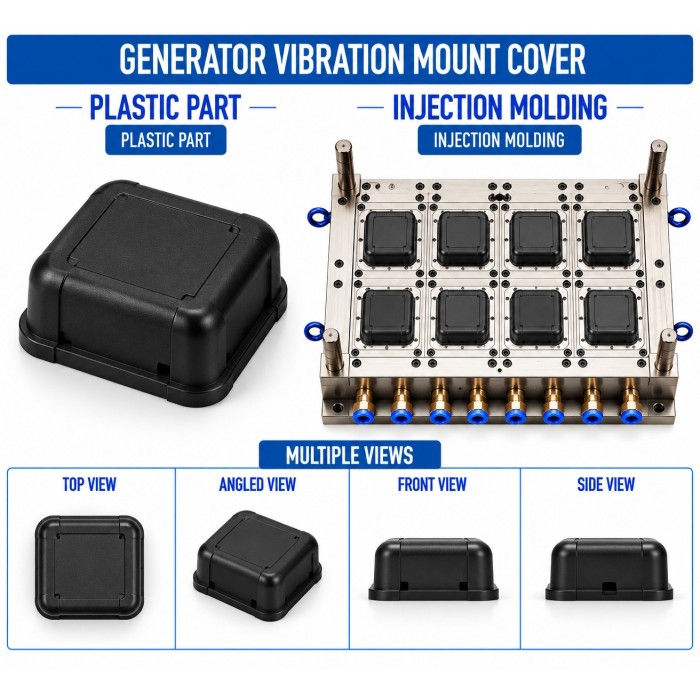

Generator Plastic Vibration Mount Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Vibration Mount Cover Mould and Moulding Service for protective covers used around generator vibration mounting assemblies. The cover is designed to shield the exposed portion of the vibration mount and its surrounding mounting area from dust, moisture, debris, accidental contact, and mechanical interference while maintaining the required movement clearance of the mount.

The mould is developed according to the vibration mount dimensions, mounting-stud or bolt position, cover height, internal clearance, mounting arrangement, wall thickness, and generator frame configuration. The cover is designed to protect the mounting assembly without restricting the compression, deflection, or movement required for effective vibration isolation.

Key Features

• Application-specific vibration mount cover geometry

• Accurate clearance around rubber vibration mounts

• Proper clearance for mounting studs, bolts, and fasteners

• Protective coverage for exposed mounting components

• Integrated clips, locating features, or fastening points

• Controlled wall thickness for dimensional stability

• Reinforcing ribs where additional rigidity is required

• Smooth edges around moving and mounting areas

• Consistent fitment with generator frame assemblies

• Suitable for customized OEM generator mounting systems

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Generator Plastic Vibration Mount Cover is designed according to the vibration mount diameter, height, mounting-stud or bolt position, frame geometry, required movement range, and installation space. Adequate internal clearance is maintained so the cover does not interfere with the rubber mount during compression, deflection, or normal generator vibration.

2. Plastic Mould Design

The mould is designed to accurately reproduce the cover profile, mounting openings, retaining features, locating ribs, clips, and internal clearances. Particular attention is given to the areas surrounding the vibration mount and fasteners to prevent interference during generator operation.

Draft angles, gate positioning, cooling channels, and ejection arrangements are optimized to achieve stable moulding and minimize warpage.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 according to production volume, plastic material, required surface finish, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are performed to achieve the required cavity and core accuracy.

4. Injection Moulding

The selected plastic material is melted and injected into the mould cavity under controlled processing conditions. Injection pressure, filling speed, holding pressure, and cooling time are adjusted according to the material and cover geometry to maintain consistent dimensions and mounting clearances.

5. Finishing & Assembly Preparation

After moulding, gates and flash are removed and edges are finished as required. The internal mount clearance, fastening openings, retaining features, and frame interface are checked before the cover is prepared for installation.

6. Quality Inspection

Finished vibration mount covers are inspected for overall dimensions, mount clearance, mounting-hole position, retaining features, wall thickness, surface quality, and compatibility with the generator frame and vibration-isolation assembly.

Raw Materials

The final material should be selected according to vibration exposure, impact requirements, temperature, moisture, chemical exposure, installation conditions, and required service life.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Vibration Mount Cover for:

• Overall dimensions and cover profile

• Vibration mount diameter and height clearance

• Mounting-stud or bolt clearance

• Internal movement clearance

• Mounting-hole and boss position

• Clip and retaining-feature accuracy

• Wall thickness consistency

• Rib and reinforcement geometry

• Generator frame fitment

• Alignment with the vibration mounting assembly

• Warpage and dimensional deformation

• Flash, sink marks, short shots, and other moulding defects

• Surface finish and edge quality

• Clearance during mount movement where required

Buyer Guide

Before ordering a Generator Plastic Vibration Mount Cover mould and moulding service, buyers should provide the vibration mount dimensions, mounting-stud or bolt size, required movement clearance, generator frame geometry, fastening method, material preference, colour, operating environment, and production quantity.

The cover should be designed so that it does not restrict the normal compression, lateral movement, or deflection of the vibration mount. Adequate clearance should also be maintained around mounting hardware and adjacent generator components to prevent contact during operation.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support accurate cover dimensions, mounting clearances, retaining features, and repeatable production quality.

In-House Mould Manufacturing

Mould development can be coordinated with the vibration mount dimensions, generator frame, mounting hardware, and required movement clearance.

OEM & ODM Manufacturing

Customized vibration mount covers can be manufactured according to OEM drawings, samples, mount dimensions, or generator-specific requirements.

Quality Assurance

Dimensional inspection, mount-clearance checks, visual inspection, and assembly-fit verification help maintain reliable component quality.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support helps streamline customized vibration mount cover production for prototype and volume requirements.

Frequently Asked Questions

1. What is a Generator Plastic Vibration Mount Cover used for?

It provides protective coverage around a generator vibration mounting assembly while maintaining sufficient clearance for the mount's intended movement and vibration-isolation function.

2. Does the cover affect the vibration mount's movement?

It should not. The cover is designed with appropriate internal clearance so the rubber mount can compress and deflect as required without contacting the plastic cover.

3. Can the vibration mount cover be customized?

Yes. Dimensions, mounting openings, internal clearance, retaining features, profile, material, colour, and frame interface can be customized according to the generator design.

4. Which plastic materials can be used for a vibration mount cover?

PP, ABS, Nylon/PA, PC+ABS, and HDPE may be considered depending on impact, vibration, temperature, moisture, chemical exposure, and dimensional requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and the plastic vibration mount cover?

Yes. The service can include mould design and manufacturing followed by injection moulding of the Generator Plastic Vibration Mount Cover according to the required specifications.
