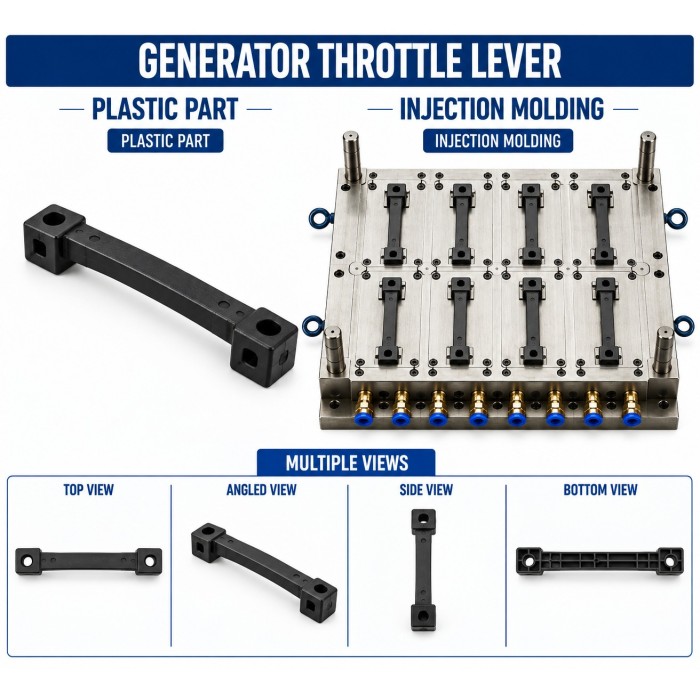

Generator Plastic Throttle Lever Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Throttle Lever Mould and Moulding Service for generator engine speed and throttle-control mechanisms. The throttle lever provides a manual or linkage-operated interface for controlling the throttle position according to the generator's operating system.

The component is moulded with an application-specific lever profile, pivot or mounting interface, linkage connection point, and controlled movement clearance. The mould is designed to maintain accurate lever geometry and consistent positioning so that the throttle mechanism can operate smoothly without excessive play or interference.

Key Features

• Application-specific lever for generator throttle-control mechanisms

• Accurate pivot or mounting-hole geometry

• Precise linkage or cable connection interface

• Controlled lever travel and movement clearance

• Reinforced pivot and load-bearing areas where required

• Controlled wall thickness for dimensional stability

• Smooth lever edges for safe manual operation

• Anti-slip or textured grip area where required

• Consistent fitment with throttle shafts, rods, cables, or linkages

• Suitable material options for mechanical strength and environmental exposure

• Repeatable moulded dimensions for OEM production

• Suitable for high-volume injection moulding applications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The throttle lever is developed according to the required pivot diameter, lever length, travel angle, linkage or cable connection, grip profile, mounting arrangement, and available installation space. The design also considers the force applied to the lever and the required movement range of the connected throttle mechanism.

2. Plastic Mould Design

The mould is designed around the pivot hole or shaft interface, linkage connection feature, lever profile, reinforcing ribs, grip texture, draft angles, and required clearances. Gate placement and ejector locations are positioned to minimize distortion around the pivot and connection areas, where dimensional accuracy is important for proper throttle operation.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 depending on production volume, material characteristics, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are carried out to achieve accurate cavity geometry.

4. Injection Moulding

The selected thermoplastic material is processed under controlled injection temperature, pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to achieve consistent lever dimensions while minimizing warpage, sink marks, flash, short shots, and dimensional variation around the pivot and linkage interfaces.

5. Finishing & Assembly Preparation

After moulding, gate remnants and flash are removed where required. The pivot opening, linkage connection point, and grip surfaces are inspected for proper finishing before the lever is prepared for assembly with the generator throttle mechanism.

6. Quality Inspection

Production parts are checked for overall dimensions, pivot-hole diameter, linkage interface geometry, lever angle, movement clearance, wall thickness, surface finish, and fitment with the corresponding throttle assembly. Functional movement and connection retention can also be validated according to the customer's requirements.

Raw Materials

Material selection should be based on actual lever load, pivot friction, operating temperature, vibration, chemical exposure, and expected service life.

Quality Control

Renovator Appliances Ltd applies component-specific inspection controls for Generator Plastic Throttle Lever Mould and Moulding Service, including:

• Overall lever dimensions and profile inspection

• Pivot-hole diameter and alignment verification

• Linkage or cable connection geometry checking

• Lever travel and angular-position verification

• Wall-thickness consistency inspection

• Rib and reinforcement inspection

• Flash and short-shot inspection

• Warpage and distortion checking

• Surface finish and grip-texture inspection

• Fitment testing with the throttle mechanism

• Movement and retention validation where specified

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Throttle Lever Mould and Moulding Service, buyers should provide the throttle mechanism drawing or sample, pivot or shaft dimensions, lever travel requirement, linkage or cable connection details, required operating force, material preference, colour, surface finish, production quantity, and generator assembly information.

The lever should be designed so that its pivot and connection points can withstand the expected operating forces without excessive deformation or looseness. Clearance around adjacent engine-control components should also be verified to prevent restricted movement.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent lever dimensions and repeatable production quality.

In-House Mould Manufacturing

Mould development is coordinated with the pivot, linkage, movement, and mechanical requirements of the throttle lever.

OEM & ODM Manufacturing

Throttle-control components can be manufactured according to customer drawings, CAD models, samples, and generator-specific requirements.

Quality Assurance

Dimensional, visual, material, assembly, and functional movement inspections help maintain production consistency.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to component complexity, production volume, material selection, and required mould life.

Frequently Asked Questions

1. What is a Generator Plastic Throttle Lever used for?

It provides a control interface or linkage connection for adjusting the throttle position of a compatible generator engine.

2. What plastic materials are suitable for a throttle lever?

Depending on the application, PP, ABS, nylon, glass-filled nylon, POM, or other engineering-grade plastics may be considered based on load, friction, temperature, vibration, and durability requirements.

3. Can the throttle lever be manufactured according to an existing sample?

Yes. The mould can be developed from customer drawings, CAD data, technical specifications, or a physical sample after dimensional and functional evaluation.

4. How is the pivot area designed?

The pivot opening, shaft interface, surrounding wall thickness, and reinforcement are designed according to the required movement, load, fitment, and operating conditions of the throttle mechanism.

5. Can Generator Plastic Throttle Lever be produced in bulk?

Yes. The component can be manufactured for OEM and bulk production, with mould cavity configuration and injection parameters selected according to the required production volume and component design.
