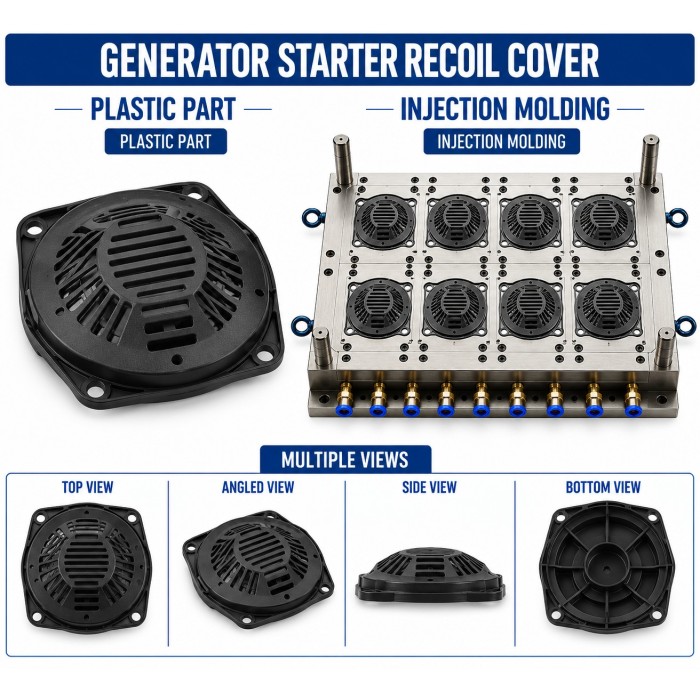

Generator Plastic Starter Recoil Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Starter Recoil Cover Mould and Moulding Service for generator manual starting assemblies. The starter recoil cover is designed to protect the recoil starter mechanism from dust, accidental contact, and external impact while maintaining the required clearance for the moving starter components and recoil rope.

The mould is developed according to the recoil starter assembly profile, mounting arrangement, pulley clearance, rope outlet position, wall thickness, and generator installation space. Accurate moulding helps maintain consistent fitment with the starter assembly and surrounding generator components.

Key Features

• Application-specific cover for generator recoil starter assemblies

• Accurate profile matching with the recoil starter mechanism

• Internal clearance for recoil pulley and moving components

• Precisely positioned mounting holes, clips, or fastening features

• Controlled wall thickness for dimensional stability

• Reinforcing ribs around mounting and fastening areas where required

• Provision for recoil rope outlet and movement clearance

• Protection against dust, debris, and accidental external contact

• Smooth moulded surfaces and controlled edge finishing

• Consistent fitment with adjoining generator components

• Material options selected according to impact, temperature, and vibration requirements

• Suitable for OEM and bulk injection moulding production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cover is developed according to the recoil starter dimensions, mounting locations, pulley profile, rope outlet position, surrounding engine components, and available installation space. Internal clearance is provided around moving starter components so that the cover does not interfere with recoil operation.

2. Plastic Mould Design

The mould is designed around the cover profile, mounting bosses, locating features, clips, rope opening, reinforcement ribs, draft angles, and required surface finish. Gate placement, parting-line location, ejector positions, and cooling channels are optimized to minimize warpage and maintain dimensional stability across the cover.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 based on production volume, material characteristics, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are used to achieve the required cavity accuracy.

4. Injection Moulding

The selected thermoplastic is injection moulded under controlled temperature, injection pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to reduce sink marks, short shots, flash, warpage, and dimensional variation around mounting and clearance features.

5. Finishing & Assembly Preparation

After moulding, the cover is inspected for flash, gate remnants, sharp edges, sink marks, and surface defects. Required trimming and finishing are completed before the component is prepared for installation on the recoil starter assembly.

6. Quality Inspection

Production parts are inspected for overall dimensions, mounting-hole locations, boss geometry, recoil pulley clearance, rope outlet alignment, wall thickness, surface finish, and fitment with the corresponding starter assembly.

Raw Materials

Material selection should be finalized according to actual operating temperature, vibration, impact exposure, environmental conditions, and generator safety requirements.

Quality Control

Renovator Appliances Ltd applies component-specific inspection controls for Generator Plastic Starter Recoil Cover Mould and Moulding Service, including:

• Overall cover dimensions and profile inspection

• Mounting-hole and fastening-feature verification

• Recoil pulley clearance checking

• Starter rope outlet alignment inspection

• Boss and rib dimensional inspection

• Wall-thickness consistency checking

• Warpage and distortion inspection

• Flash and moulding-defect inspection

• Surface-finish inspection

• Fitment testing with the recoil starter assembly

• Fastener engagement and retention verification

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Starter Recoil Cover Mould and Moulding Service, buyers should provide the starter recoil assembly drawing or sample, cover dimensions, mounting-hole pattern, recoil pulley dimensions, rope outlet position, fastening method, required material, colour, surface finish, annual production quantity, and generator assembly details.

The mould design should account for moving-part clearance, mounting access, surrounding engine components, expected vibration, operating temperature, and required mould life. For larger production volumes, multi-cavity tooling can be evaluated according to component size, cycle time, and production requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent dimensions, stable production cycles, and repeatable starter-cover quality.

In-House Mould Manufacturing

Mould development and manufacturing are coordinated with the recoil starter geometry, mounting arrangement, and required clearances.

OEM & ODM Manufacturing

The component can be developed according to customer drawings, CAD models, physical samples, and generator-specific technical requirements.

Quality Assurance

Dimensional, visual, material, fitment, and functional clearance checks help maintain consistent production quality.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to component complexity, required volume, material selection, and expected mould life.

Frequently Asked Questions

1. What is a Generator Plastic Starter Recoil Cover used for?

It protects and encloses the recoil starter mechanism while maintaining the necessary clearance for the pulley, rope, and other moving components.

2. What plastic materials can be used for this starter recoil cover?

PP, ABS, HIPS, engineering-grade plastics, glass-filled nylon, and flame-retardant plastics may be considered depending on the required mechanical, thermal, and safety performance.

3. Can the cover be manufactured according to an existing starter assembly?

Yes. The mould can be developed using customer drawings, CAD data, technical specifications, or a physical sample after dimensional and engineering evaluation.

4. How is clearance maintained around the recoil starter mechanism?

The mould design incorporates controlled internal clearance around the recoil pulley, rope path, and other moving components to prevent interference during starter operation.

5. Can this starter recoil cover be manufactured in bulk?

Yes. The moulding process can be planned for OEM and bulk production, with cavity configuration selected according to required production volume, cycle time, component geometry, and tooling requirements.
