Product Overview

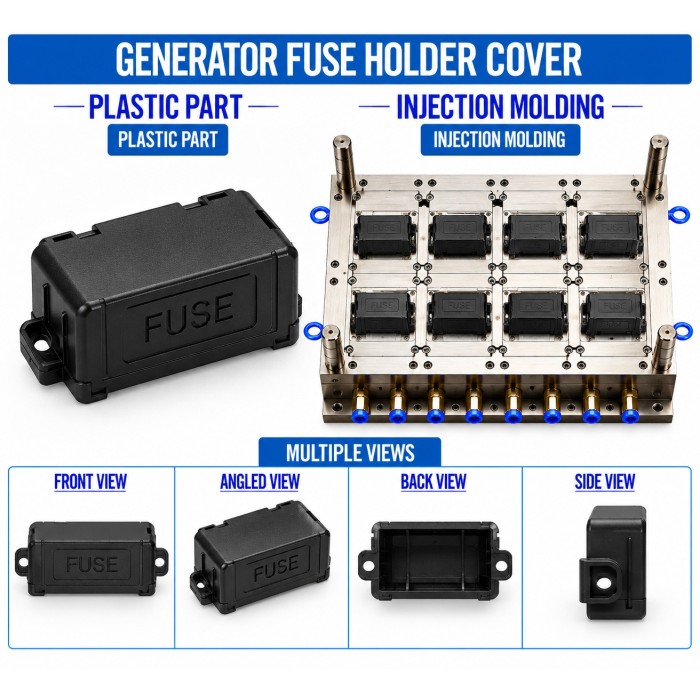

Renovator Appliances Ltd provides Generator Plastic Fuse Holder Cover Mould and Moulding Service for manufacturing protective plastic covers used over fuse holder assemblies in generator electrical systems. The cover helps protect the fuse holder and fuse connections from accidental contact, dust, moisture, and mechanical interference while maintaining suitable clearance around electrical terminals and wiring.

The mould is developed according to the fuse holder dimensions, fuse access requirements, terminal positions, cable routing, mounting arrangement, and available installation space. Accurate mould design supports reliable fitment, consistent wall thickness, proper retention, and repeatable production quality.

Key Features

• Application-specific mould design for generator fuse holder covers

• Accurate fitment around the fuse holder assembly

• Suitable clearance for fuse terminals and connected wiring

• Access provision for fuse inspection or replacement where required

• Screw bosses, clips, snap-fits, or retaining features as specified

• Locating ribs and reinforcement features for dimensional stability

• Controlled wall thickness for consistent moulding

• Smooth edges around electrical access areas

• Protective coverage against accidental contact with fuse connections

• Suitable for OEM and customized generator electrical assemblies

Industrial Applications

Manufacturing Process

1. Product Design & Development

The fuse holder cover is developed according to the holder dimensions, fuse position, terminal arrangement, cable routing, mounting points, and required access for inspection or replacement. Retaining clips, snap-fits, screw bosses, locating features, and other functional details are incorporated according to the generator electrical assembly.

2. Plastic Mould Design

The injection mould is engineered around the cover geometry with suitable parting lines, draft angles, gate locations, ejector positions, cooling channels, and cavity details. Internal clearances around fuse terminals and conductors are considered to achieve reliable fitment and appropriate protective coverage.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on the selected plastic, production volume, surface-finish requirements, and expected tooling life. Precision machining is performed for the cavity, core, retaining features, openings, bosses, ribs, and other detailed areas.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Melt temperature, injection pressure, filling speed, holding pressure, cooling time, and cycle parameters are adjusted according to the material and fuse holder cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates or runners are removed as required and the cover is prepared for assembly. Fuse access areas, terminal clearances, cable openings, mounting features, clips, and cover edges are checked for clean and accurate formation.

6. Quality Inspection

Finished fuse holder covers are inspected for overall dimensions, holder fitment, fuse and terminal clearances, mounting positions, access features, wall thickness, warpage, surface condition, and compatibility with the generator wiring assembly.

Raw Materials

The final plastic grade should be selected according to operating temperature, electrical requirements, vibration, moisture exposure, flame-resistance requirements, and applicable safety specifications.

Quality Control

Renovator Appliances Ltd checks moulded fuse holder covers for critical dimensional and functional characteristics, including:

• Overall cover dimensions

• Fuse holder fitment

• Fuse and terminal clearances

• Cable entry and routing openings

• Mounting-hole and boss positions

• Snap-fit and retaining-feature dimensions

• Fuse inspection or access opening dimensions

• Wall thickness consistency

• Rib and reinforcement geometry

• Cover retention and alignment

• Warpage and deformation

• Surface finish and edge condition

• Flash, sink marks, short shots, and other moulding defects

• Compatibility with the complete generator electrical assembly

Application-specific insulation, fitment, and functional checks can be performed according to customer requirements.

Buyer Guide

Before ordering a Generator Plastic Fuse Holder Cover Mould and Moulding Service, buyers should provide a 3D CAD model, engineering drawing, sample part, or accurate dimensional specifications wherever available. Important requirements include:

• Fuse holder dimensions

• Fuse size and position

• Terminal and connector locations

• Cable diameter and routing

• Required fuse access

• Mounting arrangement

• Retention method

• Required electrical clearances

• Plastic material and grade

• Flame-retardant requirements, where applicable

• Operating temperature

• Expected production quantity

Accurate fuse holder and wiring information helps ensure that the cover provides the required protection while fitting correctly within the generator assembly.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of generator electrical protection components with controlled processing and repeatable dimensional quality.

In-House Mould Manufacturing

In-house tooling capabilities allow better control over cavity accuracy, retaining features, cooling, ejection, mounting details, and component-specific mould geometry.

OEM & ODM Manufacturing

We support customized fuse holder covers based on customer drawings, CAD models, samples, electrical assembly requirements, and generator specifications.

Quality Assurance

Dimensional, visual, material, fitment, and application-specific checks help maintain consistent quality throughout production.

Cost-Effective Manufacturing

Optimized mould design, suitable cavity configuration, material selection, and controlled injection moulding processes support economical production for development and commercial quantities.

Frequently Asked Questions

1. What is a Generator Plastic Fuse Holder Cover?

It is a moulded plastic protective component designed to cover a fuse holder assembly and help protect fuse terminals and electrical connections from accidental contact and environmental exposure.

2. Can the cover allow access to the fuse?

Yes. An inspection or fuse-access opening can be incorporated when required for fuse checking or replacement without removing the complete cover.

3. Can snap-fits or screw mounting be included?

Yes. Snap-fits, retaining clips, screw bosses, mounting holes, and locating features can be integrated according to the fuse holder and generator assembly.

4. Which plastics can be used for a fuse holder cover?

PP, ABS, PA/Nylon, PC+ABS, engineering-grade plastics, and suitable flame-retardant materials may be considered based on electrical, temperature, mechanical, and safety requirements.

5. Can the fuse holder cover be customized for a specific generator?

Yes. The mould and moulded component can be customized according to the fuse holder dimensions, fuse configuration, wiring layout, mounting arrangement, electrical clearances, generator model, and production requirements.
