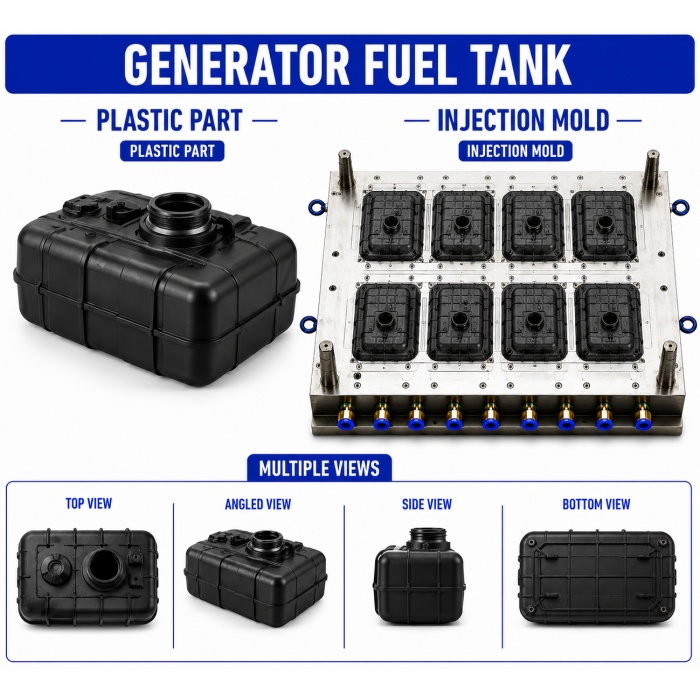

Generator Plastic Fuel Tank Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision plastic injection moulds and moulded components for the Generator Plastic Fuel Tank used for storing and supplying fuel to generator engines. The tank is designed to provide a stable fuel-storage chamber with integrated interfaces for fuel filling, fuel outlet, breather connections, mounting, and other fuel-system components.

The mould is developed according to the required tank capacity, overall dimensions, internal volume, wall thickness, fuel outlet position, filler-neck arrangement, fuel-tank cap interface, breather connection, mounting points, internal clearances, and available space within the generator frame.

For a plastic fuel tank, material selection and structural design are particularly important because the tank must withstand fuel exposure, temperature variations, vibration, impact, and long-term service conditions. Depending on the application and manufacturing method, the final tank design and material should be validated for the intended fuel type and applicable safety requirements.

Key Features

• Precision plastic moulding solution for Generator Plastic Fuel Tank

• Customized tank geometry according to generator frame dimensions

• Defined fuel-storage capacity and internal volume

• Integrated fuel filler-neck interface

• Accurate fuel outlet and fuel-line connection provisions

• Breather or vent connection provisions

• Fuel tank cap mounting interface

• Reinforced mounting points for secure installation

• Controlled wall thickness for structural consistency

• Rounded corners to reduce stress concentration

• Internal clearance for fuel movement and component integration

• Suitable provisions for fuel-level sensing components where required

• Impact-resistant design options with suitable material selection

• Fuel-compatible material selection

• OEM and ODM customization

• Suitable for prototype and production development

Industrial Applications

Manufacturing Process

1. Product Design & Development

The fuel tank is designed according to the required capacity, generator frame dimensions, fuel type, filler position, outlet location, breather connection, mounting arrangement, and surrounding component clearances. CAD development defines the tank profile, mounting structures, connection interfaces, wall thickness, and reinforcement features.

2. Plastic Mould Design

The mould is engineered around the tank geometry and selected manufacturing process. Core and cavity arrangements, parting lines, material flow, cooling, venting, ejection, and connection features are developed to achieve the required dimensional accuracy and structural consistency.

For larger or hollow tank designs, the appropriate plastic manufacturing process and tooling configuration are selected according to the required tank geometry, production volume, material, and performance requirements.

3. Mould Manufacturing

The mould is precision-machined using suitable mould steel such as P20, H13, or S136 Steel according to the production requirement, tooling configuration, material characteristics, surface-finish expectations, and required mould life. Critical mounting and fuel-connection features are inspected during mould assembly.

4. Plastic Moulding

The selected fuel-compatible plastic material is processed under controlled manufacturing conditions to form the required tank structure. Processing parameters are controlled to achieve consistent wall thickness, dimensional stability, connection geometry, and structural integrity.

5. Finishing & Assembly Preparation

After moulding, the tank is trimmed and inspected for flash, moulding marks, incomplete features, deformation, and other defects. Required openings and connection interfaces are prepared according to the approved design, followed by installation preparation for the fuel cap, fuel line, breather, fuel-level components, and mounting hardware.

6. Quality Inspection

Finished fuel tanks are checked for overall dimensions, tank capacity, wall thickness, mounting positions, filler-neck geometry, fuel outlet location, breather interface, cap fitment, deformation, surface quality, and compatibility with the generator assembly.

Raw Materials

Material selection must be validated for the actual fuel type, permeation requirements, operating temperature, vibration, impact conditions, environmental exposure, and applicable regulatory or customer requirements. A general-purpose plastic should not be assumed suitable for fuel storage.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Fuel Tank for:

• Overall tank dimensions

• Designed fuel capacity

• Wall thickness consistency

• Tank geometry and dimensional stability

• Filler-neck dimensions

• Fuel cap interface

• Fuel outlet position and dimensions

• Fuel-line connection geometry

• Breather connection

• Mounting-hole position

• Mounting-boss strength and alignment

• Fuel-level sensor interface where applicable

• Internal clearance

• Flash and moulding defects

• Sink marks and deformation

• Warpage

• Surface finish

• Component fitment

• Assembly compatibility

• Material conformity

• Batch-to-batch dimensional consistency

Where specified, additional leak, pressure, dimensional, fuel-compatibility, vibration, or durability validation can be incorporated according to the customer's requirements and applicable standards.

Buyer Guide

When ordering a Generator Plastic Fuel Tank Mould and Moulding Service, buyers should provide the required fuel capacity, fuel type, tank dimensions, generator-frame dimensions, filler-neck size, fuel outlet diameter and position, breather connection, cap interface, mounting locations, fuel-level sensor requirements, operating temperature, vibration conditions, material requirements, colour, and production quantity.

A CAD drawing, 3D model, existing fuel tank, generator frame, fuel cap, fuel-line assembly, or physical sample can be used as the basis for development. The tank should be designed together with the generator frame and complete fuel system to ensure adequate clearance, mounting stability, fuel-line routing, breather connection, and service access.

For production planning, buyers should also specify dimensional tolerances, required mould life, tooling configuration, prototype requirements, expected production volume, fuel compatibility requirements, and OEM/ODM specifications.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd uses controlled plastic moulding processes to manufacture fuel-tank components with consistent dimensions, reliable connection interfaces, and repeatable production quality.

In-House Mould Manufacturing

In-house mould manufacturing provides control over tank geometry, mounting features, connection interfaces, tooling accuracy, cooling, and other critical mould parameters.

OEM & ODM Manufacturing

Custom Generator Plastic Fuel Tank designs can be developed according to customer drawings, samples, generator frames, fuel-system assemblies, or capacity requirements.

Quality Assurance

Inspection procedures focus on tank dimensions, capacity, wall thickness, connection geometry, mounting accuracy, moulding quality, and compatibility with the complete generator assembly.

Cost-Effective Manufacturing

Optimized tooling, suitable manufacturing-process selection, material planning, and controlled production processes support economical manufacturing for prototype and production requirements.

Frequently Asked Questions

1. What is a Generator Plastic Fuel Tank?

It is a plastic fuel-storage component designed to store and supply fuel to the engine of a generator while providing interfaces for filling, fuel outlet, venting, and mounting.

2. Can the fuel tank be customized according to a generator frame?

Yes. The tank can be designed according to the available frame space, required fuel capacity, mounting locations, component clearances, and fuel-system layout.

3. Which plastic is suitable for a generator fuel tank?

Fuel-grade HDPE is commonly considered for suitable applications, while other fuel-compatible polymers may be evaluated according to the fuel type, temperature, permeation requirements, impact conditions, and applicable specifications.

4. Can the fuel tank include filler, outlet, and breather connections?

Yes. The tank can incorporate interfaces for the filler neck, fuel outlet, breather line, fuel cap, fuel-level sensor, and other required fuel-system components.

5. Can Renovator Appliances Ltd manufacture the mould and the plastic fuel tank?

Yes. Renovator Appliances Ltd can provide tooling and plastic moulding solutions for the Generator Plastic Fuel Tank according to the approved design, material requirements, production process, and manufacturing specifications.
