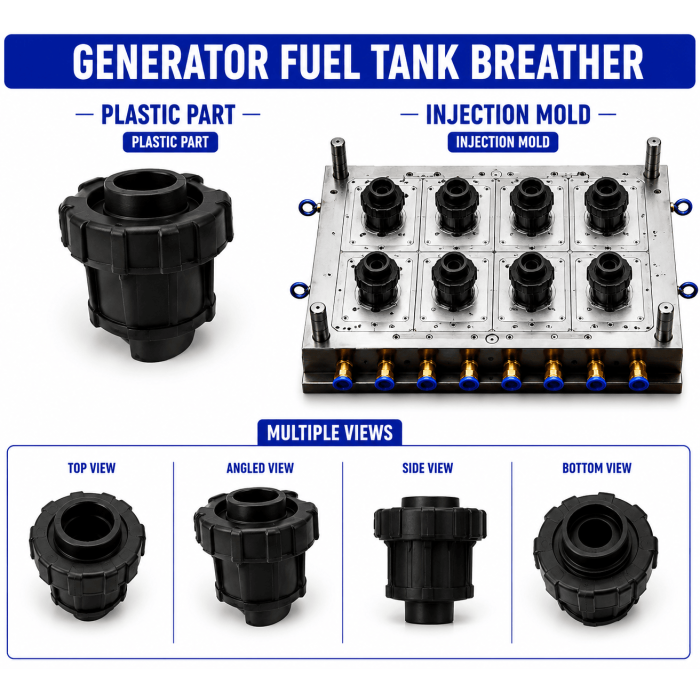

Generator Plastic Fuel Tank Breather Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision plastic injection moulds and moulded components for the Generator Plastic Fuel Tank Breather used in generator fuel-tank assemblies to support controlled air exchange between the fuel tank and the surrounding atmosphere. The breather helps accommodate pressure changes inside the tank as fuel is consumed or temperature conditions change while helping reduce direct exposure of the fuel system to contaminants.

The mould is developed according to the required breather dimensions, air passage geometry, connection diameter, mounting arrangement, vent opening, internal baffle or labyrinth structure, wall thickness, and available installation space. Depending on the fuel-tank design, the component can be configured as a compact vent fitting, hose-connected breather, threaded component, or integrated vent assembly.

Because the breather operates in a fuel-system environment, material selection and dimensional accuracy are important for maintaining the required air passage and compatibility with fuel vapours and operating temperatures.

Key Features

• Precision injection moulding for Generator Plastic Fuel Tank Breather

• Customized breather geometry according to fuel-tank design

• Controlled air and vapour passage

• Accurate vent opening dimensions

• Hose or pipe connection provision

• Optional barbed, stepped, threaded, or push-fit connection

• Compact structure for restricted installation spaces

• Internal baffle or labyrinth features where required

• Controlled wall thickness

• Accurate mounting and positioning features

• Smooth internal passage

• Suitable material selection for fuel-vapour exposure

• Consistent vent geometry for reliable assembly

• OEM and ODM customization

• Suitable for prototype, small-batch, and mass production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The fuel tank breather is designed according to the required vent flow path, connection diameter, tank interface, mounting method, operating temperature, fuel-vapour exposure, and available installation space. CAD modelling defines the external profile, internal passage, vent openings, retaining features, and any required baffles.

2. Plastic Mould Design

The injection mould is engineered to accurately form the breather's internal air passage and external connection features. Core geometry, parting lines, gates, runners, vents, cooling channels, and ejection arrangements are optimized to achieve consistent dimensions and reliable mould filling.

3. Mould Manufacturing

The mould is precision-machined using suitable mould steel such as P20, H13, or S136 Steel according to production volume, material requirements, dimensional accuracy, surface finish, and expected mould life. Critical core and cavity features are inspected during mould assembly.

4. Injection Moulding

The selected plastic material is melted and injected into the mould cavity under controlled processing conditions. Injection pressure, temperature, cooling, and cycle time are controlled to maintain accurate vent openings, internal passages, connection profiles, and wall thickness.

5. Finishing & Assembly Preparation

After moulding, breather components are trimmed and inspected for flash, gate marks, blocked passages, incomplete openings, and other defects. Components are prepared for installation with the fuel tank, breather hose, or other fuel-system components.

6. Quality Inspection

Finished breathers are checked for overall dimensions, vent opening size, internal passage continuity, connection diameter, mounting features, wall thickness, warpage, surface quality, and fitment with the specified fuel-tank assembly.

Raw Materials

Material selection should be validated against the actual fuel type, fuel vapour exposure, operating temperature, pressure conditions, environmental exposure, and applicable customer requirements. Conventional plastics should not be assumed to be suitable for fuel-system applications without compatibility validation.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Fuel Tank Breather for:

• Overall component dimensions

• Vent opening diameter and geometry

• Internal air-passage dimensions

• Passage continuity

• Connection diameter

• Hose insertion depth

• Barb or stepped connection profile

• Thread dimensions where applicable

• Mounting and retaining features

• Wall thickness consistency

• Internal baffle or labyrinth geometry where applicable

• Flash and gate marks

• Blocked or incomplete vent openings

• Sink marks and short shots

• Warpage and dimensional distortion

• Surface finish

• Hose or tank fitment

• Fuel-system assembly compatibility

• Material conformity

• Batch-to-batch dimensional consistency

Where specified, additional airflow, fitment, leakage, pressure, or fuel-vapour compatibility validation can be incorporated according to the customer's testing requirements.

Buyer Guide

When ordering a Generator Plastic Fuel Tank Breather Mould and Moulding Service, buyers should provide the fuel-tank connection dimensions, required vent flow path, vent opening size, hose or pipe diameter, connection type, mounting arrangement, fuel type, operating temperature, expected fuel-vapour exposure, pressure conditions, material requirements, colour, and production quantity.

A CAD drawing, 3D model, existing breather, fuel tank, hose sample, or complete fuel-system assembly can be used as the basis for mould development. The breather should be designed together with the tank and connected hose to ensure correct fitment, air passage, retention, and sealing where applicable.

For production planning, buyers should also specify dimensional tolerances, required mould life, cavity configuration, prototype requirements, expected production volume, and OEM/ODM requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd uses controlled injection moulding processes to produce fuel-tank breathers with consistent vent geometry, accurate connection dimensions, and repeatable production quality.

In-House Mould Manufacturing

In-house mould manufacturing enables precise control over internal cores, vent passages, cavity geometry, cooling, ejection, and critical connection features.

OEM & ODM Manufacturing

Custom Generator Plastic Fuel Tank Breather designs can be developed according to customer drawings, samples, fuel tanks, hoses, or complete generator fuel-system assemblies.

Quality Assurance

Inspection procedures focus on vent-passage accuracy, connection geometry, material conformity, dimensional consistency, moulding quality, and assembly compatibility.

Cost-Effective Manufacturing

Optimized mould design, suitable cavity configuration, material planning, and controlled injection moulding processes support economical production for prototype and high-volume requirements.

Frequently Asked Questions

1. What is a Generator Plastic Fuel Tank Breather?

It is a plastic vent component used with a generator fuel tank to allow controlled air and fuel-vapour movement and help accommodate pressure changes inside the tank.

2. Can the fuel tank breather be customized?

Yes. The breather can be customized according to vent dimensions, internal passage geometry, hose diameter, connection type, mounting arrangement, and available installation space.

3. Can the breather include internal baffles?

Yes. Internal baffles or labyrinth-style passages can be incorporated where the application requires a specific vent-path design or additional protection against direct fuel movement.

4. Which plastic material is suitable for a generator fuel tank breather?

Material selection depends on the fuel type, fuel-vapour exposure, temperature, mechanical requirements, and environmental conditions. Fuel-compatible engineering polymers should be validated before production.

5. Can Renovator Appliances Ltd manufacture both the mould and the fuel tank breather?

Yes. Renovator Appliances Ltd can provide mould design and manufacturing followed by injection moulding of the Generator Plastic Fuel Tank Breather according to the approved design and production specifications.
