Generator Plastic Fan Shroud Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

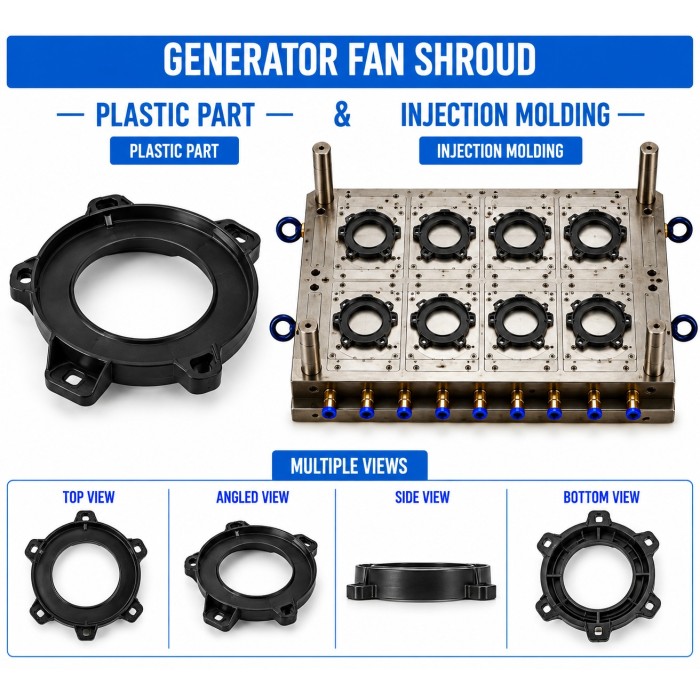

Renovator Appliances Ltd manufactures Generator Plastic Fan Shroud Mould and Moulding Service for generator engine cooling systems. The fan shroud surrounds the cooling fan and helps direct airflow through the intended cooling path, supporting effective heat removal from the engine and nearby components.

The component is developed according to the cooling fan diameter, blade clearance, airflow direction, engine mounting points, surrounding components, and available installation space. Accurate moulding is important for maintaining concentric fan clearance, mounting alignment, and a stable airflow passage without interference with rotating fan blades.

Key Features

• Application-specific shroud for generator cooling fan assemblies

• Accurate circular or application-specific fan opening

• Controlled clearance around rotating fan blades

• Proper airflow-guiding profile

• Precisely positioned mounting holes and bosses

• Reinforcing ribs for improved structural rigidity

• Controlled wall thickness for dimensional stability

• Provision for engine and surrounding component clearances

• Smooth internal surfaces to support consistent airflow

• Resistance considerations for heat, vibration, dust, and moisture

• Consistent fitment with the generator cooling assembly

• Suitable for OEM and bulk injection moulding production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The fan shroud is developed according to the cooling fan diameter, blade profile, required blade-to-shroud clearance, mounting locations, airflow direction, engine geometry, and adjacent component positions. The design also considers vibration and operating temperature within the generator enclosure.

2. Plastic Mould Design

The mould is designed around the shroud profile, fan opening, mounting bosses, ribs, airflow passages, and engine-side interfaces. Gate locations, parting lines, ejector positions, cooling channels, and draft angles are planned to maintain dimensional stability, particularly around the circular fan opening.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 according to production volume, plastic material, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are performed to achieve accurate cavity geometry.

4. Injection Moulding

The selected thermoplastic is processed under controlled injection temperature, pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to minimize warpage and maintain the required fan opening, mounting geometry, wall thickness, and airflow profile.

5. Finishing & Assembly Preparation

After moulding, gate remnants and flash are removed where required. The fan opening, mounting points, ribs, edges, and airflow surfaces are inspected before the shroud is prepared for installation around the generator cooling fan.

6. Quality Inspection

Production parts are inspected for overall dimensions, fan-opening diameter, concentricity, blade clearance, mounting-hole position, wall thickness, rib geometry, surface finish, and fitment with the engine and cooling fan assembly.

Raw Materials

Material selection should be based on actual engine-compartment temperature, continuous operating conditions, vibration, fan-generated airflow, dust exposure, and proximity to heat-producing components.

Quality Control

Renovator Appliances Ltd applies component-specific quality checks for Generator Plastic Fan Shroud Mould and Moulding Service, including:

• Overall shroud dimensions and profile inspection

• Fan-opening diameter and concentricity verification

• Fan blade clearance checking

• Mounting-hole and boss position inspection

• Wall-thickness consistency checking

• Rib and reinforcement inspection

• Airflow passage and opening inspection

• Warpage and distortion inspection

• Flash and short-shot inspection

• Surface-finish inspection

• Engine and fan assembly fitment testing

• Vibration and thermal validation where specified

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Fan Shroud Mould and Moulding Service, buyers should provide the cooling fan dimensions, blade profile, required fan clearance, engine mounting details, airflow direction, shroud dimensions, mounting-hole pattern, nearby component clearances, material preference, colour, surface finish, and production quantity.

The fan opening should be dimensionally controlled so that the shroud does not contact the rotating blades during operation. Thermal and vibration conditions should also be evaluated when selecting the plastic material and mould design.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent shroud geometry, fan clearance, and repeatable production quality.

In-House Mould Manufacturing

Mould development is coordinated with the fan dimensions, mounting arrangement, airflow path, and engine-side clearances.

OEM & ODM Manufacturing

Fan shrouds can be manufactured according to customer drawings, CAD models, physical samples, and generator-specific requirements.

Quality Assurance

Dimensional, visual, material, fitment, thermal, and application-specific inspections help maintain production consistency.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to component size, geometry, production volume, material selection, and required mould life.

Frequently Asked Questions

1. What is a Generator Plastic Fan Shroud used for?

It surrounds the generator cooling fan and helps guide airflow through the intended cooling path while maintaining clearance around the rotating fan blades.

2. What plastic materials can be used for a fan shroud?

PP, ABS, nylon, glass-filled nylon, and other engineering-grade plastics may be considered depending on the operating temperature, vibration, mechanical requirements, and installation environment.

3. How is fan-blade interference prevented?

The shroud is designed with controlled radial and axial clearance around the fan according to the actual fan geometry and operating conditions.

4. Can the fan shroud be manufactured according to an existing generator assembly?

Yes. The mould can be developed from customer drawings, CAD data, fan samples, shroud samples, or complete assembly specifications after engineering evaluation.

5. Can Generator Plastic Fan Shroud be produced in bulk?

Yes. The moulding process can be configured for OEM and bulk production, with cavity configuration selected according to component size, production volume, cycle time, and tooling requirements.
