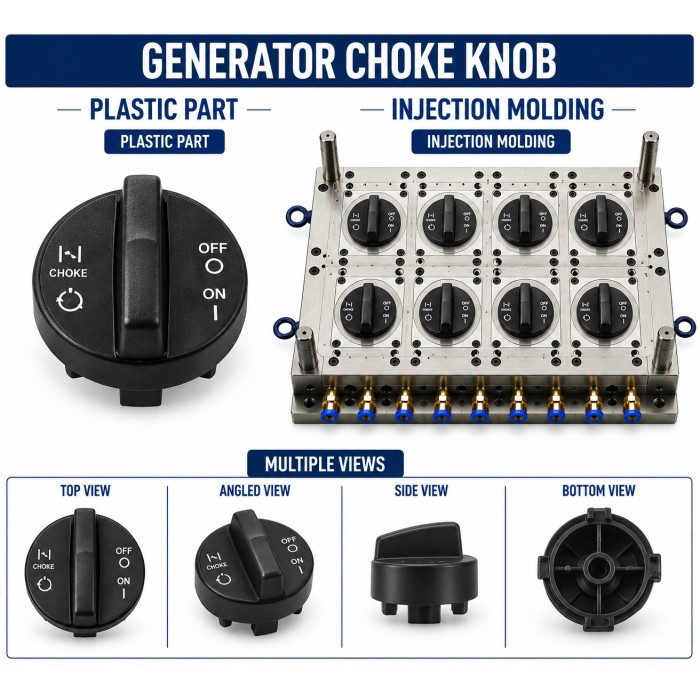

Generator Plastic Choke Knob Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Choke Knob Mould and Moulding Service for generator engine choke-control assemblies. The choke knob provides a user-operated gripping point for moving the choke mechanism between its required operating positions during engine starting and warm-up.

The component is designed with an accurate internal shaft or rod interface, suitable grip profile, controlled insertion depth, and secure retention features. The mould is developed to maintain consistent knob dimensions and alignment so that the knob transfers manual movement to the connected choke mechanism without excessive looseness or interference.

Key Features

• Application-specific knob for generator choke-control mechanisms

• Accurate internal shaft or rod socket geometry

• Secure fitment with the connected choke control

• Controlled insertion depth for reliable engagement

• Anti-rotation features for effective movement transfer

• Ergonomic grip profile for convenient manual operation

• Indicator marking or orientation feature where required

• Reinforced internal socket area for repeated operation

• Controlled wall thickness for dimensional stability

• Smooth and rounded external surfaces

• Consistent fitment across production batches

• Suitable for OEM and bulk injection moulding production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The choke knob is developed according to the connected shaft or rod diameter, shaft profile, insertion depth, required rotational or linear movement, grip dimensions, and available control-panel space. The internal interface is designed to provide secure engagement while allowing the required movement of the choke mechanism.

2. Plastic Mould Design

The mould is designed around the external grip profile, internal socket, anti-rotation feature, retaining arrangement, indicator position, draft angles, gate location, parting line, and ejector layout. Special attention is given to the internal socket because its dimensional accuracy directly affects fitment and control movement.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 depending on production quantity, material characteristics, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are used to achieve accurate cavity and core geometry.

4. Injection Moulding

The selected thermoplastic material is processed under controlled injection temperature, pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to maintain consistent socket dimensions and external grip geometry while minimizing flash, sink marks, warpage, short shots, and dimensional variation.

5. Finishing & Assembly Preparation

After moulding, gate remnants and flash are removed where required. The internal socket, retaining features, grip surface, and indicator markings are checked before the knob is prepared for installation on the generator choke-control mechanism.

6. Quality Inspection

Production parts are inspected for overall dimensions, socket diameter and profile, insertion depth, anti-rotation geometry, grip dimensions, indicator alignment, wall thickness, surface finish, and fitment with the corresponding choke shaft or rod.

Raw Materials

Material selection should be finalized according to operating temperature, control force, shaft friction, vibration, environmental exposure, and expected operating cycles.

Quality Control

Renovator Appliances Ltd applies component-specific quality checks for Generator Plastic Choke Knob Mould and Moulding Service, including:

• Overall knob dimensions and profile inspection

• Internal socket diameter and profile verification

• Shaft insertion-depth checking

• Anti-rotation feature inspection

• Retention and fitment verification

• Grip diameter and length measurement

• Indicator orientation and alignment checking

• Wall-thickness consistency inspection

• Flash and moulding-defect inspection

• Warpage and dimensional-stability checking

• Surface finish and edge inspection

• Functional movement validation with the choke mechanism

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Choke Knob Mould and Moulding Service, buyers should provide the choke shaft or rod dimensions, shaft profile, required insertion depth, movement type, knob dimensions, grip requirements, retention method, colour, surface finish, production quantity, and generator assembly details.

For reliable operation, the internal socket should be matched closely to the actual shaft geometry while allowing the required assembly tolerance. The knob should also provide sufficient retention to prevent unwanted loosening during repeated choke operation and generator vibration.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent knob dimensions and repeatable control-interface performance.

In-House Mould Manufacturing

Mould development is coordinated with the internal shaft interface, retention features, grip profile, and required control movement.

OEM & ODM Manufacturing

Components can be manufactured according to customer drawings, CAD models, physical samples, and generator-specific specifications.

Quality Assurance

Dimensional, visual, material, fitment, and functional movement checks help maintain consistent production quality.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to component complexity, production volume, material selection, and required mould life.

Frequently Asked Questions

1. What is a Generator Plastic Choke Knob used for?

It provides a manual gripping point for operating the choke mechanism of a compatible generator engine during starting and warm-up.

2. What plastic materials can be used for the choke knob?

PP, ABS, nylon, POM, glass-filled nylon, and other engineering-grade plastics can be considered according to the required strength, wear resistance, temperature performance, and dimensional stability.

3. Can the choke knob be manufactured according to an existing shaft?

Yes. The mould can be developed according to the shaft or rod dimensions, sample, CAD drawing, or technical specification after engineering evaluation.

4. How is the knob prevented from rotating or slipping on the shaft?

The internal socket can incorporate a keyed, D-shaped, splined, ribbed, or other application-specific interface to provide the required movement transfer and retention.

5. Can Generator Plastic Choke Knob be manufactured in bulk?

Yes. The moulding process can be configured for OEM and bulk production, with cavity configuration selected according to component geometry, production volume, and cycle-time requirements.
