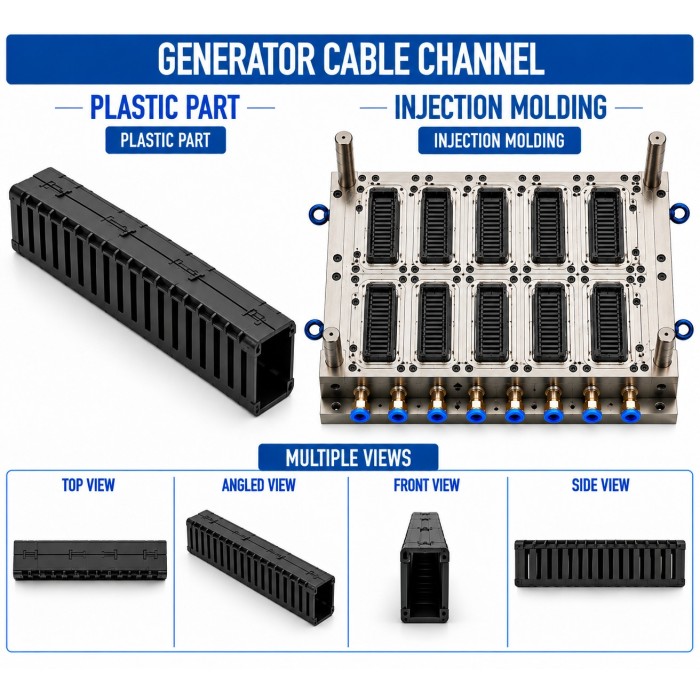

Generator Plastic Cable Channel Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Cable Channel Mould and Moulding Service for organizing, guiding, and protecting electrical cables and wire harnesses within generator assemblies. The cable channel provides a defined routing path that helps keep wiring separated from moving components, sharp edges, hot surfaces, and other internal parts.

The mould is developed according to the required cable bundle capacity, channel length, internal width and depth, mounting locations, cable-entry and exit positions, bend requirements, and available installation space. Injection moulding enables consistent channel geometry, mounting accuracy, smooth cable-contact surfaces, and repeatable OEM production.

Key Features

• Application-specific cable routing channel for generator assemblies

• Defined pathway for individual cables or bundled wire harnesses

• Controlled internal width and depth according to cable quantity

• Mounting holes, clips, tabs, or bosses as required

• Cable entry and exit openings designed around the wiring layout

• Smooth internal surfaces to minimize cable abrasion

• Rounded edges and corners for safer wire contact

• Ribbed construction where additional rigidity is required

• Compact design for installation within limited generator space

• Consistent dimensions for repeatable assembly

• Suitable for OEM and replacement-part manufacturing

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cable channel is designed according to the cable bundle diameter, number of wires, required routing direction, channel length, bend radius, mounting points, and surrounding generator components. Clearance from fans, belts, engine movement, exhaust areas, and sharp metal edges is considered during development.

2. Plastic Mould Design

The mould incorporates the channel profile, internal routing space, mounting features, cable-retention elements, entry and exit openings, ribs, draft angles, and parting-line arrangement. The cavity is designed to maintain consistent wall thickness and minimize deformation along longer channel sections.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 Steel according to production volume, required tool life, plastic material, and dimensional requirements. Precision machining is used to achieve accurate channel dimensions and mounting features.

4. Injection Moulding

The selected plastic is heated and injected into the mould cavity under controlled processing conditions. Filling, packing, cooling, and ejection parameters are optimized to reduce warpage, sink marks, short shots, and dimensional variation, particularly in long or ribbed channel sections.

5. Finishing & Assembly Preparation

After moulding, the cable channels are trimmed and inspected for flash, gate vestige, sharp edges, and surface defects. Mounting openings and cable-routing areas are checked before the components are prepared for generator assembly.

6. Quality Inspection

Finished channels are checked for overall length, internal width and depth, mounting-hole position, cable-entry geometry, wall thickness, straightness, surface finish, and fitment. Trial installation with the actual generator wiring harness can be performed to verify routing and clearance.

Raw Materials

The final material should be selected according to operating temperature, vibration, moisture, fuel/oil exposure, cable insulation compatibility, required rigidity, and applicable generator safety requirements.

Quality Control

Renovator Appliances Ltd performs dimensional and visual inspection of moulded cable channels. Key inspection points include:

• Overall channel length and profile

• Internal cable-routing width and depth

• Cable entry and exit dimensions

• Mounting-hole and clip positions

• Wall thickness consistency

• Straightness and dimensional stability

• Surface smoothness and edge condition

• Flash and moulding defect inspection

• Harness fitment and retention

• Clearance from surrounding generator components

• Batch-to-batch dimensional consistency

Buyer Guide

When sourcing Generator Plastic Cable Channel Mould and Moulding Service, buyers should provide the cable bundle diameter, number and type of wires, required channel length, mounting arrangement, cable-entry and exit locations, bend radius, available installation space, operating temperature, and expected production quantity.

The routing design should be checked against the complete generator layout to prevent contact with moving components, exhaust or other high-temperature areas, sharp metal edges, and sources of excessive vibration. The channel should guide the harness without creating excessive compression or bending.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent production of generator cable channels with accurate routing and mounting geometry.

In-House Mould Manufacturing

In-house tooling capabilities allow the mould to be developed around the actual cable layout, generator frame, and installation requirements.

OEM & ODM Manufacturing

Custom moulds and cable-management components can be developed from CAD drawings, physical samples, wiring layouts, or OEM specifications.

Quality Assurance

Dimensional inspection, fitment checks, surface inspection, and production monitoring help maintain consistent cable channel quality.

Cost-Effective Manufacturing

Optimized mould design and repeatable injection moulding processes support efficient production for prototype, replacement, and high-volume OEM requirements.

Frequently Asked Questions

1. What is a Generator Plastic Cable Channel used for?

It provides a defined pathway for routing and organizing electrical cables or wire harnesses inside a generator assembly.

2. Can the cable channel be customized according to the wiring layout?

Yes. The channel length, width, depth, mounting points, cable-entry openings, exit locations, and routing profile can be customized according to the generator's wiring arrangement.

3. Which plastic materials can be used for a generator cable channel?

PP, ABS, Nylon/PA, Glass-Filled Nylon, PC+ABS, and suitable flame-retardant plastics may be considered depending on mechanical, thermal, electrical, and environmental requirements.

4. Can the cable channel protect wires from generator vibration?

It can help control cable movement and maintain separation from surrounding components. The final design should be validated under the actual vibration conditions of the generator.

5. Can Renovator Appliances Ltd manufacture both the mould and the cable channels?

Yes. The service can include mould design and manufacturing followed by injection moulding of Generator Plastic Cable Channel components according to the required OEM specifications.
