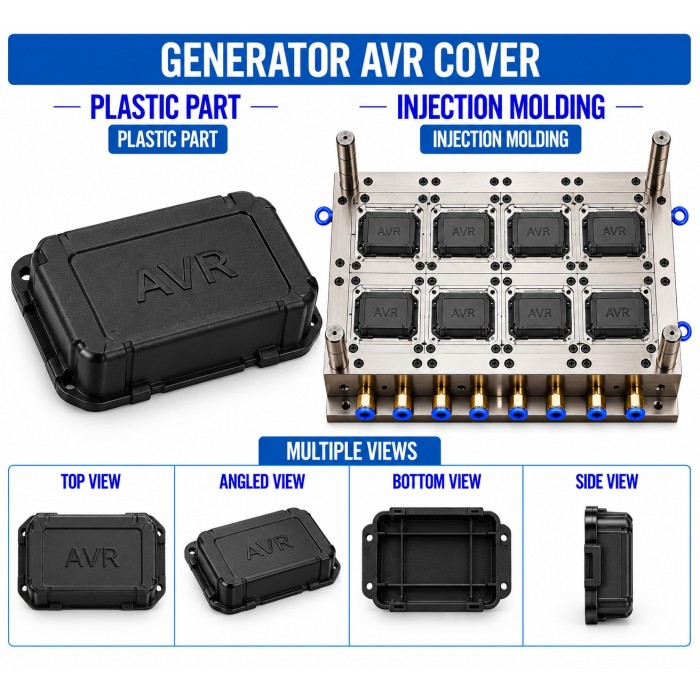

Generator Plastic AVR Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd provides Generator Plastic AVR Cover Mould and Moulding Service for manufacturing protective plastic covers used around Automatic Voltage Regulator (AVR) assemblies in generator electrical systems. The cover is designed to provide physical protection for the AVR and its associated wiring while maintaining suitable clearance for electrical connections, heat dissipation, mounting features, and surrounding components.

The mould is developed according to the AVR housing dimensions, terminal and connector positions, cable routing, mounting arrangement, ventilation requirements, and available installation space. Accurate mould design helps achieve consistent dimensions, reliable fitment, controlled wall thickness, and repeatable production quality.

Key Features

• Application-specific mould design for generator AVR covers

• Accurate fitment around the AVR assembly

• Proper clearance for terminals, connectors, and wiring

• Ventilation openings or airflow features where required

• Screw bosses, clips, snap-fits, and locating features as specified

• Reinforcing ribs for improved structural stability

• Controlled wall thickness for dimensional consistency

• Smooth edges around electrical access areas

• Protection against accidental contact with covered AVR components

• Suitable for OEM and customized generator electrical assemblies

Industrial Applications

Manufacturing Process

1. Product Design & Development

The AVR cover is developed according to the AVR housing dimensions, terminal positions, connector arrangement, mounting points, cable routing, heat exposure, and surrounding component clearances. Ventilation openings, cable passages, retaining clips, screw bosses, locating features, and other functional details are incorporated according to the generator design.

2. Plastic Mould Design

The injection mould is engineered around the AVR cover geometry with suitable parting lines, draft angles, gate locations, ejector positions, cooling channels, and cavity details. Internal clearances around electrical terminals and heat-producing areas are considered to support safe and accurate component fitment.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on the selected plastic, production quantity, surface-finish requirements, and expected tooling life. Precision machining is performed for the cavity, core, mounting bosses, cable openings, ventilation features, ribs, and retaining details.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Melt temperature, injection pressure, filling speed, holding pressure, cooling time, and cycle parameters are optimized according to the material and AVR-cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates or runners are removed as required and the cover is prepared for assembly. Terminal clearances, cable openings, mounting features, clips, ventilation openings, and cover edges are checked for clean and accurate formation.

6. Quality Inspection

Finished AVR covers are inspected for overall dimensions, AVR fitment, terminal and connector clearances, mounting positions, ventilation features, wall thickness, warpage, surface condition, and compatibility with the generator electrical assembly.

Raw Materials

The final plastic grade should be selected according to operating temperature, heat exposure, electrical requirements, vibration, moisture exposure, flame-resistance requirements, and applicable safety specifications.

Quality Control

Renovator Appliances Ltd checks moulded AVR covers for critical dimensional and functional characteristics, including:

• Overall cover dimensions

• AVR housing fitment

• Terminal and connector clearances

• Cable entry and routing openings

• Mounting-hole and boss positions

• Snap-fit and retaining-feature dimensions

• Ventilation opening size and position

• Wall thickness consistency

• Rib and reinforcement geometry

• Internal clearance from heat-producing components

• Warpage and deformation

• Surface finish and edge condition

• Flash, sink marks, short shots, and other moulding defects

• Compatibility with the complete generator electrical assembly

Application-specific insulation, temperature, fitment, or functional checks can be performed according to customer requirements.

Buyer Guide

Before ordering a Generator Plastic AVR Cover Mould and Moulding Service, buyers should provide a 3D CAD model, engineering drawing, sample part, or accurate dimensional specifications wherever available. Important requirements include:

• AVR housing dimensions

• Terminal and connector positions

• Cable diameter and routing

• Mounting arrangement

• Required internal clearance

• Ventilation or heat-dissipation requirements

• Plastic material and grade

• Flame-retardant requirements, where applicable

• Operating temperature

• Wall thickness

• Surface finish and colour

• Expected production quantity

Accurate AVR and surrounding electrical-component information helps ensure proper fitment and functional clearance.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of generator electrical protection components with controlled processing and repeatable dimensional quality.

In-House Mould Manufacturing

In-house tooling capabilities allow better control over cavity accuracy, ventilation features, cooling, ejection, mounting details, and component-specific mould geometry.

OEM & ODM Manufacturing

We support customized AVR covers based on customer drawings, CAD models, samples, electrical assembly requirements, and generator specifications.

Quality Assurance

Dimensional, visual, material, fitment, and application-specific checks help maintain consistent quality throughout production.

Cost-Effective Manufacturing

Optimized mould design, suitable cavity configuration, material selection, and controlled injection moulding processes support economical production for development and commercial quantities.

Frequently Asked Questions

1. What is a Generator Plastic AVR Cover?

It is a moulded plastic protective component designed to cover a generator's Automatic Voltage Regulator assembly while providing suitable clearance for electrical connections and surrounding components.

2. Can ventilation openings be incorporated into the AVR cover?

Yes. Ventilation slots or other airflow features can be incorporated when required by the thermal-management design of the AVR assembly.

3. Can cable and terminal clearances be customized?

Yes. Internal clearances, cable openings, connector access, and terminal positions can be customized according to the specific AVR and generator wiring arrangement.

4. Which plastics can be used for an AVR cover?

PP, ABS, PA/Nylon, PC+ABS, engineering-grade plastics, and suitable flame-retardant materials may be considered based on temperature, electrical, mechanical, and safety requirements.

5. Can the AVR cover be manufactured for a specific generator model?

Yes. The mould and moulded component can be developed according to the generator model, AVR dimensions, electrical layout, mounting arrangement, clearances, material specifications, and production requirements.
