Product Overview

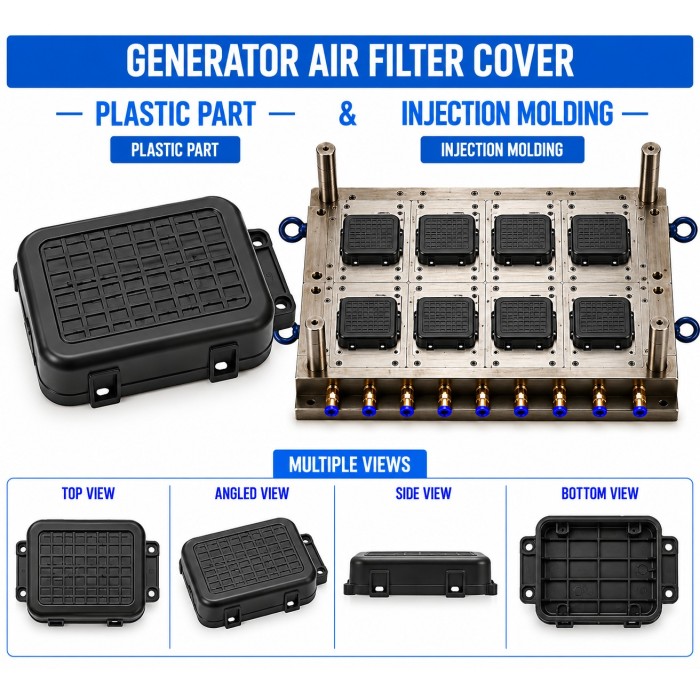

Renovator Appliances Ltd manufactures Generator Plastic Air Filter Cover Mould and Moulding Service for generator engine air filtration assemblies. The air filter cover closes the filter housing and helps protect the filter element from dust, dirt, moisture, and external contamination while maintaining the required airflow path.

The cover is designed according to the air filter housing profile, filter element dimensions, sealing arrangement, fastening method, air inlet or outlet configuration, and available engine-compartment space. Accurate moulding ensures proper cover-to-housing fitment and consistent sealing around the filter assembly.

Key Features

• Application-specific cover for generator air filter assemblies

• Accurate fitment with the air filter housing

• Controlled sealing or gasket-contact surface

• Proper clearance for the filter element

• Secure fastening, clipping, or locking arrangement

• Mounting bosses and locating features as required

• Reinforcing ribs for improved rigidity where required

• Controlled wall thickness for dimensional stability

• Provision for required airflow openings or ducts

• Protection against dust, moisture, and external contaminants

• Smooth internal surfaces around filter-contact areas

• Suitable for OEM and bulk injection moulding production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cover is developed according to the air filter housing dimensions, filter element clearance, sealing interface, fastening method, inlet or outlet requirements, and surrounding engine components. The design ensures that the cover can be installed and removed without damaging the filter or sealing interface.

2. Plastic Mould Design

The mould is designed around the cover profile, sealing surface, locating features, clips, screw bosses, ribs, openings, and required internal clearances. Parting-line placement, gate location, ejector positions, cooling channels, and draft angles are optimized to minimize warpage and maintain dimensional accuracy around the housing interface.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 depending on production volume, plastic material, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are carried out to achieve the required cavity accuracy.

4. Injection Moulding

The selected thermoplastic material is injection moulded under controlled temperature, pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to maintain the cover profile, sealing surface, mounting features, and filter clearance while reducing sink marks, flash, short shots, and warpage.

5. Finishing & Assembly Preparation

After moulding, gate remnants and flash are removed where required. The sealing surface, housing interface, fastening features, edges, and internal filter clearance areas are inspected before the cover is prepared for assembly.

6. Quality Inspection

Production parts are checked for overall dimensions, cover profile, housing fitment, sealing-surface geometry, mounting-hole or clip positions, filter clearance, wall thickness, surface finish, and dimensional consistency. Complete cover-to-housing fitment can also be validated.

Raw Materials

Material selection should be based on engine-compartment temperature, vibration, dust, moisture, chemical exposure, sealing requirements, and the complete air filtration assembly.

Quality Control

Renovator Appliances Ltd applies component-specific quality checks for Generator Plastic Air Filter Cover Mould and Moulding Service, including:

• Overall cover dimensions and profile inspection

• Housing interface measurement

• Sealing-surface geometry verification

• Filter-element clearance checking

• Mounting-hole, clip, and fastening-feature inspection

• Boss and rib dimensional verification

• Wall-thickness consistency checking

• Warpage and distortion inspection

• Flash, sink mark, and short-shot inspection

• Surface-finish inspection

• Cover-to-housing fitment testing

• Seal or gasket seating verification

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Air Filter Cover Mould and Moulding Service, buyers should provide the air filter housing sample or drawing, filter element dimensions, cover profile, sealing arrangement, gasket details, fastening method, mounting-hole pattern, required airflow openings, material preference, colour, surface finish, and production quantity.

The cover and housing should be designed as a matched assembly so that sealing pressure, filter clearance, fastening alignment, and service access are maintained consistently. The complete intake system should also be evaluated for airflow and contamination protection.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent cover dimensions, sealing interfaces, and repeatable production quality.

In-House Mould Manufacturing

Mould development is coordinated with the air filter housing, filter element, fastening arrangement, and sealing requirements.

OEM & ODM Manufacturing

Air filter covers can be manufactured according to customer drawings, CAD models, physical samples, and generator-specific specifications.

Quality Assurance

Dimensional, visual, material, fitment, and sealing-related inspections help maintain consistent cover production.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to component geometry, production volume, material selection, and required mould life.

Frequently Asked Questions

1. What is a Generator Plastic Air Filter Cover used for?

It closes the air filter housing and helps protect the filter element from dust, dirt, moisture, and external contamination.

2. What plastic materials can be used for an air filter cover?

PP, ABS, nylon, glass-filled nylon, and other engineering-grade plastics may be considered according to temperature, vibration, rigidity, dimensional stability, and environmental requirements.

3. Can the cover be manufactured according to an existing air filter housing?

Yes. The mould can be developed from a housing sample, CAD model, technical drawing, or complete air filter assembly after engineering evaluation.

4. How is proper sealing maintained between the cover and housing?

The cover can incorporate a controlled gasket or sealing interface, locating features, and fastening arrangement designed to maintain the required contact with the air filter housing.

5. Can Generator Plastic Air Filter Cover be produced in bulk?

Yes. The component can be manufactured for OEM and bulk production, with mould cavity configuration selected according to component geometry, production volume, cycle time, and tooling requirements.
